Epson AcuLaser C1750N User Manual

Loading Letterhead in the Priority Sheet Inserter (PSI)
Load the letterhead in the printer with the print side facing up. Ensure that the title on the letterhead
enters the printer first.
Manual Duplex Printing (Windows Print Driver Only)
Note:
When printing on curled paper, straighten the paper and then insert it into the feeder.
When you start manual duplex printing, the instruction window appears. Note that the window
cannot be reopened once it is closed. Do not close the window until duplex printing...

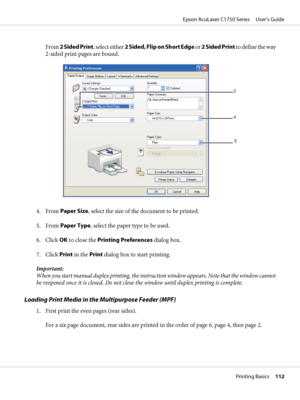

From 2 Sided Print, select either 2 Sided, Flip on Short Edge or 2 Sided Print to define the way
2-sided print pages are bound.
3
4
5
4. From Paper Size, select the size of the document to be printed.
5. From Paper Type, select the paper type to be used.
6. Click OK to close the Printing Preferences dialog box.
7. Click Print in the Print dialog box to start printing.
Important:
When you start manual duplex printing, the instruction window appears. Note that the window cannot
be reopened once it is...

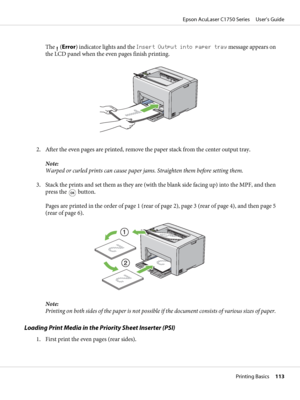

The  (Error) indicator lights and the Insert Output into paper tray message appears on
the LCD panel when the even pages finish printing.
2. After the even pages are printed, remove the paper stack from the center output tray.
Note:
Warped or curled prints can cause paper jams. Straighten them before setting them.
3. Stack the prints and set them as they are (with the blank side facing up) into the MPF, and then
press the
 button.
Pages are printed in the order of page 1 (rear of page 2), page 3 (rear...

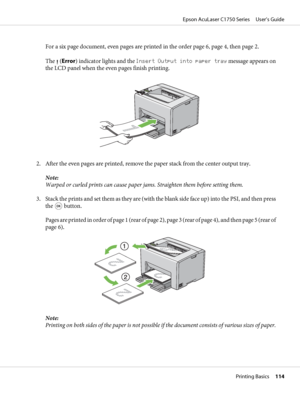

For a six page document, even pages are printed in the order page 6, page 4, then page 2.
The
 (Error) indicator lights and the Insert Output into paper tray message appears on
the LCD panel when the even pages finish printing.
2. After the even pages are printed, remove the paper stack from the center output tray.
Note:
Warped or curled prints can cause paper jams. Straighten them before setting them.
3. Stack the prints and set them as they are (with the blank side face up) into the PSI, and then...

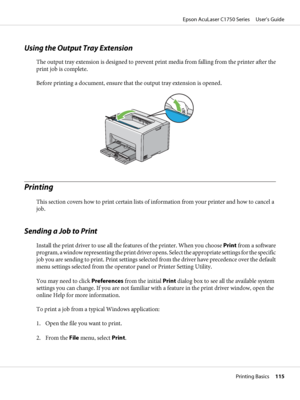

Using the Output Tray Extension
The output tray extension is designed to prevent print media from falling from the printer after the
print job is complete.
Before printing a document, ensure that the output tray extension is opened.
Printing
This section covers how to print certain lists of information from your printer and how to cancel a
job.
Sending a Job to Print
Install the print driver to use all the features of the printer. When you choose Print from a software
program, a window representing the...

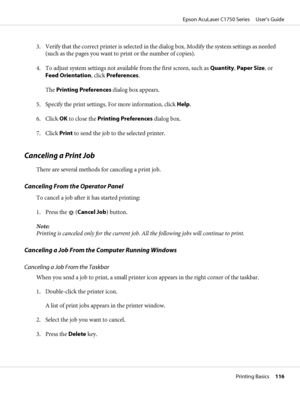

3. Verify that the correct printer is selected in the dialog box. Modify the system settings as needed
(such as the pages you want to print or the number of copies).
4. To adjust system settings not available from the first screen, such as Quantity, Paper Size, or
Feed Orientation, click Preferences.
The Printing Preferences dialog box appears.
5. Specify the print settings. For more information, click Help.
6. Click OK to close the Printing Preferences dialog box.
7. Click Print to send the job to the...

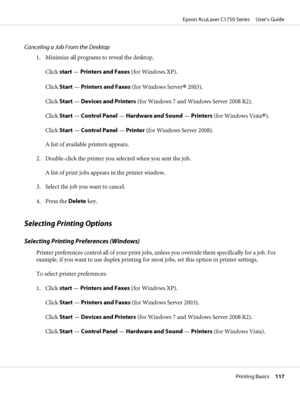

Canceling a Job From the Desktop
1. Minimize all programs to reveal the desktop.
Click start — Printers and Faxes (for Windows XP).
Click Start — Printers and Faxes (for Windows Server
®
 2003).
Click Start — Devices and Printers (for Windows 7 and Windows Server 2008 R2).
Click Start — Control Panel — Hardware and Sound — Printers (for Windows Vista
®).
Click Start — Control Panel — Printer (for Windows Server 2008).
A list of available printers appears.
2. Double-click the printer you selected when you...

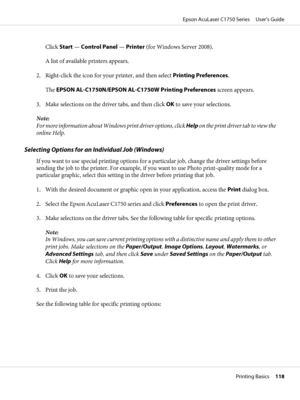

Click Start — Control Panel — Printer (for Windows Server 2008).
A list of available printers appears.
2. Right-click the icon for your printer, and then select Printing Preferences.
The EPSON AL-C1750N/EPSON AL-C1750W Printing Preferences screen appears.
3. Make selections on the driver tabs, and then click OK to save your selections.
Note:
For more information about Windows print driver options, click Help on the print driver tab to view the
online Help.
Selecting Options for an Individual Job...

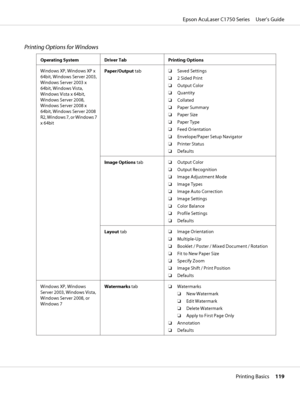

Printing Options for Windows
Operating System Driver Tab Printing Options
Windows XP, Windows XP x
64bit, Windows Server 2003,
Windows Server 2003 x
64bit, Windows Vista,
Windows Vista x 64bit,
Windows Server 2008,
Windows Server 2008 x
64bit, Windows Server 2008
R2, Windows 7, or Windows 7
x 64bitPaper/Output tab❏Saved Settings
❏2 Sided Print
❏Output Color
❏Quantity
❏Collated
❏Paper Summary
❏Paper Size
❏Paper Type
❏Feed Orientation
❏Envelope/Paper Setup Navigator
❏Printer Status
❏Defaults
Image Options...

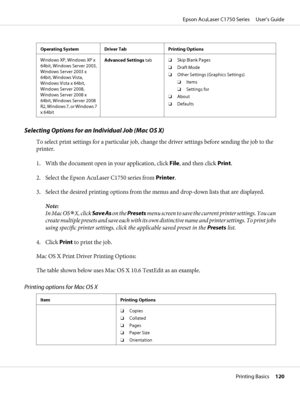

Operating System Driver Tab Printing Options
Windows XP, Windows XP x
64bit, Windows Server 2003,
Windows Server 2003 x
64bit, Windows Vista,
Windows Vista x 64bit,
Windows Server 2008,
Windows Server 2008 x
64bit, Windows Server 2008
R2, Windows 7, or Windows 7
x 64bitAdvanced Settings tab❏Skip Blank Pages
❏Draft Mode
❏Other Settings (Graphics Settings)
❏Items
❏Settings for
❏About
❏Defaults
Selecting Options for an Individual Job (Mac OS X)
To select print settings for a particular job, change the...
