Epson Projector Emp 7800 User Manual

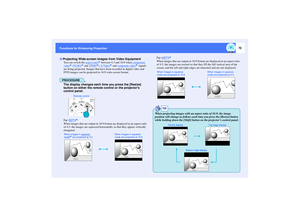

70
Functions for Enhancing Projection Functions for Enhancing Projection
You can switch the aspect ratio
 between 4:3 and 16:9 when component
video
 (YCbCr
 and YPbPr
), S-Video
 and composite video
 signals
are being projected. Images that have been recorded in digital video and
DVD images can be projected in 16:9 wide-screen format.
PROCEDUREThe display changes each time you press the [Resize]
button on either the remote control or the projectors
control panel.For SDTVWhen images that are output...

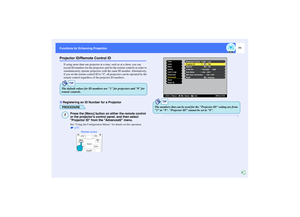

71
Functions for Enhancing Projection Functions for Enhancing ProjectionProjector ID/Remote Control ID
If using more than one projector at a time, such as at a show, you can
record ID numbers for the projectors and for the remote controls in order to
simultaneously operate projectors with the same ID number. Alternatively,
if you set the remote control ID to 0, all projectors can be operated by the
remote control regardless of the projector ID numbers.PROCEDURE
Press the [Menu] button on either the...

72

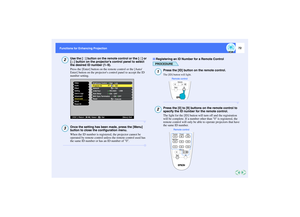

Functions for Enhancing Projection Functions for Enhancing Projection
Use the [ ] button on the remote control or the [ ] or
[ ] button on the projectors control panel to select
the desired ID number (1–9).
Press the [Enter] button on the remote control or the [Auto/
Enter] button on the projectors control panel to accept the ID
number setting.Once the setting has been made, press the [Menu]
button to close the configuration menu.
When the ID number is registered, the projector cannot be
operated...

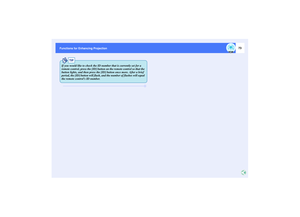

73
Functions for Enhancing Projection Functions for Enhancing Projection
TIP
If you would like to check the ID number that is currently set for a
remote control, press the [ID] button on the remote control so that the
button lights, and then press the [ID] button once more. After a brief
period, the [ID] button will flash, and the number of flashes will equal
the remote controls ID number.

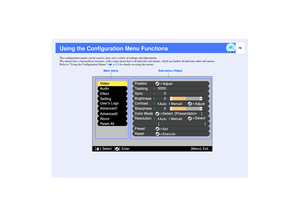

74
Using the Configuration Menu FunctionsThe configuration menus can be used to carry out a variety of settings and adjustments.
The menus have a hierarchical structure, with a main menu that is divided into sub-menus, which are further divided into other sub-menus.
Refer to Using the Configuration Menus (  p.92) for details on using the menus.
Video
Audio
Color Mode Position
Tracking
Sync.
Brightness
Contrast
Sharpness
:
: :
: :
Select 0000
     0
     0
    0
+
-+
-
Adjust
[Presentation    ]
:
:...

75

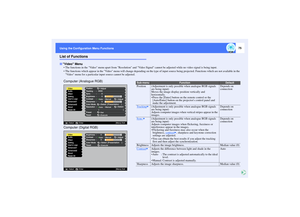

Using the Configuration Menu Functions Using the Configuration Menu FunctionsList of Functions
 The functions in the Video menu apart from Resolution and Video Signal cannot be adjusted while no video signal is being input.
 The functions which appear in the Video menu will change depending on the type of input source being projected. Functions which are not available in the
Video menu for a particular input source cannot be adjusted.Video MenuComputer (Analogue RGB)
Computer (Digital RGB)
Video...

76
Using the Configuration Menu Functions Using the Configuration Menu Functions
Color
ModeCorrects the vividness of the image colour. The settings can
be saved separately for each type of source (computer or
video source).
You can select from five different quality settings depending
on the surroundings.
Dynamic : Images are modulated and made fresher to
emphasise brightness.
Presentation : Brightness is emphasized. For presentations
in bright rooms.
Theatre : Movie images are optimised using...

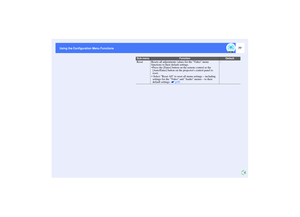

77
Using the Configuration Menu Functions Using the Configuration Menu Functions
Reset Resets all adjustments values for the Video menu
functions to their default settings.
 Press the [Enter] button on the remote control or the
[Auto/Enter] button on the projectors control panel to
reset.
  Select Reset All to reset all menu settings – including
settings for the Video and Audio menus – to their
default settings.   p.91-
Sub-menu
Function
Default

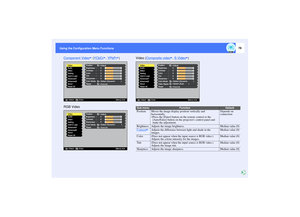

78
Using the Configuration Menu Functions Using the Configuration Menu Functions
Component Video
 (YCbCr
, YPbPr
)
RGB Video
Adjust
+
-+
-+
-+
-+
-
Video
Audio
Setting
Users Logo
Advanced1    0
  0
    0
    0     0
Color Mode Position
Brightness
Contrast
Color
Tint
Sharpness:
: :
: :
Select[Dynamic          ]
[Menu]: Exit
Reset
Execute
[    ]: Enter [    ]: Select
Reset All About Advanced2 Effect
Adjust
+
-+
-+
-
Video
Audio
Setting
Users Logo
Advanced1Color Mode Position
Brightness
Contrast
Sharpness:...

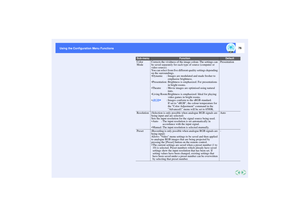

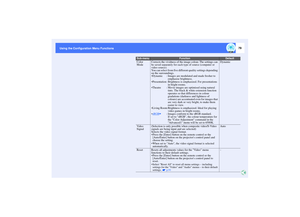

79
Using the Configuration Menu Functions Using the Configuration Menu Functions
Color
ModeCorrects the vividness of the image colour. The settings can
be saved separately for each type of source (computer or
video source).
You can select from five different quality settings depending
on the surroundings.
Dynamic : Images are modulated and made fresher to
emphasise brightness.
Presentation : Brightness is emphasized. For presentations
in bright rooms.
Theatre : Movie images are optimised using...
