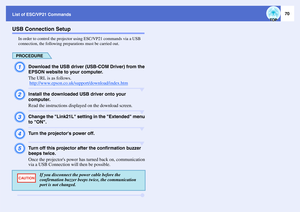

70 List of ESC/VP21 CommandsUSB Connection Setup In order to control the projector using ESC/VP21 commands via a USB connection, the following preparations must be carried out.PROCEDUREA Download the USB driver (USB-COM Driver) from the EPSON website to your computer. The URL is as follows. http://www.epson.co.uk/support/download/index.htm B Install the downloaded USB driver onto your computer. Read the instructions displayed on the download screen. C Change the Link21L setting in the Extended menu...
Page 72

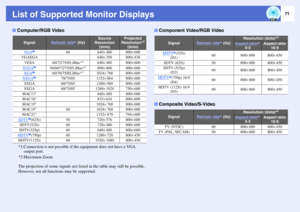

71 List of Supported Monitor Displays *1:Connection is not possible if the equipment does not have a VGA output port. *2:Maximum Zoom The projection of some signals not listed in the table may still be possible. However, not all functions may be supported.Computer/RGB Video Signal Refresh rate g (Hz) Source Resolution (dots) Projected Resolution* 2 (dots) VGA g 60 640×480 800×600 VGAEGA 640×350 800×438 VESA 60/72/75/85,iMac* 1 640×480 800×600 SVGA g 56/60/72/75/85,iMac* 1 800×600 800×600 XGA g...
Page 73

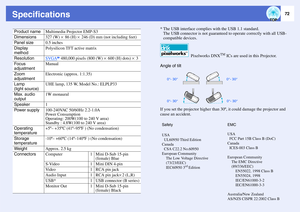

72 Specifications * The USB interface complies with the USB 1.1 standard. The USB connector is not guaranteed to operate correctly with all USB- compatible devices. Angle of tilt If you set the projector higher than 30º, it could damage the projector and cause an accident. Product name Multimedia Projector EMP-S3 Dimensions 327 (W) × 86 (H) × 246 (D) mm (not including feet) Panel size 0.5 inches Display method Polysilicon TFT active matrix Resolution SVGA g 480,000 pixels (800 (W) × 600 (H) dots) × 3...
Page 74

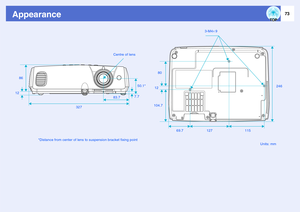

73 Appearance Units: mm 3-M4×9 115 127 80 12 104.7 32783.750.1* 7.7 86Centre of lens 69.7 12 *Distance from center of lens to suspension bracket fixing point246
Page 75

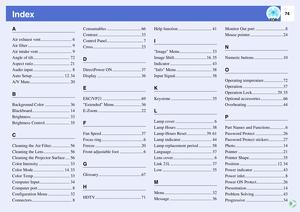

74 IndexAAir exhaust vent ............................. 6 Air filter ......................................... 9 Air intake vent ............................... 9 Angle of tilt.................................. 72 Aspect ratio .................................. 21 Audio input .................................... 8 Auto Setup .............................. 12 , 34 A/V Mute ..................................... 20 BBackground Color ....................... 36 Blackboard......................................
Page 76

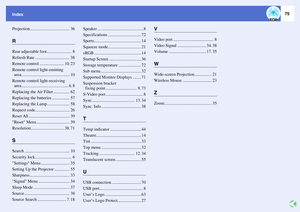

75 Index Projection..................................... 36RRear adjustable foot ....................... 8 Refresh Rate ................................ 38 Remote control ....................... 10 , 23 Remote control light-emitting area............................................. 10 Remote control light-receiving area............................................ 6, 8 Replacing the Air Filter ............... 62 Replacing the batteries ................ 57 Replacing the Lamp..................... 58...
Page 77

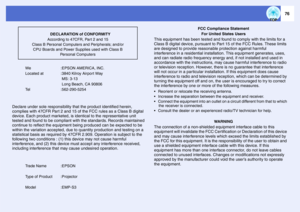

76 We :EPSON AMERICA, INC. Located at :3840 Kilroy Airport Way MS: 3-13 Long Beach, CA 90806 Tel :562-290-5254 Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due...
Page 78

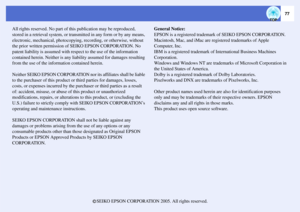

77 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information contained herein. Neither SEIKO EPSON CORPORATION...
