49
Appendices
Optional Accessories
The following optional accessories are available for purchase if required. This list of optional accessories is
current as of  February 2002. Details of accessories are subject to change without notice.
* A special method of installation is required in order to suspend the projector from the ceiling. Please
contact the place of purchase if you would like to use this installation method.
Spare lamp ELPLP17
Use as a replacement for spent lamps.
Portable screen (50 inch)...

50
List of Supported Signal Resolutions
Units: dots
Units: dots
Component Video Input
SignalResolution
Aspect
Normal
(Default)SqueezeZoomThroughSqueeze
Through
SDTV
(525i, 60Hz)640 × 480
640 × 360 (When zoomed)960 × 720
(4:3 aspect)1280 × 720
(16:9 aspect)1280 × 720
(16:9 aspect)590 × 442
(4:3 aspect)786 × 442
(16:9 aspect)
SDTV
(625i, 50Hz)768 × 576
768 × 432 (When zoomed)960 × 720
(4:3 aspect)1280 × 720
(16:9 aspect)1280 × 720
(16:9 aspect)700 × 525
(4:3 aspect)934 × 525
(16:9 aspect)
SDTV (525p)...

51
Appendices
Units: dots
* indicates resolutions that are compatible with both analog and digital formats.
*1 This connection is not possible for models which are not equipped with a VGA output port.
RGB Input
SignalResolution
Aspect
Normal
(Default)ZoomThrough
PC98 640 × 400 1152 × 720–640 × 400
EGA 640 × 350 1280 × 700–640 × 350
VGA
 60 *, SDTV
(525p)640 × 480
640 × 360 (When zoomed)960 × 720 1280 × 720 640 × 480
VESA
72/75/85, iMac*1640 × 480
640 × 360 (When zoomed)960 × 720 1280 × 720 640 × 480...

52
Specifications
Product nameEMP-TW100 multimedia projector
Dimensions348 (W) x 104 (H) x 274 (D) mm
(13.7 (W) x 4.09 (H) x 10.79 (D) inches) (not including protruding parts)
Panel size0.87 inches
Display methodPolysilicon TFT active matrix
Drive methodFull-line 12-phase block sequential writing
Resolution921,600 pixels (1280 (W) x 720 (H) dots) x 3
Focus adjustmentManual
Zoom adjustmentManual (approx. 1:1.35)
Lamp (light source)UHE lamp, 150 W, Model No.: ELPLP17
Power supply100 – 120 VAC, 2.7A
200
–...

53
Appendices
Safety
USA
UL1950 3rd Edition
Canada
CSA C22.2 No.950 -95 (cUL)
European Community
The Low Voltage Directive (73/23/EEC)
IEC60950 2nd Edition, +Amd.1, +Amd.2, +Amd.3, +Amd.4
EMC
USA
FCC 47CFR Part15B Class B (DoC)
Canada
ICES-003 Class B
European Community
The EMC Directive (89/336/EEC)
EN55022, 1998 Class B
EN55024, 1998
IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5,
IEC61000-4-6, IEC61000-4-8, IEC61000-4-11,
IEC61000-3-2, IEC61000-3-3
Australia/New Zealand
AS/NZS 3548:1995,...

54
Appearance
274
(10.79)
114
(4.49)
348
(13.7) 104
(4.09)
Units: mm (inch)

55
Appendices

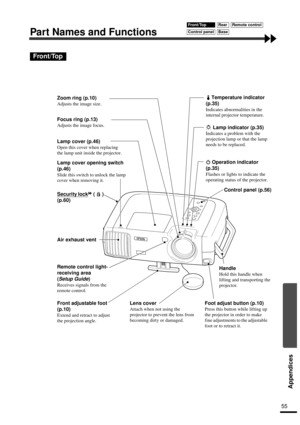

Part Names and Functions
Front/Top
Temperature indicator
(p.35)
Indicates abnormalities in the
internal projector temperature.
 Lamp indicator (p.35)
Indicates a problem with the
projection lamp or that the lamp
needs to be replaced.
 Operation indicator
(p.35)
Flashes or lights to indicate the
operating status of the projector.
Zoom ring (p.10)
Adjusts the image size.
Focus ring (p.13)
Adjusts the image focus.
Lamp cover (p.46)
Open this cover when replacing
the lamp unit inside the...

Part Names and Functions
56

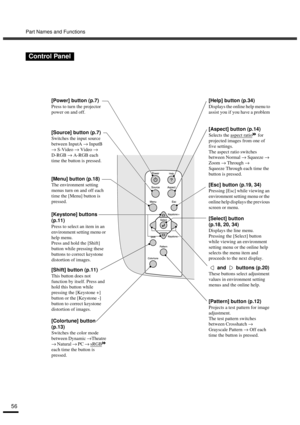

Control Panel
[Power] button (p.7)
Press to turn the projector
power on and off.
[Source] button (p.7)
Switches the input source
between InputA
→ InputB
→ S-Video
→ Video
→
D-RGB
→ A-RGB each
time the button is pressed.
[Menu] button (p.18)
The environment setting
menus turn on and off each
time the [Menu] button is
pressed.
[Keystone] buttons
(p.11)
Press to select an item in an
environment setting menu or
help menu.
Press and hold the [Shift]
button while...

57
Appendices

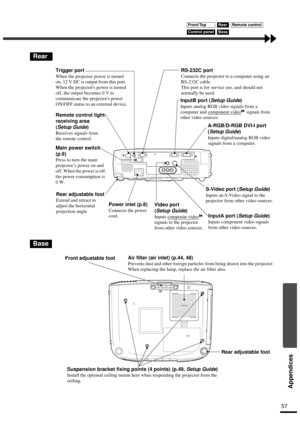

Rear
Base
Trigger port
When the projector power is turned
on, 12 V DC is output from this port.
When the projectors power is turned
off, the output becomes 0 V to
communicate the projectors power
ON/OFF status to an external device.
Remote control light-
receiving area
(
Setup Guide)
Receives signals from
the remote control.
Main power switch
(p.6)
Press to turn the main
projector’s power on and
off. When the power is off,
the power consumption is
0 W.
Rear adjustable foot
Extend...

Part Names and Functions
58

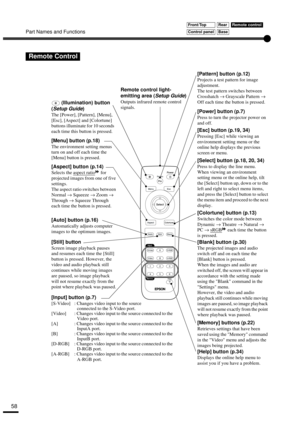

Remote Control
Remote control light-
emitting area (
Setup Guide)
Outputs infrared remote control
signals.
[Pattern] button (p.12)
Projects a test pattern for image
adjustment.
The test pattern switches between
Crosshatch
→ Grayscale Pattern
→
Off each time the button is pressed.
[Esc] button (p.19, 34)
Pressing [Esc] while viewing an
environment setting menu or the
online help displays the previous
screen or menu.
[Select] button (p.18, 20, 34)
Press to display the...
