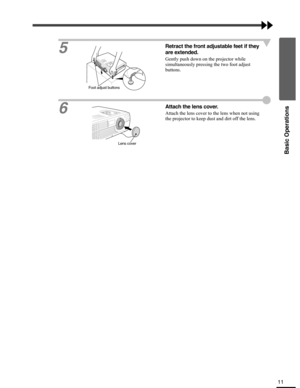

5Retract the front adjustable feet if they
are extended.
Gently push down on the projector while
simultaneously pressing the two foot adjust
buttons.
6Attach the lens cover.
Attach the lens cover to the lens when not using
the projector to keep dust and dirt off the lens.
Foot adjust buttons
Lens cover

Adjusting the Screen Image
12
Adjusting the Screen Image

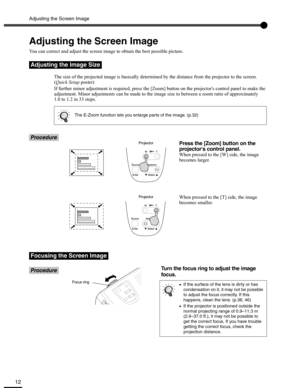

You can correct and adjust the screen image to obtain the best possible picture.
The size of the projected image is basically determined by the distance from the projector to the screen.
(Quick Setup poster)
If further minor adjustment is required, press the [Zoom] button on the projectors control panel to make the
adjustment. Minor adjustments can be made to the image size to between a zoom ratio of approximately
1.0 to 1.2 in 33 steps....

13
Basic Operations

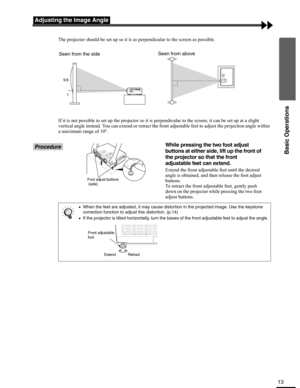

Adjusting the Image Angle
The projector should be set up so it is as perpendicular to the screen as possible.
If it is not possible to set up the projector so it is perpendicular to the screen, it can be set up at a slight
vertical angle instead. You can extend or retract the front adjustable feet to adjust the projection angle within
a maximum range of 10º.
ProcedureWhile pressing the two foot adjust
buttons at either side, lift up the front of
the projector so that the front...

Adjusting the Screen Image
14

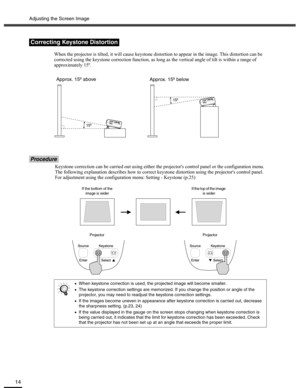

When the projector is tilted, it will cause keystone distortion to appear in the image. This distortion can be
corrected using the keystone correction function, as long as the vertical angle of tilt is within a range of
approximately 15º.
Procedure
Correcting Keystone Distortion
•When keystone correction is used, the projected image will become smaller.
•The keystone correction settings are memorized. If you change the position or angle of the
projector, you may need to...

15
Basic Operations

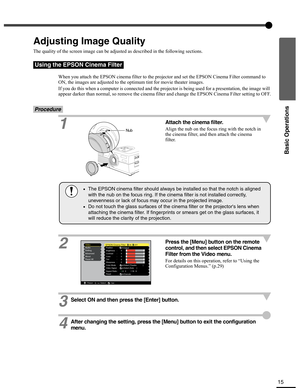

Adjusting Image Quality
The quality of the screen image can be adjusted as described in the following sections.
When you attach the EPSON cinema filter to the projector and set the EPSON Cinema Filter command to
ON, the images are adjusted to the optimum tint for movie theater images.
If you do this when a computer is connected and the projector is being used for a presentation, the image will
appear darker than normal, so remove the cinema filter and change the EPSON Cinema Filter...

16

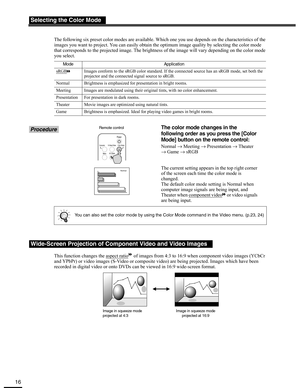

Selecting the Color Mode
The following six preset color modes are available. Which one you use depends on the characteristics of the
images you want to project. You can easily obtain the optimum image quality by selecting the color mode
that corresponds to the projected image. The brightness of the image will vary depending on the color mode
you select.
ProcedureThe color mode changes in the
following order as you press the [Color
Mode] button on the remote control:
Normal → Meeting →...

17

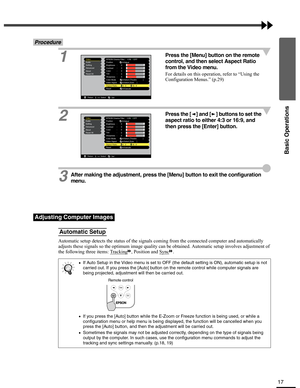

Basic Operations
Procedure
1
Press the [Menu] button on the remote
control, and then select Aspect Ratio
from the Video menu.
For details on this operation, refer to “Using the
Configuration Menus.” (p.29)
2
Press the [ ] and [ ] buttons to set the
aspect ratio to either 4:3 or 16:9, and
then press the [Enter] button.
3
After making the adjustment, press the [Menu] button to exit the configuration
menu.
Automatic setup detects the status of the signals coming from the connected computer and...

Adjusting Image Quality
18

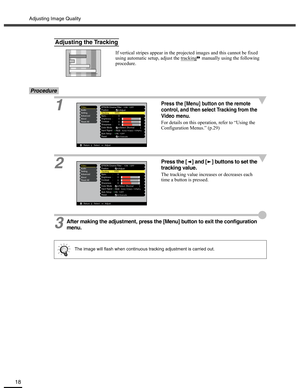

If vertical stripes appear in the projected images and this cannot be fixed
using automatic setup, adjust the tracking
 manually using the following
procedure.
Procedure
1
Press the [Menu] button on the remote
control, and then select Tracking from the
Video menu.
For details on this operation, refer to “Using the
Configuration Menus.” (p.29)
2Press the [ ] and [ ] buttons to set the
tracking value.
The tracking value increases or decreases each
time a button is...

19
Basic Operations

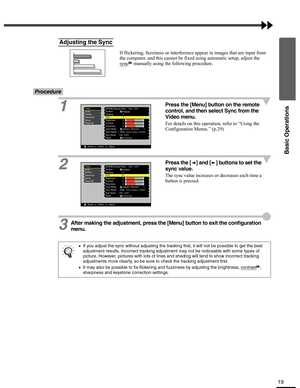

If flickering, fuzziness or interference appear in images that are input from
the computer, and this cannot be fixed using automatic setup, adjust the
sync
 manually using the following procedure.
Procedure
1
Press the [Menu] button on the remote
control, and then select Sync from the
Video menu.
For details on this operation, refer to “Using the
Configuration Menus.” (p.29)
2
Press the [ ] and [ ] buttons to set the
sync value.
The sync value increases or decreases each time a...
