Epson Stylus Pro 11880 User Manual

-171

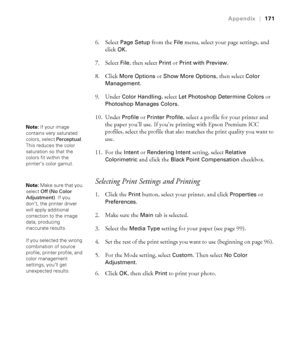

Appendix|171
6. Select Page Setup from the File menu, select your page settings, and
click
OK.
7. Select
File, then select Print or Print with Preview.
8. Click
More Options or Show More Options, then select Color
Management
.
9. Under
Color Handling, select Let Photoshop Determine Colors or
Photoshop Manages Colors.
10. Under
Profile or Printer Profile, select a profile for your printer and
the paper you’ll use. If you’re printing with Epson Premium ICC
profiles, select the profile that...

-172
172|Appendix

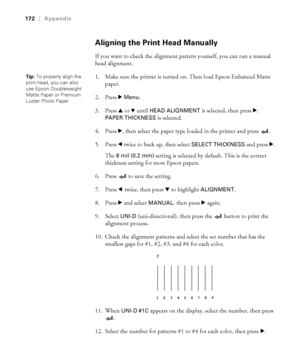

Aligning the Print Head Manually
If you want to check the alignment pattern yourself, you can run a manual
head alignment.
1. Make sure the printer is turned on. Then load Epson Enhanced Matte
paper.
2. Press r
Menu.
3. Press u or
d until HEAD ALIGNMENT is selected, then press r.
PAPER THICKNESS is selected.
4. Press r, then select the paper type loaded in the printer and press  .
5. Press l twice to back up, then select
SELECT THICKNESS and press r.
The
8 mil (0.2 mm) setting...

-173

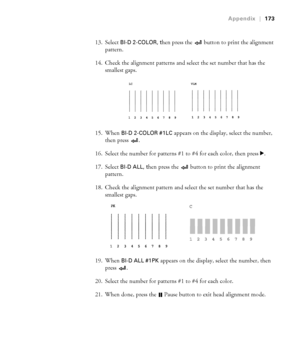

Appendix|173
13. Select BI-D 2-COLOR, then press the   button to print the alignment
pattern.
14. Check the alignment patterns and select the set number that has the
smallest gaps.
15. When
BI-D 2-COLOR #1LC appears on the display, select the number,
then press  .
16. Select the number for patterns #1 to #4 for each color, then press r.
17. Select
BI-D ALL, then press the   button to print the alignment
pattern.
18. Check the alignment pattern and select the set number that has the
smallest...

-174
174|Appendix


-175

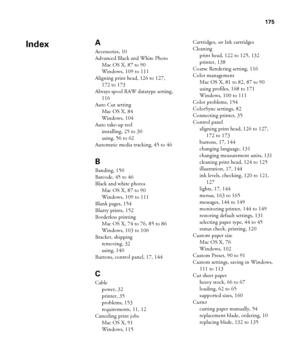

175
A
Accessories, 10
Advanced Black and White Photo
Mac OS X, 87 to 90
Windows, 109 to 111
Aligning print head, 126 to 127,
172 to 173
Always spool RAW datatype setting,
116
Auto Cut setting
Mac OS X, 84
Windows, 104
Auto take-up reel
installing, 25 to 30
using, 56 to 62
Automatic media tracking, 45 to 46
B
Banding, 150
Barcode, 45 to 46
Black and white photos
Mac OS X, 87 to 90
Windows, 109 to 111
Blank pages, 154
Blurry prints, 152
Borderless printing
Mac OS X, 74 to 76, 85 to 86
Windows, 103...

-176
176|Index
D
Date and time setting, 130
Deleting print jobs
Mac OS X, 91
Windows, 115
Depth of printer, 159
Diagnosing problems, 143
Dimensions of printer, 159
Documentation, how to use, 9
E
Electrical specifications, 159
Energy consumption, 159
Environmental specifications, 159
Epson
accessories, 10
help, 10 to 11
media, 41 to 43, 167
Preferred Limited Warranty Plan,
10
EpsonNet Config, 40
Error messages, 144 to 149
Error notification, Windows, 117
Ethernet cable
connecting, 35
system requirements,...

-177

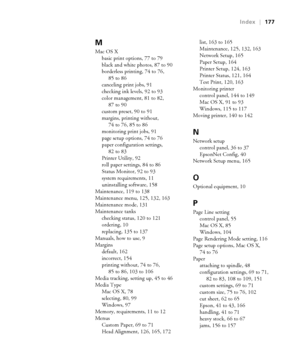

Index|177
M
Mac OS X
basic print options, 77 to 79
black and white photos, 87 to 90
borderless printing, 74 to 76,
85 to 86
canceling print jobs, 91
checking ink levels, 92 to 93
color management, 81 to 82,
87 to 90
custom preset, 90 to 91
margins, printing without,
74 to 76, 85 to 86
monitoring print jobs, 91
page setup options, 74 to 76
paper configuration settings,
82 to 83
Printer Utility, 92
roll paper settings, 84 to 86
Status Monitor, 92 to 93
system requirements, 11
uninstalling...

-178

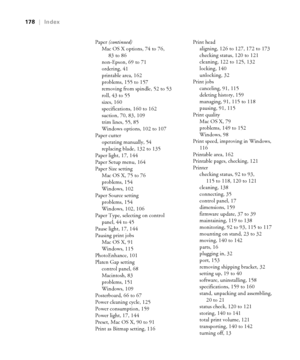

178|Index
Paper (continued)
Mac OS X options, 74 to 76,
83 to 86
non-Epson, 69 to 71
ordering, 41
printable area, 162
problems, 155 to 157
removing from spindle, 52 to 53
roll, 43 to 55
sizes, 160
specifications, 160 to 162
suction, 70, 83, 109
trim lines, 55, 85
Windows options, 102 to 107
Paper cutter
operating manually, 54
replacing blade, 132 to 135
Paper light, 17, 144
Paper Setup menu, 164
Paper Size setting
Mac OS X, 75 to 76
problems, 154
Windows, 102
Paper Source setting
problems, 154...

-179

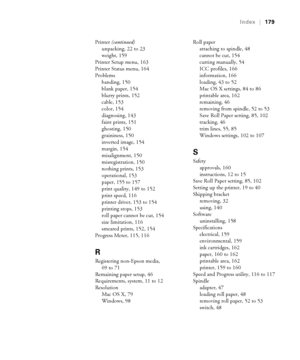

Index|179
Printer (continued)
unpacking, 22 to 23
weight, 159
Printer Setup menu, 163
Printer Status menu, 164
Problems
banding, 150
blank paper, 154
blurry prints, 152
cable, 153
color, 154
diagnosing, 143
faint prints, 151
ghosting, 150
graininess, 150
inverted image, 154
margin, 154
misalignment, 150
misregistration, 150
nothing prints, 153
operational, 153
paper, 155 to 157
print quality, 149 to 152
print speed, 116
printer driver, 153 to 154
printing stops, 153
roll paper cannot be cut, 154...

-180

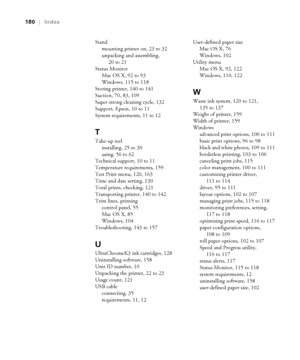

180|Index
Stand
mounting printer on, 23 to 32
unpacking and assembling,
20 to 21
Status Monitor
Mac OS X, 92 to 93
Windows, 115 to 118
Storing printer, 140 to 141
Suction, 70, 83, 109
Super strong cleaning cycle, 132
Support, Epson, 10 to 11
System requirements, 11 to 12
T
Take-up reel
installing, 25 to 30
using, 56 to 62
Technical support, 10 to 11
Temperature requirements, 159
Test Print menu, 120, 163
Time and date setting, 130
Total prints, checking, 121
Transporting printer, 140 to 142
Trim...
