Page 41

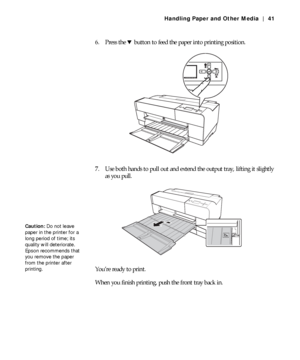

2-41
Handling Paper and Other Media | 41
6. Press the d button to feed the paper into printing position.
7. Use both hands to pull out and extend the output tray, lifting it slightly
as you pull.
You’re ready to print.
When you finish printing, push the front tray back in.
Caution: Do not leave
paper in the printer for a
long period of time; its
quality will deteriorate.
Epson recommends that
you remove the paper
from the printer after
printing.


Page 42

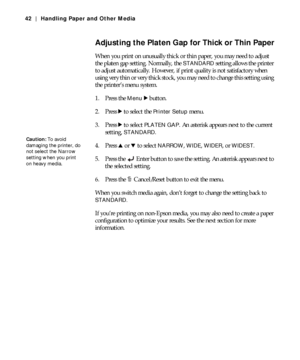

2-42
42 | Handling Paper and Other Media
Adjusting the Platen Gap for Thick or Thin Paper
When you print on unusually thick or thin paper, you may need to adjust
the platen gap setting. Normally, the
STANDARD setting allows the printer
to adjust automatically. However, if print quality is not satisfactory when
using very thin or very thick stock, you may need to change this setting using
the printer’s menu system.
1. Press the
Menu r button.
2. Press r
 to select the Printer Setup menu.
3. Press r...

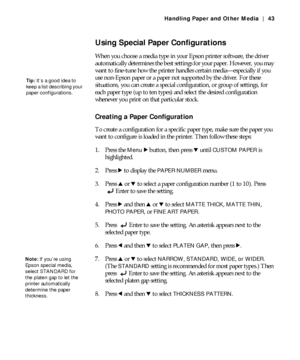

Page 43

2-43
Handling Paper and Other Media | 43
Using Special Paper Configurations
When you choose a media type in your Epson printer software, the driver
automatically determines the best settings for your paper. However, you may
want to fine-tune how the printer handles certain media—especially if you
use non-Epson paper or a paper not supported by the driver. For these
situations, you can create a special configuration, or group of settings, for
each paper type (up to ten types) and select the desired...

Page 44

2-44

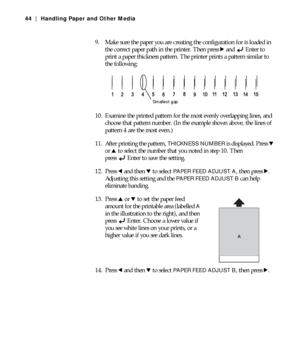

44 | Handling Paper and Other Media
9. Make sure the paper you are creating the configuration for is loaded in
the correct paper path in the printer. Then press r and  Enter to
print a paper thickness pattern. The printer prints a pattern similar to
the following:
10. Examine the printed pattern for the most evenly overlapping lines, and
choose that pattern number. (In the example shown above, the lines of
pattern 4 are the most even.)
11. After printing the pattern,
THICKNESS NUMBER is...

Page 45

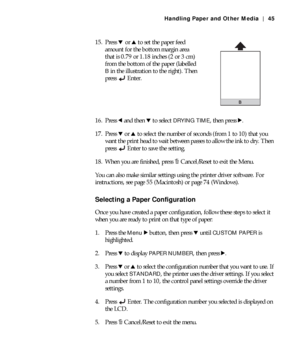

2-45
Handling Paper and Other Media | 45
15. Press d or u to set the paper feed
amount for the bottom margin area
that is 0.79 or 1.18 inches (2 or 3 cm)
from the bottom of the paper (labelled
Bin the illustration to the right). Then
press Enter.
16. Press l and then d to select
DRYING TIME, then press r.
17. Press d oru to select the number of seconds (from 1 to 10) that you
want the print head to wait between passes to allow the ink to dry. Then
press  Enter to save the setting.
18. When you...

Page 46

2-46
46 | Handling Paper and Other Media


Page 47

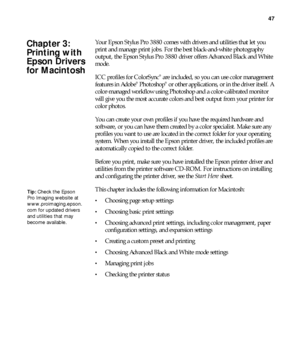

47
47
Your Epson Stylus Pro 3880 comes with drivers and utilities that let you
print and manage print jobs. For the best black-and-white photography
output, the Epson Stylus Pro 3880 driver offers Advanced Black and White
mode.
ICC profiles for ColorSync
® are included, so you can use color management
features in Adobe® Photoshop® or other applications, or in the driver itself. A
color-managed workflow using Photoshop and a color-calibrated monitor
will give you the most accurate colors and best...

Page 48

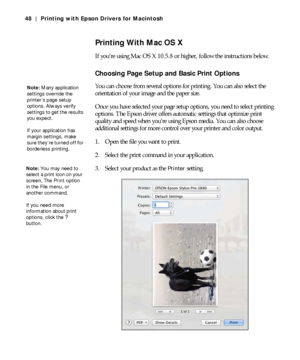

3-48
48 | Printing with Epson Drivers for Macintosh
Printing With Mac OS X
If you’re using Mac OS X 10.5.8 or higher, follow the instructions below.
Choosing Page Setup and Basic Print Options
You can choose from several options for printing. You can also select the
orientation of your image and the paper size.
Once you have selected your page setup options, you need to select printing
options. The Epson driver offers automatic settings that optimize print
quality and speed when you’re using Epson...

Page 49

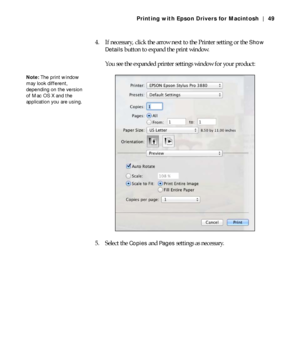

3-49
Printing with Epson Drivers for Macintosh | 49
4. If necessary, click the arrow next to the Printer setting or the Show
Details
 button to expand the print window.
You see the expanded printer settings window for your product:
5. Select the
Copies and Pages settings as necessary.
Note: The print window
may look different,
depending on the version
of Mac OS X and the
application you are using.


Page 50

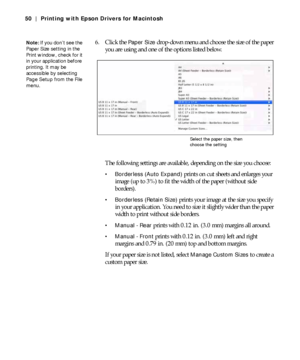

3-50
50 | Printing with Epson Drivers for Macintosh
6. Click the Paper Size drop-down menu and choose the size of the paper
you are using and one of the options listed below.
The following settings are available, depending on the size you choose:
 Borderless (Auto Expand) prints on cut sheets and enlarges your
image (up to 3%) to fit the width of the paper (without side
borders).
 Borderless (Retain Size) prints your image at the size you specify
in your application. You need to size it slightly...
