Epson Stylus Pro 4450 User Manual

9
English

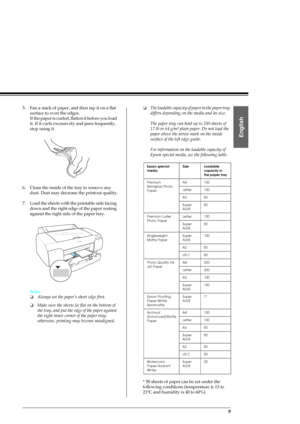

5. Fan a stack of paper, and then tap it on a flat
surface to even the edges.
If the paper is curled, flatten it before you load
it. If it curls excessively and jams frequently,
stop using it.
6. Clean the inside of the tray to remove any
dust. Dust may decrease the printout quality.
7. Load the sheets with the printable side facing
down and the right edge of the paper resting
against the right side of the paper tray.
Note:
❏Always set the paper’s short edge first.
❏Make sure the sheets...

10

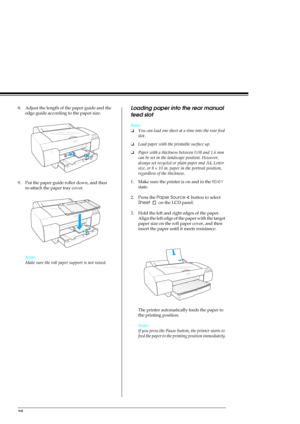

8. Adjust the length of the paper guide and the
edge guide according to the paper size.
9. Put the paper guide roller down, and then
re-attach the paper tray cover.
Note:
Make sure the roll paper support is not raised.Loading paper into the rear manual
feed slot
Note:
❏You can load one sheet at a time into the rear feed
slot.
❏Load paper with the printable surface up.
❏Paper with a thickness between 0.08 and 1.6 mm
can be set in the landscape position. However,
always set recycled or plain paper...

11
English

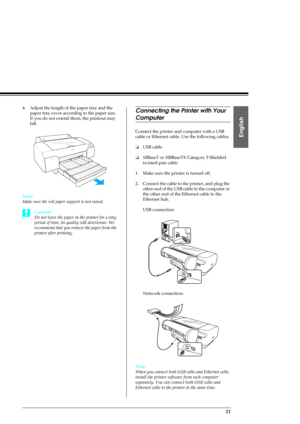

4. Adjust the length of the paper tray and the
paper tray cover according to the paper size.
If you do not extend them, the printout may
fall.
Note:
Make sure the roll paper support is not raised.
cCaution:
Do not leave the paper in the printer for a long
period of time; its quality will deteriorate. We
recommend that you remove the paper from the
printer after printing.
Connecting the Printer with Your
Computer
Connect the printer and computer with a USB
cable or Ethernet cable. Use...

12

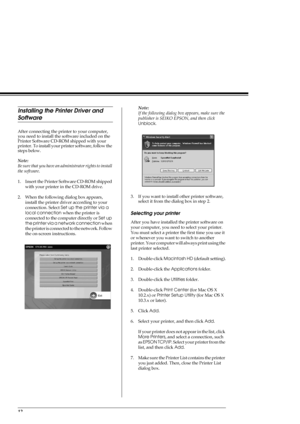

Installing the Printer Driver and
Software
After connecting the printer to your computer,
you need to install the software included on the
Printer Software CD-ROM shipped with your
printer.
To install your printer software, follow the
steps below.
Note:
Be sure that you have an administrator rights to install
the software.
1. Insert the Printer Software CD-ROM shipped
with your printer in the CD-ROM drive.
2. When the following dialog box appears,
install the printer driver according to your...

13
English

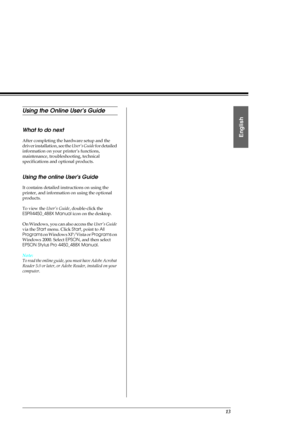

Using the Online User’s Guide
What to do next
After completing the hardware setup and the
driver installation, see the User’s Guide for detailed
information on your printer’s functions,
maintenance, troubleshooting, technical
specifications and optional products.
Using the online User’s Guide
It contains detailed instructions on using the
printer, and information on using the optional
products.
To view the User’s Guide, double-click the
ESPR4450_488X Manual icon on the desktop.
On...
