Page 201
![Page 201
HINT
When the Timeout for Manual Feeding is enabled, the scanner waits for th\
e document to be
loaded within the specified timeout period, even if scanning starts with\
no document loaded in
the ADF paper chute.
All Rights Reserved. Copyright 2007 © PFU LIMITED](http://img.usermanuals.tech/thumb/26/59946/w300_fujitsu-fi6130-operators-manual-1488462901_d-200.png "Page 201
HINT
When the Timeout for Manual Feeding is enabled, the scanner waits for th\
e document to be
loaded within the specified timeout period, even if scanning starts with\
no document loaded in
the ADF paper chute.
All Rights Reserved. Copyright 2007 © PFU LIMITED")
HINT When the Timeout for Manual Feeding is enabled, the scanner waits for th\ e document to be loaded within the specified timeout period, even if scanning starts with\ no document loaded in the ADF paper chute. All Rights Reserved. Copyright 2007 © PFU LIMITED
Page 202

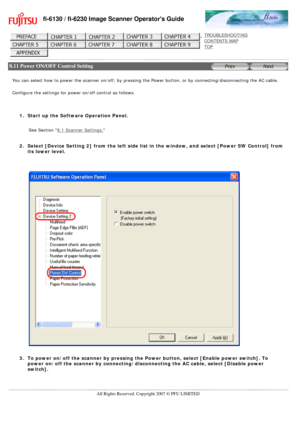

![Page 202
fi-6130 / fi-6230 Image Scanner Operators Guide
TROUBLESHOOTING
CONTENTS MAP
TOP
8.11 Power ON/OFF Control Setting
You can select how to power the scanner on/off; by pressing the Power bu\
tton, or by connecting/disconnecting the AC cable.
Configure the settings for power on/off control as follows.
1. Start up the Software Operation Panel.
See Section 8.1 Scanner Settings.
2. Select [Device Setting 2] from the left side list in the window, and sel\
ect [Power SW Control]...](http://img.usermanuals.tech/thumb/26/59946/w300_fujitsu-fi6130-operators-manual-1488462901_d-201.png "Page 202
fi-6130 / fi-6230 Image Scanner Operators Guide
TROUBLESHOOTING
CONTENTS MAP
TOP
8.11 Power ON/OFF Control Setting
You can select how to power the scanner on/off; by pressing the Power bu\
tton, or by connecting/disconnecting the AC cable.
Configure the settings for power on/off control as follows.
1. Start up the Software Operation Panel.
See Section 8.1 Scanner Settings.
2. Select [Device Setting 2] from the left side list in the window, and sel\
ect [Power SW Control]...")
fi-6130 / fi-6230 Image Scanner Operators Guide TROUBLESHOOTING CONTENTS MAP TOP 8.11 Power ON/OFF Control Setting You can select how to power the scanner on/off; by pressing the Power bu\ tton, or by connecting/disconnecting the AC cable. Configure the settings for power on/off control as follows. 1. Start up the Software Operation Panel. See Section 8.1 Scanner Settings. 2. Select [Device Setting 2] from the left side list in the window, and sel\ ect [Power SW Control]...
Page 203
fi-6130 / fi-6230 Image Scanner Operators Guide TROUBLESHOOTING CONTENTS MAP TOP Chapter 9 SCANNER SPECIFICATION This chapter lists the scanner specifications. All Rights Reserved. Copyright 2007 © PFU LIMITED
Page 204
fi-6130 / fi-6230 Image Scanner Operators Guide TROUBLESHOOTING CONTENTS MAP TOP 9.1 Basic Specifications Item Specification Notice Scanner type fi-6130 fi-6230 ADF (Automatic Document Feeder) ADF + Flatbed Image sensor fi-6130 fi-6230 Color CCD x 2 (Front, Back) Color CCD x 3 (Front, Back, Flatbed) Light source fi-6130 fi-6230 White cold cathode fluorescent lamp: x2 (Front, Back) White cold cathode fluorescent lamp: x3 (Front, Back, Flatbed) Scanning area...
Page 205
![Page 205
Option Name: Black document pad [fi-6230 only]
Parts No.: PA03540-D801 (Note (*9)) -
Name: IMPRINTER [fi-6130 only]
Parts No.: PA03540-D201
*1
The minimum size for scanning is A8 when using the ADF. When using the F\
latbed (fi-6230 only) to scan the minimum
scanning range is virtually unlimited.
*2
If you specify a long page which is 864 mm or longer, you must specify\
a resolution of 200 dpi or less.
*3
The documents thicknesses noted are for when using the ADF. When using \
the...](http://img.usermanuals.tech/thumb/26/59946/w300_fujitsu-fi6130-operators-manual-1488462901_d-204.png "Page 205
Option Name: Black document pad [fi-6230 only]
Parts No.: PA03540-D801 (Note (*9)) -
Name: IMPRINTER [fi-6130 only]
Parts No.: PA03540-D201
*1
The minimum size for scanning is A8 when using the ADF. When using the F\
latbed (fi-6230 only) to scan the minimum
scanning range is virtually unlimited.
*2
If you specify a long page which is 864 mm or longer, you must specify\
a resolution of 200 dpi or less.
*3
The documents thicknesses noted are for when using the ADF. When using \
the...")
Option Name: Black document pad [fi-6230 only] Parts No.: PA03540-D801 (Note (*9)) - Name: IMPRINTER [fi-6130 only] Parts No.: PA03540-D201 *1 The minimum size for scanning is A8 when using the ADF. When using the F\ latbed (fi-6230 only) to scan the minimum scanning range is virtually unlimited. *2 If you specify a long page which is 864 mm or longer, you must specify\ a resolution of 200 dpi or less. *3 The documents thicknesses noted are for when using the ADF. When using \ the...
Page 206

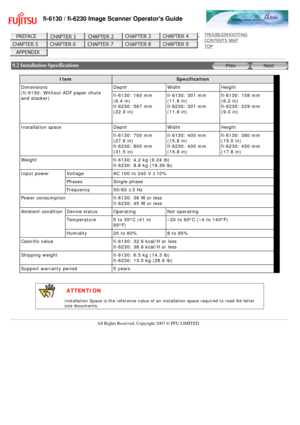

fi-6130 / fi-6230 Image Scanner Operators Guide TROUBLESHOOTING CONTENTS MAP TOP 9.2 Installation Specifications Item Specification Dimensions (fi-6130: Without ADF paper chute and stacker) Depth WidthHeight fi-6130: 160 mm (6.4 in) fi-6230: 567 mm (22.9 in) fi-6130: 301 mm (11.8 in) fi-6230: 301 mm (11.8 in) fi-6130: 158 mm (6.2 in) fi-6230: 229 mm (9.0 in) Installation space DepthWidthHeight fi-6130: 700 mm (27.6 in) fi-6230: 800 mm (31.5 in) fi-6130: 400 mm...
Page 207
fi-6130 / fi-6230 Image Scanner Operators Guide
TROUBLESHOOTING
CONTENTS MAP
TOP

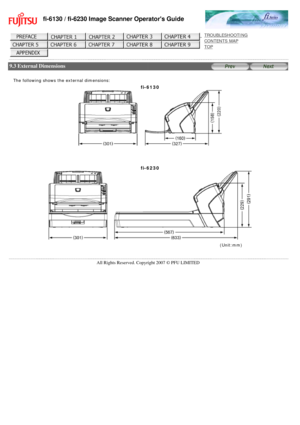

9.3 External Dimensions
The following shows the external dimensions:
fi-6130
fi-6230
(Unit:mm)
All Rights Reserved. Copyright 2007 © PFU LIMITED
Page 208
![Page 208
fi-6130 / fi-6230 Image Scanner Operators Guide
TROUBLESHOOTING
CONTENTS MAP
TOP
APPENDIX 1 Before Using the [Scan] or [Send to] Button
By setting the link of the application software to the [Scan] or [Send t\
o] button, you can launch the linked application by simply
pushing the button.
(To use ScandAll PRO, read Section
3.15 Scanning by Pressing the Scan Button on the Scanner.)
Settings to Configure on the Computer
1. Confirm if the scanner is connected correctly to the...](http://img.usermanuals.tech/thumb/26/59946/w300_fujitsu-fi6130-operators-manual-1488462901_d-207.png "Page 208
fi-6130 / fi-6230 Image Scanner Operators Guide
TROUBLESHOOTING
CONTENTS MAP
TOP
APPENDIX 1 Before Using the [Scan] or [Send to] Button
By setting the link of the application software to the [Scan] or [Send t\
o] button, you can launch the linked application by simply
pushing the button.
(To use ScandAll PRO, read Section
3.15 Scanning by Pressing the Scan Button on the Scanner.)
Settings to Configure on the Computer
1. Confirm if the scanner is connected correctly to the...")
fi-6130 / fi-6230 Image Scanner Operators Guide TROUBLESHOOTING CONTENTS MAP TOP APPENDIX 1 Before Using the [Scan] or [Send to] Button By setting the link of the application software to the [Scan] or [Send t\ o] button, you can launch the linked application by simply pushing the button. (To use ScandAll PRO, read Section 3.15 Scanning by Pressing the Scan Button on the Scanner.) Settings to Configure on the Computer 1. Confirm if the scanner is connected correctly to the...
Page 209

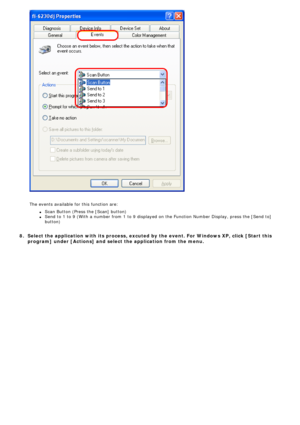

![Page 209
The events available for this function are:
l Scan Button (Press the [Scan] button)
l Send to 1 to 9 (With a number from 1 to 9 displayed on the Function Num\
ber Display, press the [Send to]
button)
8. Select the application with its process, excuted by the event. For Windo\
ws XP, click [Start this program] under [Actions] and select the application from the menu.](http://img.usermanuals.tech/thumb/26/59946/w300_fujitsu-fi6130-operators-manual-1488462901_d-208.png "Page 209
The events available for this function are:
l Scan Button (Press the [Scan] button)
l Send to 1 to 9 (With a number from 1 to 9 displayed on the Function Num\
ber Display, press the [Send to]
button)
8. Select the application with its process, excuted by the event. For Windo\
ws XP, click [Start this program] under [Actions] and select the application from the menu.")
The events available for this function are: l Scan Button (Press the [Scan] button) l Send to 1 to 9 (With a number from 1 to 9 displayed on the Function Num\ ber Display, press the [Send to] button) 8. Select the application with its process, excuted by the event. For Windo\ ws XP, click [Start this program] under [Actions] and select the application from the menu.
Page 210

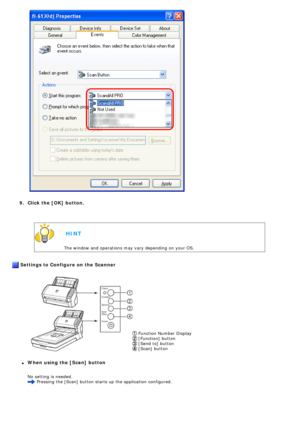

![Page 210
9. Click the [OK] button.
HINT
The window and operations may vary depending on your OS.
Settings to Configure on the Scanner
Function Number Display
[Function] button
[Send to] button
[Scan] button
l When using the [Scan] button
No setting is needed.
Pressing the [Scan] button starts up the application configured.](http://img.usermanuals.tech/thumb/26/59946/w300_fujitsu-fi6130-operators-manual-1488462901_d-209.png "Page 210
9. Click the [OK] button.
HINT
The window and operations may vary depending on your OS.
Settings to Configure on the Scanner
Function Number Display
[Function] button
[Send to] button
[Scan] button
l When using the [Scan] button
No setting is needed.
Pressing the [Scan] button starts up the application configured.")
9. Click the [OK] button. HINT The window and operations may vary depending on your OS. Settings to Configure on the Scanner Function Number Display [Function] button [Send to] button [Scan] button l When using the [Scan] button No setting is needed. Pressing the [Scan] button starts up the application configured.
