Fujitsu P27t 6 Ips Operating Manual

Operation
Displaying information
Call theInformationsetting window
With this function the model designation, serial number, resolution, H/V
frequency, input signal, colour setting and polarity of the synchronisation
signal are displayed.
Fujitsu Technology Solutions 27


Notes on ergonomic colour adjustment
Notes on ergonomic colour adjustment
If you select colours for the monitor in your application programmes,
take note of the information below.
The primary colours blue and red on a dark background do not produce the minimum
required contrast of 3:1 and are therefore not suitable for continuous text and data entry.
When using several colours for characters and background and giving the primary colours full
modulation, you can obtain very suitable colour combinations...

Troubleshooting
Troubleshooting
Should an error occur,first check the following points. If the distortion is still not eliminated,
the monitor should, if possible, be checked on another computer.
If you cannot solve the problem, please contact our Service Desk.
Having this problem? Check the following points:
No screen display
Power indicator does not light up►Test whether changing the 0 W switch on the
rear to the  1  position cures the problem.
►Check whether the power cable on the
monitor is connected...

Troubleshooting
Having this problem? Check the following points:
Picture is wrongly adjusted
►Run theFactory Recallfunctionin the OSD
menu.
TheAuto Processingmessage appears.
Picture disturbances (vertical lines)►Press theAUTObutton to perform
auto-adjustment of the screen.
Picture disturbances (horizontal lines, picture
noise)►Press theAUTObutton to perform
auto-adjustment of the screen.
The screen becomes darker
The background lighting has a limited lifetime.
If your monitor display should become too...

Explanatory information about standard ISO 9241-307
Explanatory information about
standard ISO 9241-307
Permanently unlit or lit pixels
Today’s production techniques cannot guarantee an absolutely fault-free screen display. Depending
on the total number of pixels (resolution), there may be a few constantly lit or unlit pixels or subpixels.
Pixel
A pixel consists of 3 subpixels, normally red, green and blue. A pixel is
the smallest element that can be generated by complete functionality of
the display....

Technical specification
Technical specification
Condensation is not permitted, neither in the rated range of operation
nor in the limit range of operation.
P27T-6 IPS
Dimensions and weight
Visible diagonals 68.5 cm
Dot pitch 0.2331 mm
Width 596.7 mm Image size
Height 335.7 mm
Maximum resolution 2560 x 1440
Width 646 mm
Height 417 mm Dimensions incl. monitor base
Depth 252 mm
Weight (without packaging)approx. 10.2 kg
Storable display modes36
Pixel error classes according to
ISO 9241-307ClassI
Electrical...

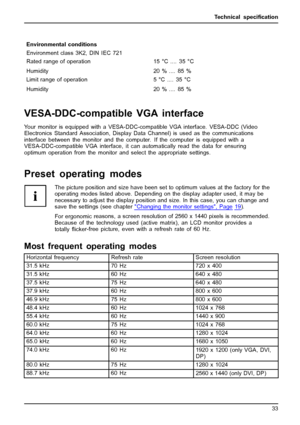

Technical specification
Environmental conditions
Environment class 3K2, DIN IEC 721
Rated range of operation
Humidity15 °C .... 35 °C
20 % .... 85 %
Limit range of operation
Humidity5 °C .... 35 °C
20 % .... 85 %
VESA-DDC-compatible VGA interface
Your monitor is equipped with a VESA-DDC-compatible VGA interface. VESA-DDC (Video
Electronics Standard Association, Display Data Channel) is used as the communications
interface between the monitor and the computer. If the computer is equipped with a...

Technical specification

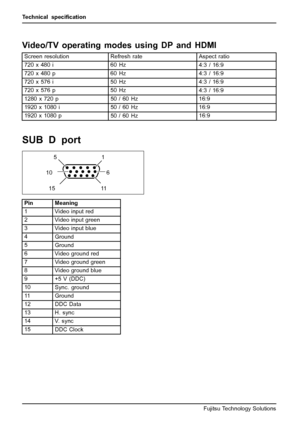

Video/TV operating modes using DP and HDMI
Screen resolution Refresh rateAspect ratio
720 x 480 i 60 Hz
4:3 / 16:9
720 x 480 p 60 Hz
4:3 / 16:9
720 x 576 i 50 Hz
4:3 / 16:9
720 x 576 p 50 Hz
4:3 / 16:9
1280 x 720 p
50 / 60 Hz16:9
1920 x 1080 i
50 / 60 Hz16:9
1920 x 1080 p
50 / 60 Hz16:9
SUBDport
6 10
11 1551
Pin Meaning
1 Video input red
2 Video input green
3 Video input blue
4
Ground
5
Ground
6 Video ground red
7
Video ground green
8 Video ground blue
9
+5 V (DDC)
10
Sync. ground...

Technical specification

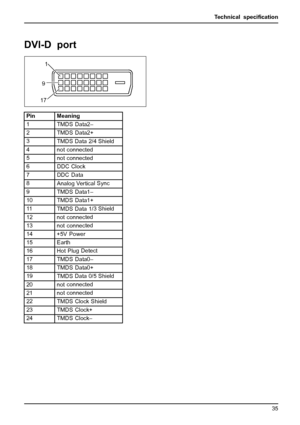

DVI-D port
91
17
Pin Meaning
1
TMDS Data2–
2
TMDS Data2+
3
TMDS Data 2/4 Shield
4 not connected
5
not connected
6
DDC Clock
7
DDC Data
8
Analog VerticalSync
9
TMDS Data1–
10
TMDS Data1+
11
TMDS Data 1/3 Shield
12 not connected
13 not connected
14 +5V Power
15 Earth
16 Hot Plug Detect
17
TMDS Data0–
18
TMDS Data0+
19
TMDSData 0/5 Shield
20 notconnected
21 not connected
22
TMDS Clock Shield
23
TMDS Clock+
24
TMDS Clock–
Fujitsu Technology Solutions 35


Technical specification

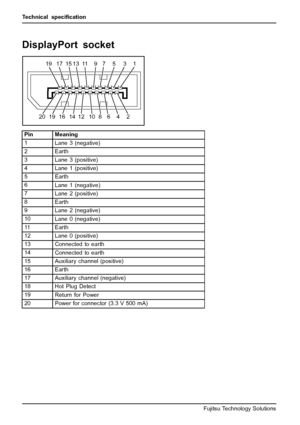

DisplayPort socket
1 3 19 17 15 13 11 9 7 5
2 4 20 19 16 14 12 10 8 6
Pin Meaning
1
Lane 3 (negative)
2Earth
3
Lane 3 (positive)
4
Lane 1 (positive)
5
Earth
6
Lane 1 (negative)
7
Lane 2 (positive)
8Earth
9
Lane 2 (negative)
10
Lane 0 (negative)
11 E a r t h
12
Lane 0 (positive)
13
Connected to earth
14
Connected to earth
15
Auxiliary channel (positive)
16 Earth
17
Auxiliary channel (negative)
18 Hot Plug Detect
19
Return for Power
20
Power for connector (3.3 V 500 mA)
36 Fujitsu...
