Gateway M465e Service Manual

Replacing the LCD panel or LCD panel assembly lid www.gateway.com
47
17Replace the six LCD panel assembly screws.
18Replace the six rubber inserts.
19Reassemble the notebook.

Replacing Gateway Notebook Componentswww.gateway.com
48
Replacing the palm rest

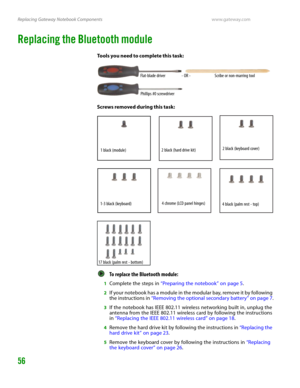

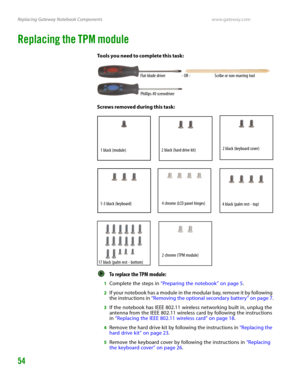

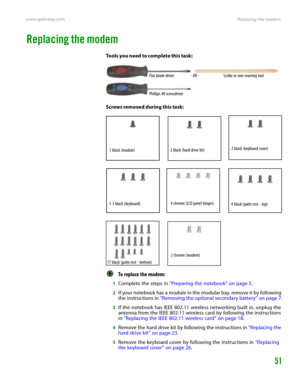

Tools you need to complete this task:
Screws removed during this task:
To replace the palm rest:
1Complete the steps in “Preparing the notebook” on page 5.
2If your notebook has a module in the modular bay, remove it by following
the instructions in “Removing the optional secondary battery” on page 7.
3If the notebook has IEEE 802.11 wireless networking built in, unplug the
antenna from the IEEE 802.11 wireless card by...

Replacing the palm rest www.gateway.com
49
6Remove the keyboard by following the instructions in “Replacing the
keyboard” on page 28.
7Remove the LCD panel by following the instructions in “Replacing the LCD
panel assembly” on page 35.

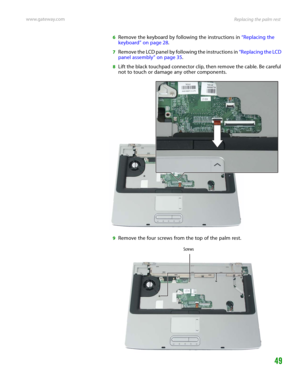

8Lift the black touchpad connector clip, then remove the cable. Be careful
not to touch or damage any other components.
9Remove the four screws from the top of the palm rest.
Screws

Replacing Gateway Notebook Componentswww.gateway.com
50

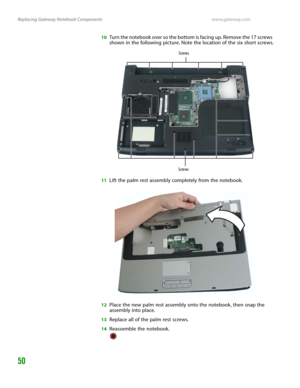

10Turn the notebook over so the bottom is facing up. Remove the 17 screws
shown in the following picture. Note the location of the six short screws.
11Lift the palm rest assembly completely from the notebook.
12Place the new palm rest assembly onto the notebook, then snap the
assembly into place.
13Replace all of the palm rest screws.
14Reassemble the notebook.
Screws
Screws

Replacing the modem www.gateway.com
51
Replacing the modem
Tools you need to complete this task:
Screws removed during this task:
To replace the modem:
1Complete the steps in “Preparing the notebook” on page 5.
2If your notebook has a module in the modular bay, remove it by following
the instructions in “Removing the optional secondary battery” on page 7.
3If the notebook has IEEE 802.11 wireless networking built in, unplug the
antenna from the IEEE 802.11 wireless card by following the instructions...

Replacing Gateway Notebook Componentswww.gateway.com
52
6Remove the keyboard by following the instructions in “Replacing the
keyboard” on page 28.
7Remove the LCD panel by following the instructions in “Replacing the LCD
panel assembly” on page 35.
8Remove the palm rest by following the instructions in “Replacing the palm
rest” on page 48.

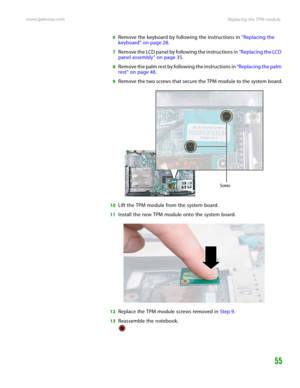

9Remove the two screws that secure the modem to the system board.
10Lift the modem from the system board.
Screws

Replacing the modem www.gateway.com
53
11Unplug the modem cable from the old modem and plug it into the new
modem.
12Install the new modem onto the system board.
13Replace the modem screws removed in Step 9.
14Reassemble the notebook.

Replacing Gateway Notebook Componentswww.gateway.com
54
Replacing the TPM module
Tools you need to complete this task:
Screws removed during this task:
To replace the TPM module:
1Complete the steps in “Preparing the notebook” on page 5.
2If your notebook has a module in the modular bay, remove it by following
the instructions in “Removing the optional secondary battery” on page 7.
3If the notebook has IEEE 802.11 wireless networking built in, unplug the
antenna from the IEEE 802.11 wireless card by...

Replacing the TPM module www.gateway.com
55
6Remove the keyboard by following the instructions in “Replacing the
keyboard” on page 28.
7Remove the LCD panel by following the instructions in “Replacing the LCD
panel assembly” on page 35.
8Remove the palm rest by following the instructions in “Replacing the palm
rest” on page 48.

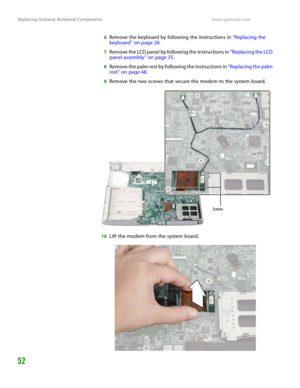

9Remove the two screws that secure the TPM module to the system board.
10Lift the TPM module from the system board.
11Install the new TPM module onto the system board....

Replacing Gateway Notebook Componentswww.gateway.com
56

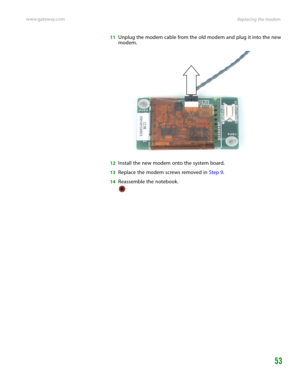

Replacing the Bluetooth module
Tools you need to complete this task:
Screws removed during this task:
To replace the Bluetooth module:
1Complete the steps in “Preparing the notebook” on page 5.
2If your notebook has a module in the modular bay, remove it by following
the instructions in “Removing the optional secondary battery” on page 7.
3If the notebook has IEEE 802.11 wireless networking built in, unplug the
antenna from the IEEE 802.11...
