Gateway Profile 4 User Manual

143
Benefits of networking
www.gateway.com
Sharing peripheral devices
Each computer that is connected to the network can share the same peripheral
devices, such as a printer. Select print from the computer you are currently using
and your file is automatically printed on your printer no matter where it is
located on your network.
Streaming audio and video files
With a network, you can store audio files (such as the popular .MP3 files) and
video files on any networked computer, then play them on any...

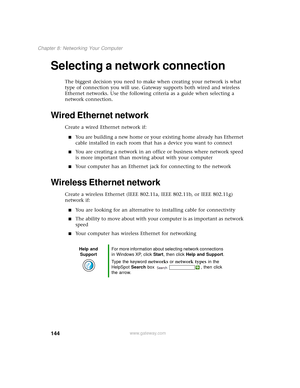

144
Chapter 8: Networking Your Computer
www.gateway.com
Selecting a network connection
The biggest decision you need to make when creating your network is what
type of connection you will use. Gateway supports both wired and wireless
Ethernet networks. Use the following criteria as a guide when selecting a
network connection.
Wired Ethernet network
Create a wired Ethernet network if:
■You are building a new home or your existing home already has Ethernet
cable installed in each room that has a device...

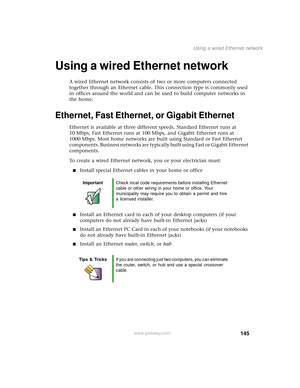

145
Using a wired Ethernet network
www.gateway.com
Using a wired Ethernet network
A wired Ethernet network consists of two or more computers connected
together through an Ethernet cable. This connection type is commonly used
in offices around the world and can be used to build computer networks in
the home.
Ethernet, Fast Ethernet, or Gigabit Ethernet
Ethernet is available at three different speeds. Standard Ethernet runs at
10 Mbps, Fast Ethernet runs at 100 Mbps, and Gigabit Ethernet runs at
1000...

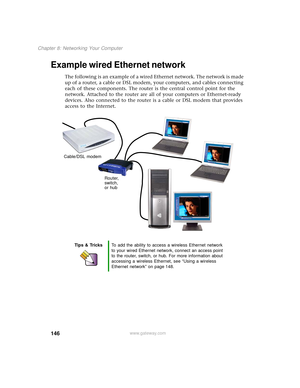

146
Chapter 8: Networking Your Computer
www.gateway.com
Example wired Ethernet network
The following is an example of a wired Ethernet network. The network is made
up of a router, a cable or DSL modem, your computers, and cables connecting
each of these components. The router is the central control point for the
network. Attached to the router are all of your computers or Ethernet-ready
devices. Also connected to the router is a cable or DSL modem that provides
access to the Internet.
Tips &...

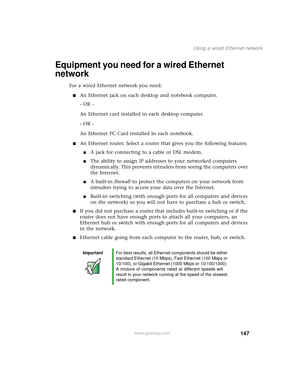

147
Using a wired Ethernet network
www.gateway.com
Equipment you need for a wired Ethernet
network
For a wired Ethernet network you need:
■An Ethernet jack on each desktop and notebook computer.
- OR -
An Ethernet card installed in each desktop computer.
- OR -
An Ethernet PC Card installed in each notebook.
■An Ethernet router. Select a router that gives you the following features:
■A jack for connecting to a cable or DSL modem.
■The ability to assign IP addresses to your networked computers...

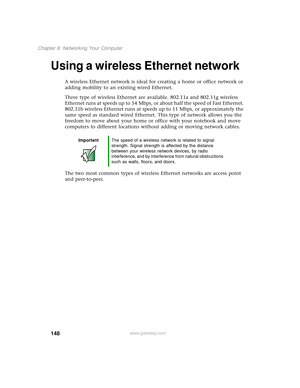

148
Chapter 8: Networking Your Computer
www.gateway.com
Using a wireless Ethernet network
A wireless Ethernet network is ideal for creating a home or office network or
adding mobility to an existing wired Ethernet.
Three type of wireless Ethernet are available. 802.11a and 802.11g wireless
Ethernet runs at speeds up to 54 Mbps, or about half the speed of Fast Ethernet.
802.11b wireless Ethernet runs at speeds up to 11 Mbps, or approximately the
same speed as standard wired Ethernet. This type of...

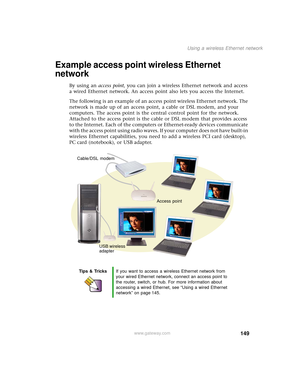

149
Using a wireless Ethernet network
www.gateway.com
Example access point wireless Ethernet
network
By using an access point, you can join a wireless Ethernet network and access
a wired Ethernet network. An access point also lets you access the Internet.
The following is an example of an access point wireless Ethernet network. The
network is made up of an access point, a cable or DSL modem, and your
computers. The access point is the central control point for the network.
Attached to the access...

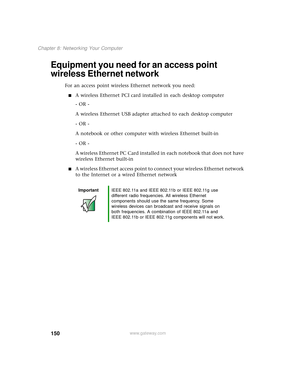

150
Chapter 8: Networking Your Computer
www.gateway.com
Equipment you need for an access point
wireless Ethernet network
For an access point wireless Ethernet network you need:
■A wireless Ethernet PCI card installed in each desktop computer
- OR -
A wireless Ethernet USB adapter attached to each desktop computer
- OR -
A notebook or other computer with wireless Ethernet built-in
- OR -
A wireless Ethernet PC Card installed in each notebook that does not have
wireless Ethernet built-in
■A wireless...

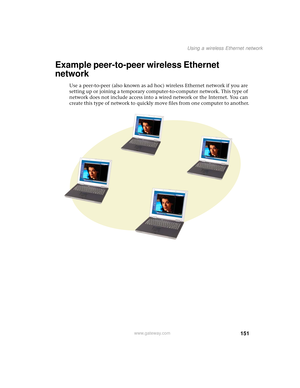

151
Using a wireless Ethernet network
www.gateway.com
Example peer-to-peer wireless Ethernet
network
Use a peer-to-peer (also known as ad hoc) wireless Ethernet network if you are
setting up or joining a temporary computer-to-computer network. This type of
network does not include access into a wired network or the Internet. You can
create this type of network to quickly move files from one computer to another.

152

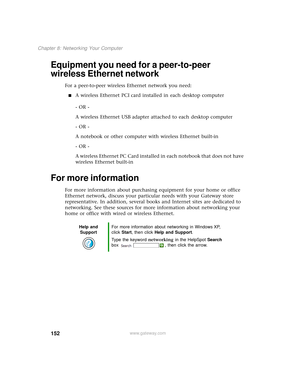

Chapter 8: Networking Your Computer
www.gateway.com
Equipment you need for a peer-to-peer
wireless Ethernet network
For a peer-to-peer wireless Ethernet network you need:
■A wireless Ethernet PCI card installed in each desktop computer
- OR -
A wireless Ethernet USB adapter attached to each desktop computer
- OR -
A notebook or other computer with wireless Ethernet built-in
- OR -
A wireless Ethernet PC Card installed in each notebook that does not have
wireless Ethernet built-in
For more...
