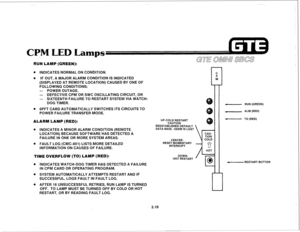

RUN LAMP (GREEN):
. INDICATES NORMAL ON CONDITION.
. IF OUT, A MAJOR ALARM CONDITION IS INDICATED
(DISPLAYED AT REMOTE LOCATION) CAUSED BY ONE OF
FOLLOWING CONDITIONS:
- POWER OUTAGE,
- DEFECTIVE CPM OR SWC OSCILLATING CIRCUIT, OR
- SIXTEENTH FAILURE TO RESTART SYSTEM VIA WATCH-
DOG TIMER.
. 6PFT CARD AUTOMATICALLY SWITCHES ITS CIRCUITS TO
POWER FAILURE TRANSFER MODE.
ALARM LAMP (RED):
@ INDICATES A MINOR ALARM CONDITION (REMOTE
LOCATION) BECAUSE SOFTWARE HAS DETECTED A
FAILURE IN ONE OR...

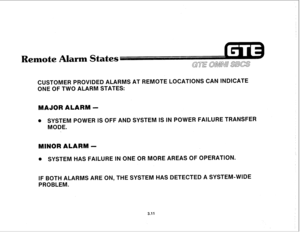

Remote Alarm Stat
CUSTOMER PROVIDED ALARMS AT REMOTE LOCATIONS CAN INDICATE
ONE OF TWO ALARM STATES:
MAJOR ALARM -
. SYSTEM POWER IS OFF AND SYSTEM IS IN POWER FAILURE TRANSFER
MODE.
MINOR ALARM -
. SYSTEM HAS FAILURE IN ONE OR MORE AREAS OF OPERATION.
IF BOTH ALARMS ARE ON, THE SYSTEM HAS DETECTED A SYSTEM-WIDE
PROBLEM.
3.11

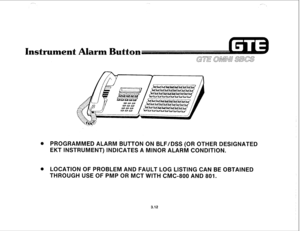

PROGRAMMED ALAlwl BUTTON ON BLF/lxS (OR OTHER DESIGNATED
MT INSTRUMENT) lNDKATES A MINOR ALARM CONDITION.
LOCATION OF PROBLEIM A D FAULT LOG LISTING CAN BE OBTAINED
THROUGH USE OF PIMP OR IVET WITH CIVIC-800 AND 801.
3.12

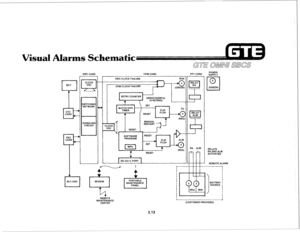

Visual Alarms Sche
r f
I
SWC CARD CPM CARD PFT CARD
SWC CLOCK FAILURE
RESET SET
FLIP
RESET FLOP
MANUAL
RESTART
I
ALM
ml
RA ALM
(RED)
+
+I
MODEM
REMOTE
MAINTENANCE
CENTER PORTABLE
MAINTENANCE POWER
SUPPLY
rl
0 X
(GREEN)
RELAYS
RA AND ALM
ACTIVATED
REMOTE ALARM
L----------------------~
(CUSTOMER-PROVIDED)

Review Exercise
-
ntena
ve

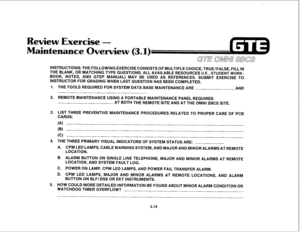

INSTRUCTIONS: THE FOLLOWING EXERCISE CONSISTS OF MULTIPLE CHOICE, TRUE/FALSE, FILL IN
THE BLANK, OR MATCHING TYPE QUESTIONS. ALL AVAILABLE RESOURCES (I.E., STUDENT WORK-
BOOK, NOTES, AND GTEP MANUAL) MAY BE USED AS REFERENCES. SUBMIT EXERCISE TO
IINSTRUCTOR FOR GRADING WHEN LAST QUESTION HAS BEEN COMPLETED.
1. THE TOOLS REQUIRED FOR SYSTEM DATA BASE MAINTENANCE ARE
AND
2. REMOTE MAINTENANCE USING A PORTABLE MAINTENANCE PANEL REQUIRES
AT BOTH THE REMOTE SITE AND AT...

Review Exercise -
Maintenance Overview (3.1) (Cantinwed)

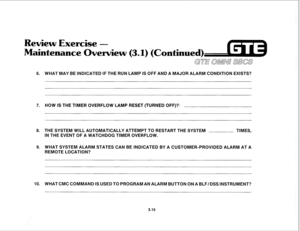

6. WHAT MAY BE INDICATED IF THE RUN LAMP IS OFF AND A MAJOR ALARM CONDITION EXISTS?
7.
8.
9.
10. HOW IS THE TIMER OVERFLOW LAMP RESET (TURNED OFF)?!
THE SYSTEM WILL AUTOMATICALLY ATTEMPT TO RESTART THE SYSTEM TIMES,
IN THE EVENT OF A WATCHDOG TIMER OVERFLOW.
WHAT SYSTEM ALARM STATES CAN BE INDICATED BY A CUSTOMER-PROVIDED ALARM AT A
REMOTE LOCATION?
WHAT CMC COMMAND IS USED TO PROGRAM AN ALARM BUTTON ON A BLF/DSS INSTRUMENT?
3.15

-.. ,- ..,

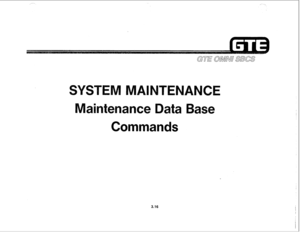

mmands
3.16

GIVEN: l
e
l
l
0
l
ACTION: e
0
l
CRITERIA: e
8

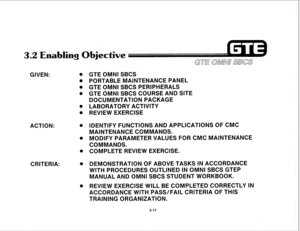

GTE OMNI SBCS
PORTABLE MAINTENANCE PANEL
GTE OMNI SBCS PERIPHERALS
GTE OMNI SBCS COURSE AND SITE
DOCUMENTATION PACKAGE
LABORATORY ACTIVITY
REVIEW EXERCISE
IDENTIFY FUNCTIONS AND APPLICATIONS OF CMC
MAINTENANCE COMMANDS.
MODIFY PARAMETER VALUES FOR CMC MAINTENANCE
COMMANDS.
COMPLETE REVIEW EXERCISE.
DEMONSTRATION OF ABOVE TASKS IN ACCORDANCE
WITH PROCEDURES OUTLINED IN OMNI SBCS GTEP
MANUAL AND OMNI SBCS STUDENT WORKBOOK.
REVIEW...

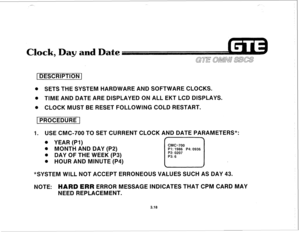

[DESCRIPTION 1
8 SETS THE SYSTEM HARDWARE AND SOFTWARE CLOCKS.
@ TIME AND DATE ARE DISPLAYED ON ALL EKT LCD DlSPLAYS.
@ CLOCK MUST BE RESET FOLLOWING COLD RESTART.
[PROCEDURE 1
1. USE CMC-700 TO SET CURRENT CLOCK AND DATE PARAMETERS*:
. YEAR (PI)
Q MONTH AND DAY (P2)
8 DAY OF THE WEEK (P3)
. HOUR AND MINUTE (P4)
Pl: 1986 P4: 0936
*SYSTEM WILL NOT ACCEPT ERRONEOUS VALUES SUCH AS DAY 43.
NOTE:
HARD ERR ERROR MESSAGE INDICATES THAT CPM CARD MAY
NEED REPLACEMENT.
3.18

Circuit Busy Assignment

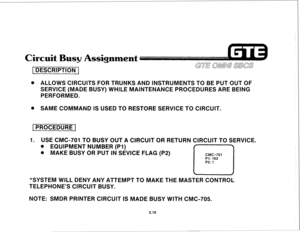

1 DESCRIPTION 1
@ ALLOWS CIRCUITS FOR TRUNKS AND INSTRUMENTS TO BE PUT OUT OF
SERVICE (MADE BUSY) WHILE MAINTENANCE PROCEDURES ARE BEING
PERFORMED.
. SAME COMMAND IS USED TO RESTORE SERVICE TO CIRCUIT.
1 PROCEDURE 1
1. USE CMC-701 TO BUSY OUT A CIRCUIT OR RETURN CIRCUIT TO SERVICE.
. EQUIPMENT NUMBER (PI)
. MAKE BUSY OR PUT IN SEVICE FLAG (P2)
CMC=701
r-l
Pl: 162
P2: 1
*SYSTEM WILL DENY ANY ATTEMPT TO MAKE THE MASTER CONTROL
TELEPHONE’S CIRCUIT BUSY.
NOTE: SMDR...
