Hitachi Cp-Sx1350w Users Manual

31

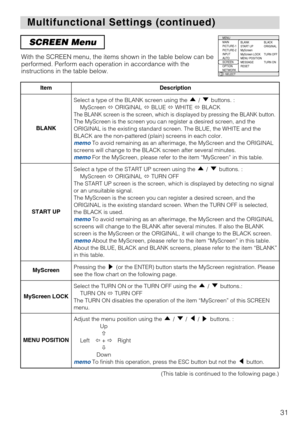

Multifunctional Settings (continued)
Multifunctional Settings (continued)
SCREEN Menu
With the SCREEN menu, the items shown in the table below can be
performed. Perform each operation in accordance with the
instructions in the table below.

:
SELECT
MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
AUTO
SCREEN
OPTION
NETWORK BLANK
START UP
MyScreen
MyScreen LOCK
MENU POSITION
MESSAGE
RESET
BLACK
ORIGINAL
TURN OFF
TURN ON

ItemDescription
BLANK
Select a type of the BLANK screen using the  /  buttons. :
MyScreen...

32

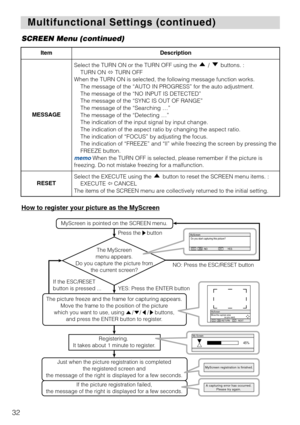

Multifunctional Settings (continued) Multifunctional Settings (continued)
ItemDescription
MESSAGE
Select the TURN ON or the TURN OFF using the  /  buttons. :
TURN ON
TURN OFF
When the TURN ON is selected, the following message function works.
The message of the “AUTO IN PROGRESS” for the auto adjustment.
The message of the “NO INPUT IS DETECTED”
The message of the “SYNC IS OUT OF RANGE”
The message of the “Searching …”
The message of the “Detecting …”
The indication of the input signal by input...

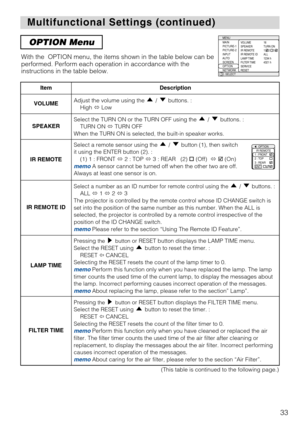

ItemDescription
VOLUMEAdjust the volume using the  /  buttons. :
High
Low
SPEAKERSelect the TURN ON or the TURN OFF using the  /  buttons. :
TURN ON
TURN OFF
When the TURN ON is selected, the built-in speaker works.
IR REMOTE
Select a remote sensor using the  /  button (1), then switch
it using the ENTER button (2). :
(1) 1 : FRONT
2 : TOP
3 : REAR   (2) (Off)
(On)
memoA sensor cannot be turned off when the other two are off.
Always at least one sensor is on.
IR REMOTE ID
Select a number as an...

34
Multifunctional Settings (continued) Multifunctional Settings (continued)

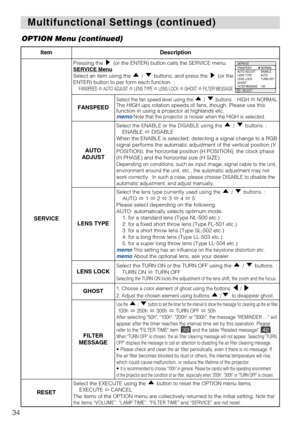

OPTION Menu (continued)
ItemDescription
SERVICE
Pressing the (or the ENTER) button calls the SERVICE menu.
SERVICE Menu
Select an item using the  /  buttons, and press the (or the
ENTER) button to per form each function. :
FANSPEED
AUTO ADJUST
LENS TYPE
LENS LOCK
GHOST
FILTER MESSAGE
FANSPEED
Select the fan speed level using the  /  buttons. : HIGH
NORMAL
The HIGH ups rotation speeds of fans, though. Please use this...

35
Multifunctional Settings (continued) Multifunctional Settings (continued)

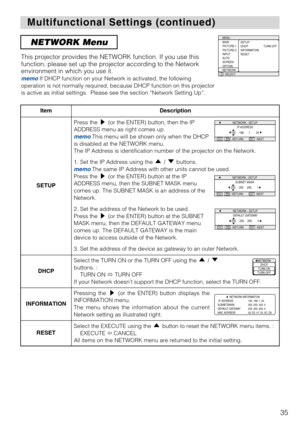

NETWORK Menu
This projector provides the NETWORK function. If you use this
function, please set up the projector according to the Network
environment in which you use it.
memoIf DHCP function on your Network is activated, the following
operation is not normally required, because DHCP function on this projector
is active as initial settings.  Please see the section “Network Setting Up”.: SELECT
MENU
MAIN
PICTURE-1
PICTURE-2...

36

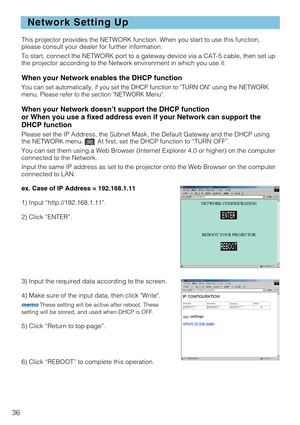

Network Setting Up Network Setting Up
This projector provides the NETWORK function. When you start to use this function,
please consult your dealer for further information.
To start, connect the NETWORK port to a gateway device via a CAT-5 cable, then set up
the projector according to the Network environment in which you use it.
When your Network enables the DHCP function
You can set automatically, if you set the DHCP function to TURN ON using the NETWORK
menu. Please refer to the section NETWORK...

37

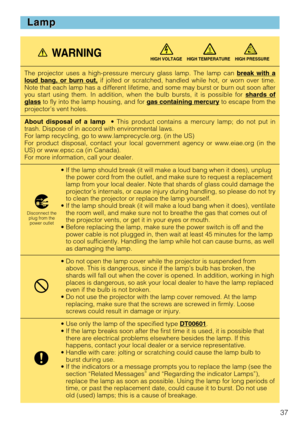

Lamp Lamp
The projector uses a high-pressure mercury glass lamp. The lamp can break with aloud bang, or burn out,if jolted or scratched, handled while hot, or worn over time.
Note that each lamp has a different lifetime, and some may burst or burn out soon after
you start using them. In addition, when the bulb bursts, it is possible for shards of
glassto fly into the lamp housing, and for gas containing mercuryto escape from the
projector’s vent holes.
About disposal of a lamp• This product contains a...

38

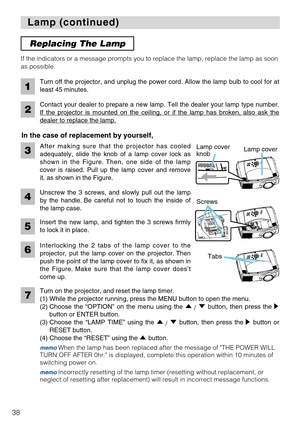

Lamp (continued) Lamp (continued)
After making sure that the projector has cooled
adequately, slide the knob of a lamp cover lock as
shown in the Figure. Then, one side of the lamp
cover is raised. Pull up the lamp cover and remove
it, as shown in the Figure. If the indicators or a message prompts you to replace the lamp, replace the lamp as soon
as possible.
Turn off the projector, and unplug the power cord. Allow the lamp bulb to cool for at
least 45 minutes.
2
1
Contact your dealer to prepare a new...

39

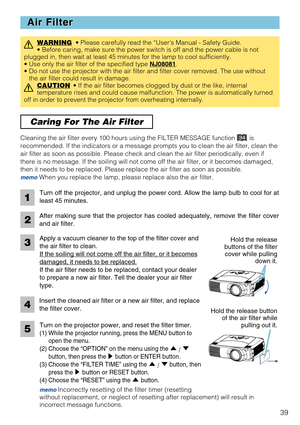

Caring For The Air Filter
Air Filter Air Filter
WARNING• Please carefully read the “User’s Manual - Safety Guide.
• Before caring, make sure the power switch is off and the power cable is not
plugged in, then wait at least 45 minutes for the lamp to cool sufficiently.
• Use only the air filter of the specified type NJ08081
.
• Do not use the projector with the air filter and filter cover removed. The use without
the air filter could result in damage.
CAUTION
• If the air filter becomes clogged by...

40

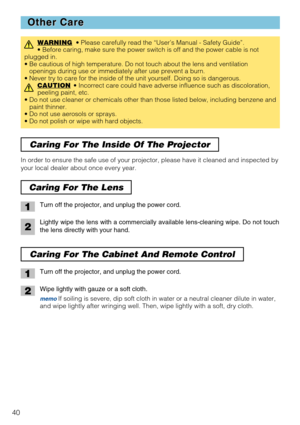

Other Care Other Care
WARNING• Please carefully read the “User’s Manual - Safety Guide”.
• Before caring, make sure the power switch is off and the power cable is not
plugged in.
• Be cautious of high temperature. Do not touch about the lens and ventilation
openings during use or immediately after use prevent a burn.
• Never try to care for the inside of the unit yourself. Doing so is dangerous.
CAUTION
• Incorrect care could have adverse influence such as discoloration,
peeling paint, etc.
• Do not...
