Hitachi Cp-X600 Projector Users Manual

4

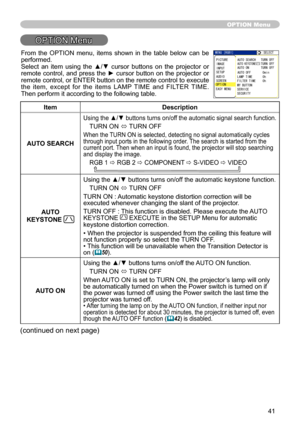

OPTION Menu
OPTION Menu
ItemDescription
AUTO SEARCH
Using the ▲/▼ buttons turns on/off the automatic signal search function.
TURN ON ó TURN OFF
When the TURN ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.
RGB  ð RGB  ð COMPONENT ð S-VIDEO ð VIDEO
AUTO
KEYSTONE
Using the ▲/▼ buttons turns on/off...

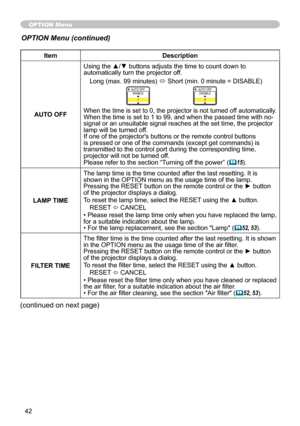

4

ItemDescription
AUTO OFF
Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.
Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE)
AUTO OFFENABLE
AUTO OFFDISABLE0
When the time is set to 0, the projector is not turned off automatically.When the time is set to  to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the...

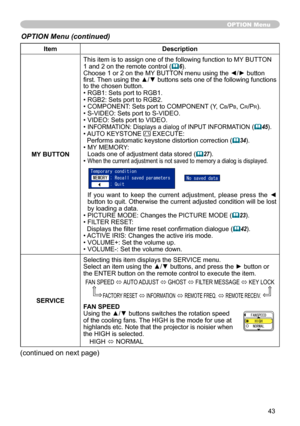

43

ItemDescription
MY BUTTON
This item is to assign one of the following function to MY BUTTON
 and  on the remote control (6).Choose 1 or 2 on the MY BUTTON menu using the ◄/► button first. Then using the ▲/▼ buttons sets one of the following functions to the chosen button.
• RGB: Sets port to RGB.
• RGB: Sets port to RGB.
• COMPONENT: Sets port to COMPONENT (Y, Cb/Pb, Cr/Pr).• S-VIDEO: Sets port to S-VIDEO.• VIDEO: Sets port to VIDEO.• INFORMATION: Displays a dialog of...

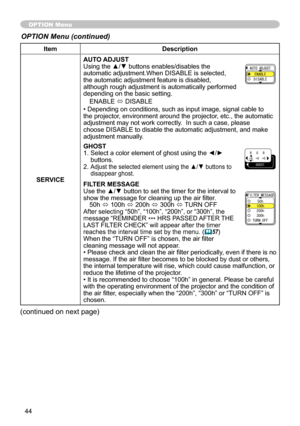

44

ItemDescription
SERVICE
AUTO ADJUSTUsing the ▲/▼ buttons enables/disables the automatic adjustment.When DISABLE is selected, the automatic adjustment feature is disabled, although rough adjustment is automatically performed depending on the basic setting.
ENABLE ó DISABLE
• Depending on conditions, such as input image, signal cable to the projector, environment around the projector, etc., the automatic adjustment may not work correctly.  In such a case, please choose DISABLE to disable the automatic...

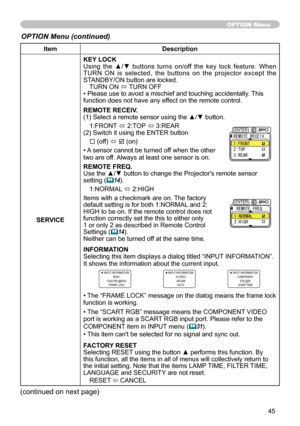

45

ItemDescription
SERVICE
KEY LOCKUsing  the  ▲/▼  buttons  turns  on/off  the  key  lock  feature.  When TURN  ON  is  selected,  the  buttons  on  the  projector  except  the STANDBY/ON button are locked.TURN ON ó TURN OFF• Please use to avoid a mischief and touching accidentally. This function does not have any effect on the remote control.
REMOTE RECEIV.(1) Select a remote sensor using the ▲/▼ button.:FRONT
ó  :TOP ó 3:REAR
() Switch it using the ENTER button
¨ (off) ó þ (on)
• A...

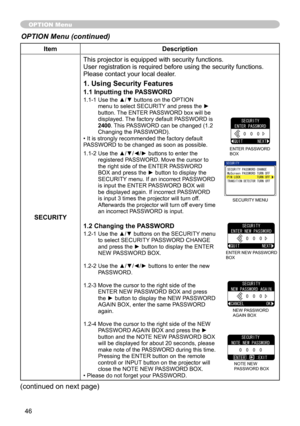

46

ItemDescription
SECURITY
This projector is equipped with security functions.User registration is required before using the security functions.Please contact your local dealer.
1. Using Security Features
1.1 Inputting the PASSWORD
1.1-1  Use the ▲/▼ buttons on the OPTION menu to select SECURITY and press the ► button. The ENTER PASSWORD box will be displayed. The factory default PASSWORD is 2400. This PASSWORD can be changed (. Changing the PASSWORD). • It is strongly recommended the...

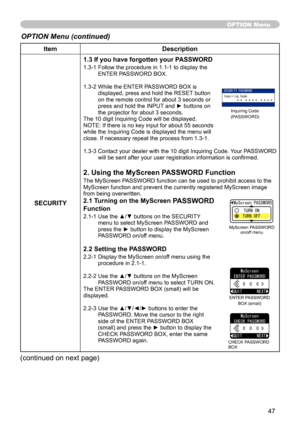

47

ItemDescription
SECURITY
1.3 If you have forgotten your PASSWORD
.3-  Follow the procedure in .- to display the ENTER PASSWORD BOX.
.3-   While the ENTER PASSWORD BOX is
displayed, press and hold the RESET button on the remote control for about 3 seconds or press and hold the INPUT and ► buttons on the projector for about 3 seconds.
The 0 digit Inquiring Code will be displayed.
NOTE: If there is no key input for about 55 seconds while the Inquiring Code is...

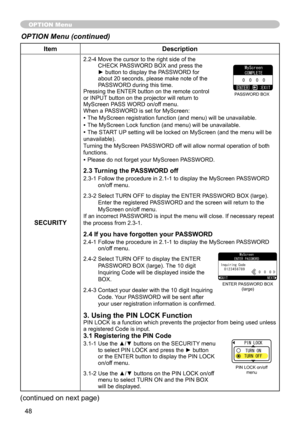

48

ItemDescription
SECURITY
.-4  Move the cursor to the right side of the CHECK PASSWORD BOX and press the ► button to display the PASSWORD for
about 0 seconds, please make note of the
PASSWORD during this time. Pressing the ENTER button on the remote control or INPUT button on the projector will return to MyScreen PASS WORD on/off menu.When a PASSWORD is set for MyScreen:
• The MyScreen registration function (and menu) will be unavailable.
• The MyScreen Lock function (and menu) will...

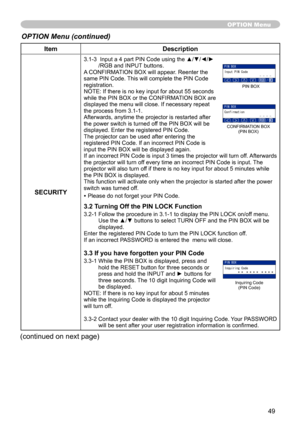

49

ItemDescription
SECURITY
3.1-3   Input a 4 part PIN Code using the ▲/▼/◄/►/RGB and INPUT buttons.A CONFIRMATION BOX will appear. Reenter the same PIN Code. This will complete the PIN Code registration.NOTE: If there is no key input for about 55 seconds while the PIN BOX or the CONFIRMATION BOX are displayed the menu will close. If necessary repeat
the process from 3.-.
Afterwards, anytime the projector is restarted after the power switch is turned off the PIN BOX will be displayed. Enter...

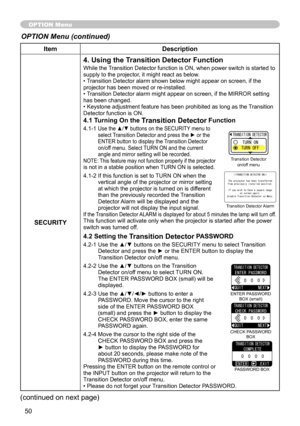

50

ItemDescription
SECURITY
4. Using the Transition Detector Function
While the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below.• Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.• Transition Detector alarm might appear on screen, if the MIRROR setting has been changed.• Keystone adjustment feature has been prohibited as long as the Transition Detector function is ON.
4.1...
