Hitachi Cp-X615 Projector Users Manual



3.1 Configuring and controlling the projector via a web browser (continued)

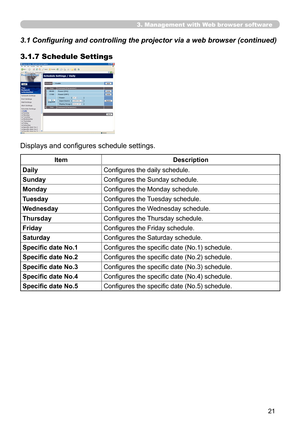

3.1.7 Schedule Settings
Displays and configures schedule settings.
ItemDescription
DailyConfigures the daily schedule.
SundayConfigures the Sunday schedule.
MondayConfigures the Monday schedule.
TuesdayConfigures the Tuesday schedule.
WednesdayConfigures the Wednesday schedule.
ThursdayConfigures the Thursday schedule.
FridayConfigures the Friday schedule.
SaturdayConfigures the Saturday schedule.
Specific date...



3.1 Configuring and controlling the projector via a web browser (continued)
3. Management with Web browser software

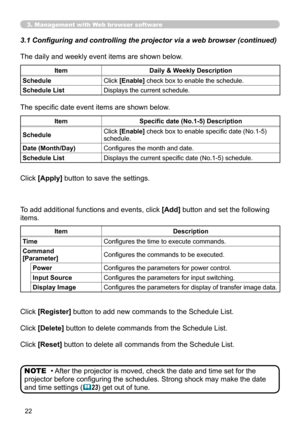

The daily and weekly event items are shown below.
ItemDaily & Weekly Description
ScheduleClick [Enable] check box to enable the schedule.
Schedule ListDisplays the current schedule.
The specific date event items are shown below.
ItemSpecific date (No.1-5) Description
ScheduleClick [Enable] check box to enable specific date (No.1-5) schedule.
Date (Month/Day)Configures the...

3

3. Management with Web browser software
3.1 Configuring and controlling the projector via a web browser (continued)

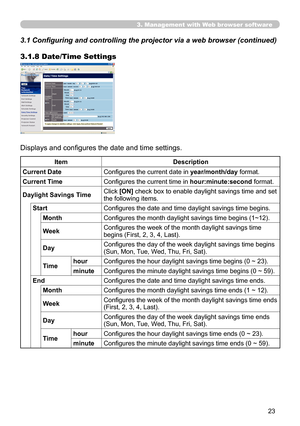

3.1.8 Date/Time Settings
Displays and configures the date and time settings.
ItemDescription
Current DateConfigures the current date in year/month/day format.
Current TimeConfigures the current time in hour:minute:second format.
Daylight Savings TimeClick [ON] check box to enable daylight savings time and set the following items.
StartConfigures the date and time daylight savings...

4

3.1 Configuring and controlling the projector via a web browser (continued)
3. Management with Web browser software

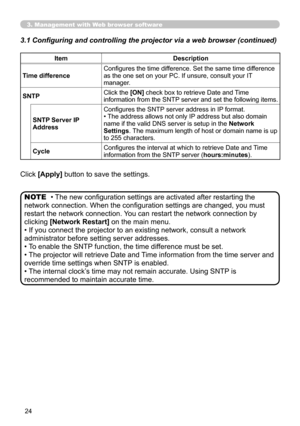

ItemDescription
Time differenceConfigures the time difference. Set the same time difference as the one set on your PC. If unsure, consult your IT manager.
SNTPClick the [ON] check box to retrieve Date and Time information from the SNTP server and set the following items.
SNTP Server IP Address
Configures the SNTP server address in IP format.• The address allows not only IP address...

5

3. Management with Web browser software
3.1 Configuring and controlling the projector via a web browser (continued)

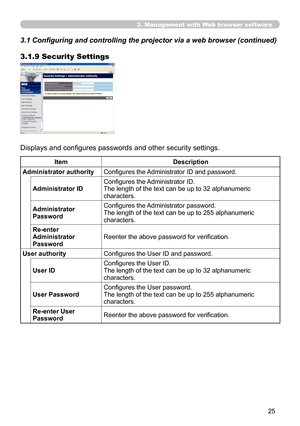

3.1.9 Security Settings
Displays and configures passwords and other security settings.
ItemDescription
Administrator authorityConfigures the Administrator ID and password.
Administrator IDConfigures the Administrator ID. The length of the text can be up to 32 alphanumeric characters.
Administrator Password
Configures the Administrator password. The length of the text can be up to...



3.1 Configuring and controlling the projector via a web browser (continued)
3. Management with Web browser software

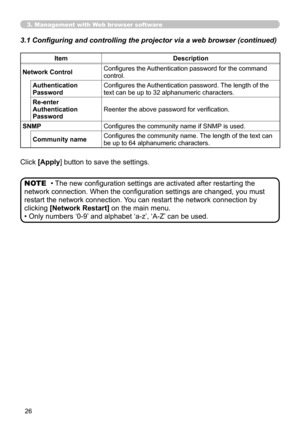

Click [Apply] button to save the settings.
• The new configuration settings are activated after restarting the
network connection. When the configuration settings are changed, you must
restart the network connection. You can restart the network connection by
clicking [Network Restart] on the main menu.
• Only numbers ‘0-9’ and alphabet ‘a-z’, ‘A-Z’ can be used.
NOTE...

7

3. Management with Web browser software
3.1 Configuring and controlling the projector via a web browser (continued)

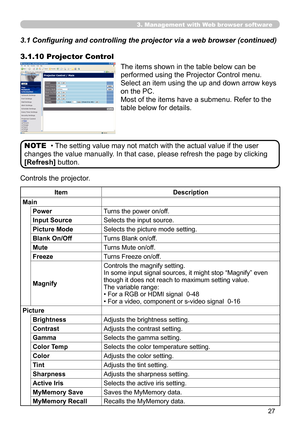

3.1.10 Projector Control
Controls the projector.
ItemDescription
Main
PowerTurns the power on/off.
Input SourceSelects the input source.
Picture ModeSelects the picture mode setting.
Blank On/OffTurns Blank on/off.
MuteTurns Mute on/off.
FreezeTurns Freeze on/off.
Magnify
Controls the magnify setting. In some input signal sources, it might stop “Magnify” even though it does not...

8

3.1 Configuring and controlling the projector via a web browser (continued)
3. Management with Web browser software

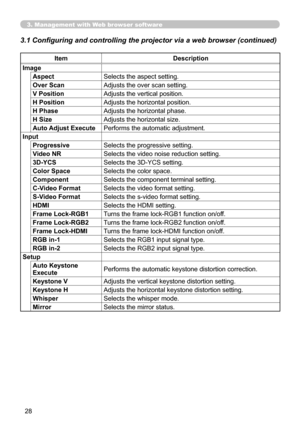

ItemDescription
AspectSelects the aspect setting.
Over ScanAdjusts the over scan setting.
V PositionAdjusts the vertical position.
H PositionAdjusts the horizontal position.
H PhaseAdjusts the horizontal phase.
H SizeAdjusts the horizontal size.
Auto Adjust ExecutePerforms the automatic adjustment.
Input
ProgressiveSelects the progressive setting.
Video NRSelects the video...

9

3.1 Configuring and controlling the projector via a web browser (continued)
3. Management with Web browser software
ItemDescription

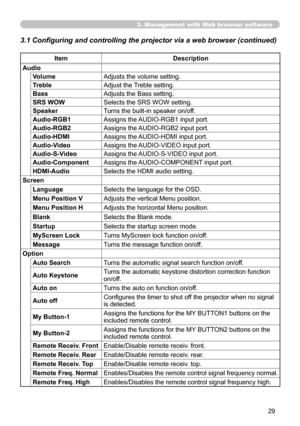

Audio
VolumeAdjusts the volume setting.
TrebleAdjust the Treble setting.
BassAdjusts the Bass setting.
SRS WOWSelects the SRS WOW setting.
SpeakerTurns the built-in speaker on/off.
Audio-RGB1Assigns the AUDIO-RGB1 input port.
Audio-RGB2Assigns the AUDIO-RGB2 input port.
Audio-HDMIAssigns the AUDIO-HDMI input port.
Audio-VideoAssigns the AUDIO-VIDEO input port....

30

3.1 Configuring and controlling the projector via a web browser (continued)

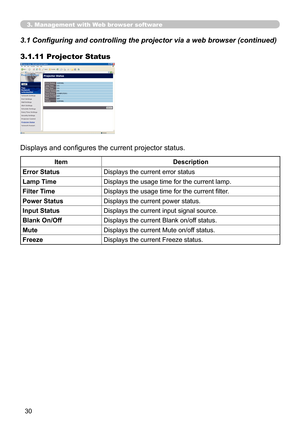

3.1.11 Projector Status
3. Management with Web browser software
Displays and configures the current projector status.
ItemDescription
Error StatusDisplays the current error status
Lamp TimeDisplays the usage time for the current lamp.
Filter TimeDisplays the usage time for the current filter.
Power StatusDisplays the current power status.
Input StatusDisplays the current input signal source.
Blank On/OffDisplays the current...
