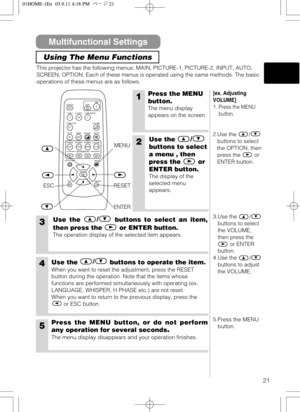

This projector has the following menus: MAIN, PICTURE-1, PICTURE-2, INPUT, AUTO,
SCREEN, OPTION. Each of these menus is operated using the same methods. The basic
operations of these menus are as follows.
1Press the MENU
button.
The menu display
appears on the screen.
2Use the /
buttons to select
a menu , then
press the or
ENTER button.
The display of the
selected menu
appears.
3Use the /
buttons to select an item,
then press the or ENTER button.
The operation display of the selected item appears....

22

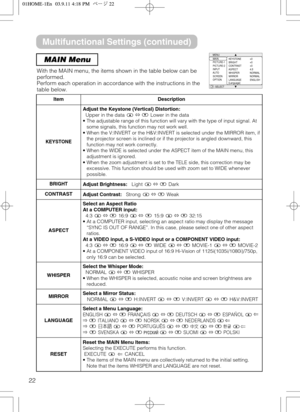

MAIN Menu
With the MAIN menu, the items shown in the table below can be
performed.
Perform each operation in accordance with the instructions in the
table below.
MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
AUTO
SCREEN
OPTIONKEYSTONE
BRIGHT
CONTRAST
ASPECT
WHISPER
MIRROR
LANGUAGE
[Language]+0
+0
+0
4:3
NORMAL
NORMAL
ENGLISH
: SELECT
ItemDescription
KEYSTONE
Adjust the Keystone (Vertical) Distortion:
Upper in the data ñLower in the data
• The adjustable range of this function will vary with the type of input...

23

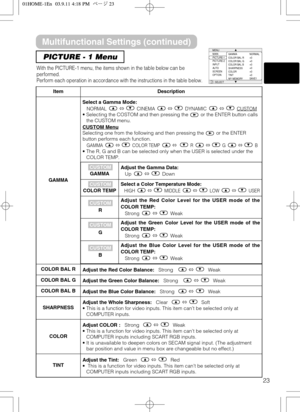

PICTURE - 1 Menu
With the PICTURE-1 menu, the items shown in the table below can be
performed.
Perform each operation in accordance with the instructions in the table below.
MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
AUTO
SCREEN
OPTIONGAMMA
COLOR BAL R
COLOR BAL G
COLOR BAL B
SHARPNESS
COLOR
TINT
MY MEMORY NORMAL
+0
+0
+0
+0
+0
+0
SAVE1
: SELECT
ItemDescription
GAMMASelect a Gamma Mode:
NORMALñCINEMAñDYNAMICñCUSTOM• Selecting the COSTOM and then pressing the  or the ENTER button calls
the CUSTOM menu....

24
ItemDescription

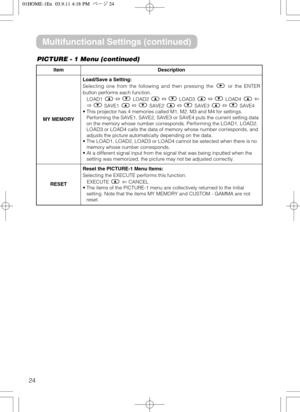

MY MEMORY
Load/Save a Setting:
Selecting one from the following and then pressing the or the ENTER
button performs each function.
LOAD1ñLOAD2ñLOAD3ñLOAD4
ðSAVE1ñSAVE2ñSAVE3ñSAVE4
• This projector has 4 memories called M1, M2, M3 and M4 for settings.
Performing the SAVE1, SAVE2, SAVE3 or SAVE4 puts the current setting data
on the memory whose number corresponds. Performing the LOAD1, LOAD2,
LOAD3 or LOAD4 calls the data of memory whose number corresponds, and
adjusts the picture...

25

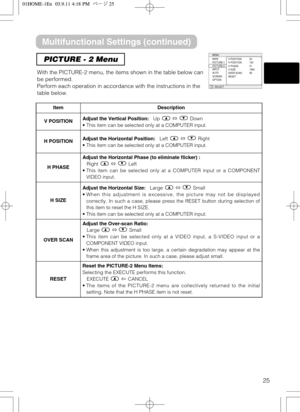

PICTURE - 2 Menu
With the PICTURE-2 menu, the items shown in the table below can
be performed.
Perform each operation in accordance with the instructions in the
table below.
MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
AUTO
SCREEN
OPTIONV POSITION
H POSITION
H PHASE
H SIZE
OVER SCAN
RESET20
142
31
1344
95
: SELECT
ItemDescription
V POSITION Adjust the Vertical Position:Up ñDown
• This item can be selected only at a COMPUTER input.
H POSITIONAdjust the Horizontal Position:Left ñRight
• This item can be...

26

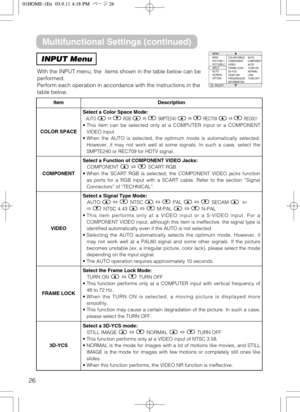

INPUT Menu
With the INPUT menu, the  items shown in the table below can be
performed.
Perform each operation in accordance with the instructions in the
table below.
MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
AUTO
SCREEN
OPTIONCOLOR SPACE
COMPONENT
VIDEO
FRAME LOCK
3D-YCS
VIDEO NR
PROGRESSIVE
INFORMATIONAUTO
COMPONENTAUTO
TURN ON
NORMAL
LOW
TURN OFF
: SELECT
ItemDescription
COLOR SPACE
Select a Color Space Mode:
AUTO ñRGB ñSMPTE240 ñREC709 ñREC601
• This item can be selected only at a COMPUTER input or a...

27
ItemDescription

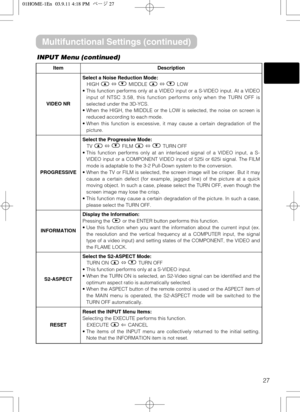

VIDEO NR
Select a Noise Reduction Mode:
HIGH ñMIDDLE ñLOW
• This function performs only at a VIDEO input or a S-VIDEO input. At a VIDEO
input of NTSC 3.58, this function performs only when the TURN OFF is
selected under the 3D-YCS.
• When the HIGH, the MIDDLE or the LOW is selected, the noise on screen is
reduced according to each mode.
• When this function is excessive, it may cause a certain degradation of the
picture.
PROGRESSIVE
Select the Progressive Mode:
TV ñFILM ñTURN OFF...

28
MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
AUTO
SCREEN
OPTIONADJUST
POWER OFF
SEARCH
RESET0 min
TURN ON
: SELECT

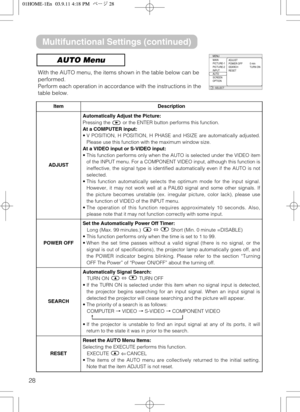

AUTO Menu
With the AUTO menu, the items shown in the table below can be
performed.
Perform each operation in accordance with the instructions in the
table below.
ItemDescription
ADJUST
Automatically Adjust the Picture:
Pressing the  or the ENTER button performs this function.
At a COMPUTER input:
• V POSITION, H POSITION, H PHASE and HSIZE are automatically adjusted.
Please use this function with...

29

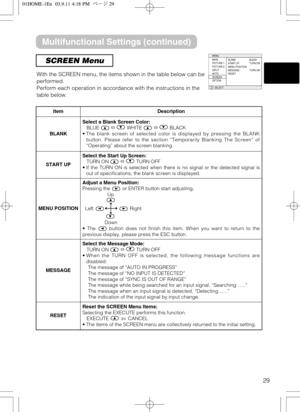

SCREEN Menu
With the SCREEN menu, the items shown in the table below can be
performed.
Perform each operation in accordance with the instructions in the
table below.
: SELECT
MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
AUTO
SCREEN
OPTIONBLANK
START UP
MENU POSITION
MESSAGE
RESETBLACK
TURN ON
TURN ON
ItemDescription
BLANK
Select a Blank Screen Color:
BLUEñWHITEñBLACK
•The blank screen of selected color is displayed by pressing the BLANK
button. Please refer to the section “Temporarily Blanking The Screen”...

30

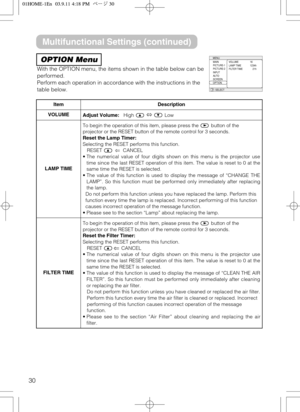

OPTION Menu
With the OPTION menu, the items shown in the table below can be
performed.
Perform each operation in accordance with the instructions in the
table below.
: SELECT
MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
AUTO
SCREEN
OPTIONVOLUME
LAMP TIME
FILTER TIME16
1234h
    21h
ItemDescription
VOLUMEAdjust Volume:High ñLow
LAMP TIME
To begin the operation of this item, please press the  button of the
projector or the RESET button of the remote control for 3 seconds.
Reset the Lamp Timer:
Selecting the...
