An IP prefix list is configured to match the destination address of routing information. You can use the
gateway option to allow only routing information from certain routers to be received. For  gateway option
information, see  Configuring RIP and Configuring OSPF .
A

n IP prefix list, identified by name, can comprise multiple items. Each item, identified by an index
n u m b e r,  c a n  s p e ci f y  a  p re f ix  r a n g e  t o  m a t c h.  A n  i t e m  wi t h  a  s m a l l e r  i n d e x...

 363
Defining filters
Configuration prerequisites
Before you configure this task, you must determine IP-prefix list name, matching address range, and
extcommunity list sequence number.
Defining an IP-prefix list
Defining an IPv4 prefix list
Identified by name, an IPv4 prefix list can comprise multiple items. Each item specifies a prefix range to
match and is identified by an index number.
An item with a smaller index number is matched first. If one item is matched, the IP prefix list is...

 364
Step Command Remarks
2.  Define an IPv6
prefix list.  ip ipv6-prefix
ipv6-prefix-name  [ index  index-number  ]
{  deny  | permit  } ipv6-address prefix-length
[ greater-equal  min-prefix-length  ] [ less-equal
max-prefix-length  ]  Not defined by default.

If all items are set to the
deny mode, no routes can pass the IPv6 prefix list. You must define the  permit ::
0  less-equal 128 item following multiple  deny items to allow other IPv6 routing information to pass.
For example, the...

 365
Defining an extended community list
You can define multiple items for an extended community list that is identified by number. During
matching, the relation between items is logic OR. If routing information matches one of these items, it
passes the extended community list.
To define an extended community list:

Step Command Remarks
1.  Enter system view.
system-view  N/A
2.  Define an extended
community list.  ip extcommunity-list
 ext-comm-list-number  { deny |
permit  } { rt...

 366
To create a routing policy:
Step Command
1.  Enter system view.
system-view
2.  Create a routing policy,
specify a node for it, and
enter routing policy view.  route-policy
route-policy-name  { deny  | permit  } node  node-number

Defining if-match clauses
Follow these guidelines when you define  if-match clauses:
•   The  if-match  clauses of a routing policy node are in logic AND relationship. Routing information
must satisfy all of its  if-match clauses before being executed with...

 367
Step Command Remarks
5.  Match BGP routing information whose AS
path attribute is specified in the AS path
lists.  if-match as-path

AS-PATH-number &  Optional.
Not configured by
default.
6.
  Match BGP routing information whose
community attribute is specified in the
community lists.   if-match community

{  {  basic-community-list-number  |
comm-list-name  } [ whole-match  ] |
adv-community-list-number  }& Optional.
Not configured by
default.
7.
  Match routes having the specified...

 368
Step Command Remarks
6.  Set a cost for routing
information.  apply cost
 [ + | - ] value   Optional.
Not set by default.
7.
  Set a cost type for routing
information.  apply cost-type
 [ external  | internal
|  type-1  | type -2  ]  Optional.
Not set by default.
8.
  Set the extended community
attribute for BGP routing.  apply extcommunity
 { { rt
route-target }& [  additive ] }

Optional.
Not set by default.
9.  Set the next hop.
• Set the next hop for IPv4 routes:
apply ip-address...

 369
combined by the continue clause, the  apply clause configured on the last matching node takes
effect.
•   If you configure the  apply community clause for multiple nodes that are combined by the  continue
clause, the  apply comm-list delete  clause configured on the current node cannot delete the
community attributes of preceding nodes.
To define a  continue clause:

Step Command Remarks
1.  Enter system view.
system-view  N/A
2.  Create a routing policy and
enter routing policy view....

 370
Routing policy configuration examples
Applying a routing policy to IPv4 route redistribution
Network requirements
As shown in Figure 119, S witch B exchanges routing information with Switch A using OSPF, and with
Switch C using IS-IS.
On Switch B, enable route redistribution from IS-IS to OSPF, and apply a routing policy to set the cost of
route 172.17.1.0/24 to 100 and the tag of route 172.17.2.0/24 to 20.

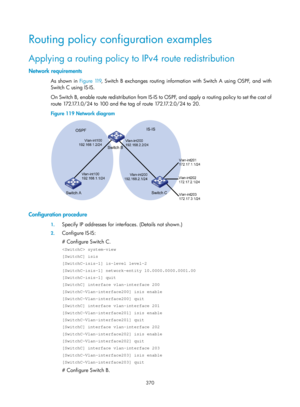

Figure 119  Network diagram


Configuration procedure
1. Specify IP addresses for...

 371
 system-view
[SwitchB] isis
[SwitchB-isis-1] is-level level-2
[SwitchB-isis-1] network-entity 10.0000.0000.0002.00
[SwitchB-isis-1] quit
[SwitchB] interface vlan-interface 200
[SwitchB-Vlan-interface200] isis enable
[SwitchB-Vlan-interface200] quit
3. Configure OSPF and route redistribution:
# Configure OSPF on Switch A.
 system-view
[SwitchA] ospf
[SwitchA-ospf-1] area 0
[SwitchA-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255
[SwitchA-ospf-1-area-0.0.0.0] quit
[SwitchA-ospf-1]...
