HP 5500 Ei 5500 Si Switch Series Configuration Guide

 100
Apply a QoS policy globally
You can apply a QoS policy globally to mirror the traffic in a specified direction on all ports.
To apply a QoS policy globally:

Step Command
1.   Enter system view.
system-view
2.  Apply a QoS policy globally.  qos apply policy
 policy-name  global { inbound  |
outbound  }

For more information about the  qos apply policy command, see ACL and QoS Command Reference .
Apply a QoS policy to the control plane
You can apply a QoS policy to the control plane to...

 101

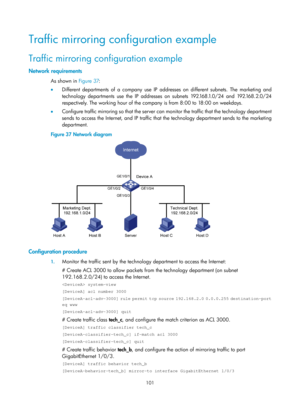

Traffic mirroring configuration example
Traffic mirroring configuration example
Network requirements
As shown in Figure 37:
•   Diff
erent departments of a company use IP addresses on different subnets. The marketing and
technology departments use the IP addresses on subnets 192.168.1.0/24 and 192.168.2.0/24
respectively. The working hour of the company is from 8:00 to 18:00 on weekdays.
•   Configure traffic mirroring so that the server can monitor the traffic that the technology...

 102
[DeviceA-behavior-tech_b] quit
# Create QoS policy tech_p, and associate traffic class  tech_c with traffic behavior  tech_b in the
QoS policy.
[DeviceA] qos policy tech_p
[DeviceA-qospolicy-tech_p] classifier tech_c behavior tech_b
[DeviceA-qospolicy-tech_p] quit
# Apply QoS policy  tech_p to the outgoing packets of GigabitEthernet 1/0/1.
[DeviceA] interface GigabitEthernet 1/0/1
[DeviceA-GigabitEthernet1/0/1] qos apply policy tech_p outbound
[DeviceA-GigabitEthernet1/0/1] quit
2....

 103

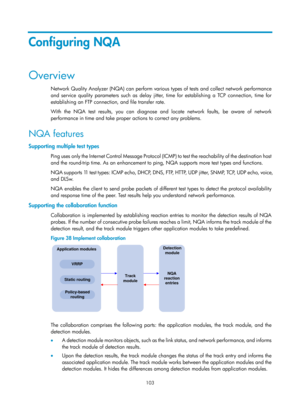

Configuring NQA
Overview
Network Quality Analyzer (NQA) can perform various types of tests and collect network performance
and service quality parameters such as delay jitter,  time for establishing a TCP connection, time for
establishing an FTP connecti on, and file transfer rate.
With the NQA test results, you can diagnose an d locate network faults, be aware of network
performance in time and take proper actions to correct any problems.
NQA features
Supporting multiple test types
Pi n...

 104
•  The application module takes actions when the tracked object changes its state.
The following describes how a static ro ute is monitored through collaboration.
1. NQA monitors the reachability to 192.168.0.88.
2. When 192.168.0.88 becomes unreachable, NQA notifies the track module of the change.
3. The track module notifies the state change to the static routing module
4. The static routing module sets the static route as invalid.
For more information about collaboration and the track...

 105
The counting for the average or accumulate thresh old type is performed per test, but the counting
for the consecutive type is perfor med after the test group starts.
•   Triggered actions
The following actions may be triggered:
{  none —NQA only records events for terminal display; it does not send trap information to the
network management server. NQA DNS tests do not support the action of sending trap
messages. The action to be triggered in DNS tests can only be the default one,  none.
{...

 106
NQA client and server
A device with NQA test groups configured is an NQA client, and the NQA client initiates NQA tests. An
NQA server makes responses to probe packets destined to the specified destination address and port
number.

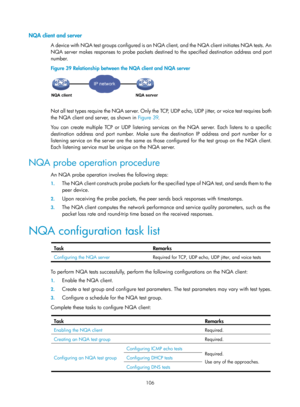

Figure 39  Relationship between the NQA client and NQA server


Not all test types require the NQA server. Only the TCP, UDP echo, UDP jitter, or voice test requires both
the NQA client and server, as shown in  Figure 39.
Y

ou can create multiple TCP or UDP...

 107
Task Remarks
Configuring FTP tests
Configuring HTTP tests
Configuring UDP jitter tests
Configuring SNMP tests
Configuring TCP tests
Configuring UDP echo tests
Configuring voice tests
Configuring DLSw tests
Configuring the collaboration function  Optional.
Configuring threshold monitoring Optional.
Configuring the NQA statistics collection function Optional.
Configuring the history records saving function Optional.
Configuring optional parameters for an NQA test group  Optional....

 108
Step Command Remarks
1.  Enter system view.
system-view  N/A

2.  Enable the NQA client.
nqa agent enable  Optional.
Enabled by default.

Creating an NQA test group
Create an NQA test group before you configure NQA tests.
To create an NQA test group:

Step Command Remarks
1.
  Enter system view.
system-view  N/A

2.  Create an NQA test
group, and enter the
NQA test group view.  nqa
 entry admin-name
operation-tag  In the NQA test group view, you can specify the test
type
You...

 109
Step Command Remarks
6.  Configure the string to be
filled in the data field of each
ICMP echo request.  data-fill
string  Optional.
By default, the string is the hexadecimal
number 00010203040506070809.
7.
  Apply ICMP echo tests to the
specified VPN.  vpn-instance

vpn-instance-name  Optional.
By default, ICMP echo tests apply to the
public network.
Only the HP 5500 EI Switch Series
supports VPN instances.
8.
  Configure the source interface
for ICMP echo requests.  source...
