HP Photosmart B209am Manual

© 2009 Hewlett-Packard Development Company, L.P.
Printed in [English]
HP Photosmart Plus series - B209
2
1
Cyan Cartridge
Magenta Cartridge
Yellow Cartridge
Black Cartridge
564
564
564
564
Apply sticker to printer.
Printed in [Spanish] Printed in [French]
*CD034-90082*
*CD034-90082*
CD034-90082
Important!
Do NOT connect the USB cable until prompted by the software (Windows users only).
When you insert the CD, animations will guide you through the printer setup,
including how to install ink cartridges...

2
17
28
39
410
511
612
Get to know the HP Photosmart
Photo:
Opens the Photo menu where you can view,
edit, print, and save photos.
Scan:
Opens the Scan To menu where you can
select a destination for your scan.
Copy:
Opens the Copy menu where you can select
a copy type or change the copy settings.
Help:
Opens the Help Menu on the display where
you can select a topic to learn more about
it. From the Home screen, touching Help lists
the topics for which help is available.
Directional keys:
Allow...

3
Connect to additional computers on a network
You can connect the HP Photosmart to more than one computer on a small network of computers.
If the HP Photosmart is already connected to a computer on a network, for each additional computer you must
install the HP Photosmart Software. During installation of a wireless connection, the software will automatically
discover the product on the network. Once you have set up the HP Photosm\
art on the network you will not
need to configure it again when you...

4
If the HP Photosmart does not turn on:
Check the power cord.
Make sure the power cord is firmly connected to both the product and the power adapter.
If you are using a power strip, make sure the power strip is turned on. Or, try plugging the product
directly into a power outlet.
Test the power outlet to make sure it is working. Plug in an appliance th\
at you know works, and see if
the appliance has power. If not, then there might be a problem with the power outlet.
If you plugged the product...

5

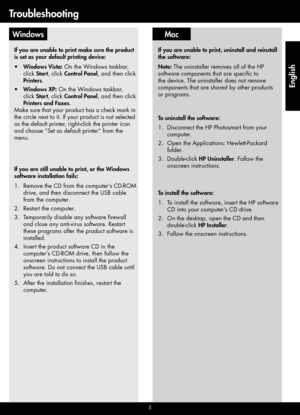

MacWindows
To uninstall the software:
Disconnect the HP Photosmart from your
computer.
Open the Applications: Hewlett-Packard
folder.
Double-click HP Uninstaller. Follow the
onscreen instructions.
1.
2.
3.
To install the software:
To install the software, insert the HP software
CD into your computer’s CD drive.
On the desktop, open the CD and then
double-click HP Installer.
Follow the onscreen instructions.
1.
2.
3.
If you are unable to print, uninstall and reinstall
the software:
Note: The...

6
Here is how to resolve some common issues that can keep the product from\
 joining your network:
You may have picked the wrong network or typed in your network name (SSID) incorrectly. Check these
settings to ensure they are correct.
You may have typed in your WEP key or your WPA encr yption key incorrectly (if you are using
encryption).
Note: If the network name or the WEP/WPA keys are not found automatically during installation, and if
you don’t know them, you can download an application from...

7
Step 4: Use the advanced search feature.
Other network problems after software installation
If the HP Photosmart has been successfully installed, and you are experiencing problems suc\
h as not being
able to print, try the following:
Print a network configuration report using the following instructions: 1.
On the Home screen, touch the right arrow to view more options.
Touch Setup.
Touch Network.
Touch View Network Settings.
Touch Print Network Configuration Page.
a.
b.
c.
d.
e.
Identify the IP...

8
HP printer limited warranty statement
A. Extent of limited warranty   1. Hewlett-Packard (HP) warrants to the end-user customer that the HP products specified above will be free from defects in materials and workmanship for the duration specified above, which dur\
ation begins on the date of purchase by the customer.   2. For software products, HP’s limited warranty applies only to a failure to execute programming inst\
ructions. HP does not warrant that the operation of any product will be...

HP Photosmart Plus série B209
2
1
Cartouche cyan
Cartouche magenta
Cartouche jaune
Cartouche d’encre noire
564
564
564
564
Placez l’autocollant de la
page de couverture sur votre
imprimante.
Important !
NE CONNECTEZ PAS le câble USB tant que vous n’y êtes pas invité par le log\
iciel
d’installation (Utilisateurs de windows uniquement).
Lorsque vous insérez le CD, des animations vous guident tout au long de la
configuration de l'imprimante, notamment en ce qui concerne l'installation
des...

10
17
28
39
410
511
612
Apprenez à connaître l’appareil HP Photosmart
Photo :
Ouvrez le menu Photo, qui vous permet
d’afficher, d’éditer, d’imprimer et de
sauvegarder des photos.
Numériser :
Ouvre le menu Numériser vers, dans lequel
vous pouvez sélectionner une destination
pour votre numérisation.
Copie :
Ouvre le menu Copie, dans lequel vous
pouvez sélectionner un type de copie ou
modifier les paramètres de copie.
Aide :
Ouvre le menu Aide dans lequel vous
pouvez sélectionner une rubrique et...
