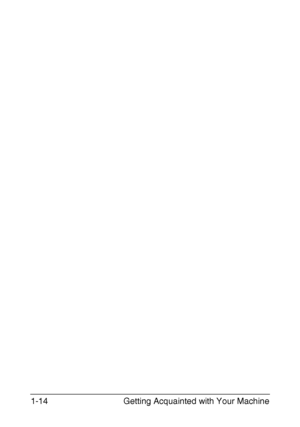

Page 31
Getting Acquainted with Your Machine 1-14 Downloaded From ManualsPrinter.com Manuals

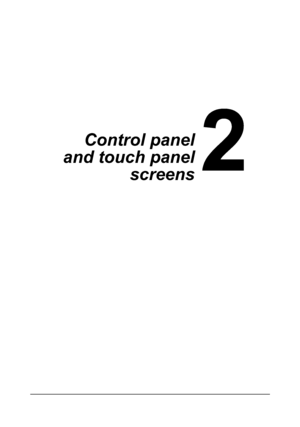

Page 32
2Control panel and touch panel screens Downloaded From ManualsPrinter.com Manuals

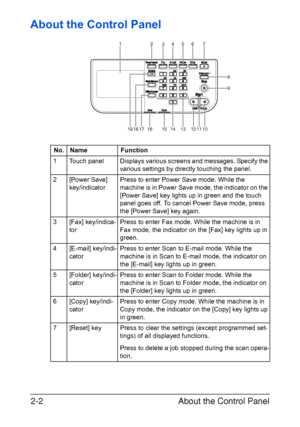

Page 33
![Page 33
About the Control Panel 2-2
About the Control Panel
No. Name Function
1 Touch panel Displays various screens and messages. Specify the
various settings by directly touching the panel.
2 [Power Save]
key/indicatorPress to enter Power Save mode. While the
machine is in Power Save mode, the indicator on the
[Power Save] key lights up in green and the touch
panel goes off. To cancel Power Save mode, press
the [Power Save] key again.
3 [Fax] key/indica-
torPress to enter Fax mode. While the machine is...](http://img.usermanuals.tech/thumb/2790/37230/w300_Konica_Minolta_bizhub_C35-32.png "Page 33
About the Control Panel 2-2
About the Control Panel
No. Name Function
1 Touch panel Displays various screens and messages. Specify the
various settings by directly touching the panel.
2 [Power Save]
key/indicatorPress to enter Power Save mode. While the
machine is in Power Save mode, the indicator on the
[Power Save] key lights up in green and the touch
panel goes off. To cancel Power Save mode, press
the [Power Save] key again.
3 [Fax] key/indica-
torPress to enter Fax mode. While the machine is...")
About the Control Panel 2-2 About the Control Panel No. Name Function 1 Touch panel Displays various screens and messages. Specify the various settings by directly touching the panel. 2 [Power Save] key/indicatorPress to enter Power Save mode. While the machine is in Power Save mode, the indicator on the [Power Save] key lights up in green and the touch panel goes off. To cancel Power Save mode, press the [Power Save] key again. 3 [Fax] key/indica- torPress to enter Fax mode. While the machine is...

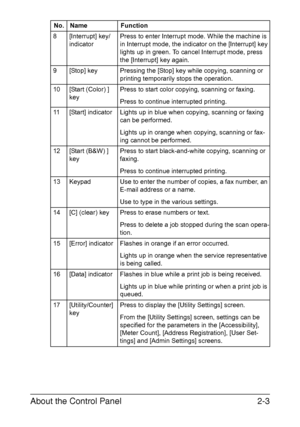

Page 34
![Page 34
About the Control Panel2-3
8 [Interrupt] key/
indicatorPress to enter Interrupt mode. While the machine is
in Interrupt mode, the indicator on the [Interrupt] key
lights up in green. To cancel Interrupt mode, press
the [Interrupt] key again.
9 [Stop] key Pressing the [Stop] key while copying, scanning or
printing temporarily stops the operation.
10 [Start (Color) ]
keyPress to start color copying, scanning or faxing.
Press to continue interrupted printing.
11 [Start] indicator Lights up in blue when...](http://img.usermanuals.tech/thumb/2790/37230/w300_Konica_Minolta_bizhub_C35-33.png "Page 34
About the Control Panel2-3
8 [Interrupt] key/
indicatorPress to enter Interrupt mode. While the machine is
in Interrupt mode, the indicator on the [Interrupt] key
lights up in green. To cancel Interrupt mode, press
the [Interrupt] key again.
9 [Stop] key Pressing the [Stop] key while copying, scanning or
printing temporarily stops the operation.
10 [Start (Color) ]
keyPress to start color copying, scanning or faxing.
Press to continue interrupted printing.
11 [Start] indicator Lights up in blue when...")
About the Control Panel2-3 8 [Interrupt] key/ indicatorPress to enter Interrupt mode. While the machine is in Interrupt mode, the indicator on the [Interrupt] key lights up in green. To cancel Interrupt mode, press the [Interrupt] key again. 9 [Stop] key Pressing the [Stop] key while copying, scanning or printing temporarily stops the operation. 10 [Start (Color) ] keyPress to start color copying, scanning or faxing. Press to continue interrupted printing. 11 [Start] indicator Lights up in blue when...

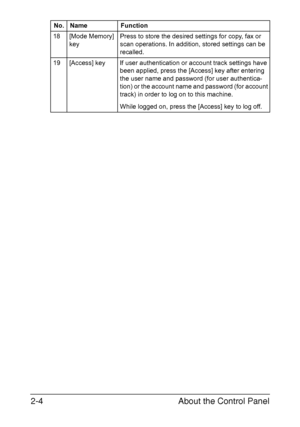

Page 35
![Page 35
About the Control Panel 2-4
18 [Mode Memory]
keyPress to store the desired settings for copy, fax or
scan operations. In addition, stored settings can be
recalled.
19 [Access] key If user authentication or account track settings have
been applied, press the [Access] key after entering
the user name and password (for user authentica-
tion) or the account name and password (for account
track) in order to log on to this machine.
While logged on, press the [Access] key to log off. No. Name Function...](http://img.usermanuals.tech/thumb/2790/37230/w300_Konica_Minolta_bizhub_C35-34.png "Page 35
About the Control Panel 2-4
18 [Mode Memory]
keyPress to store the desired settings for copy, fax or
scan operations. In addition, stored settings can be
recalled.
19 [Access] key If user authentication or account track settings have
been applied, press the [Access] key after entering
the user name and password (for user authentica-
tion) or the account name and password (for account
track) in order to log on to this machine.
While logged on, press the [Access] key to log off. No. Name Function...")
About the Control Panel 2-4 18 [Mode Memory] keyPress to store the desired settings for copy, fax or scan operations. In addition, stored settings can be recalled. 19 [Access] key If user authentication or account track settings have been applied, press the [Access] key after entering the user name and password (for user authentica- tion) or the account name and password (for account track) in order to log on to this machine. While logged on, press the [Access] key to log off. No. Name Function...

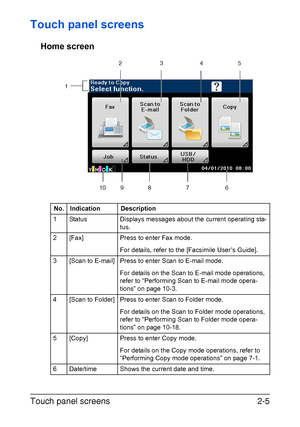

Page 36
![Page 36
Touch panel screens2-5
Touch panel screens
Home screen
No. Indication Description
1 Status Displays messages about the current operating sta-
tus.
2 [Fax] Press to enter Fax mode.
For details, refer to the [Facsimile User’s Guide].
3 [Scan to E-mail] Press to enter Scan to E-mail mode.
For details on the Scan to E-mail mode operations,
refer to “Performing Scan to E-mail mode opera-
tions” on page 10-3.
4 [Scan to Folder] Press to enter Scan to Folder mode.
For details on the Scan to Folder mode...](http://img.usermanuals.tech/thumb/2790/37230/w300_Konica_Minolta_bizhub_C35-35.png "Page 36
Touch panel screens2-5
Touch panel screens
Home screen
No. Indication Description
1 Status Displays messages about the current operating sta-
tus.
2 [Fax] Press to enter Fax mode.
For details, refer to the [Facsimile User’s Guide].
3 [Scan to E-mail] Press to enter Scan to E-mail mode.
For details on the Scan to E-mail mode operations,
refer to “Performing Scan to E-mail mode opera-
tions” on page 10-3.
4 [Scan to Folder] Press to enter Scan to Folder mode.
For details on the Scan to Folder mode...")
Touch panel screens2-5 Touch panel screens Home screen No. Indication Description 1 Status Displays messages about the current operating sta- tus. 2 [Fax] Press to enter Fax mode. For details, refer to the [Facsimile User’s Guide]. 3 [Scan to E-mail] Press to enter Scan to E-mail mode. For details on the Scan to E-mail mode operations, refer to “Performing Scan to E-mail mode opera- tions” on page 10-3. 4 [Scan to Folder] Press to enter Scan to Folder mode. For details on the Scan to Folder mode...

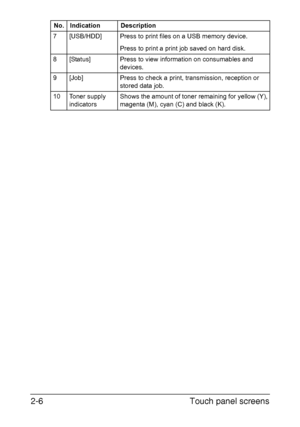

Page 37
![Page 37
Touch panel screens 2-6
7 [USB/HDD] Press to print files on a USB memory device.
Press to print a print job saved on hard disk.
8 [Status] Press to view information on consumables and
devices.
9 [Job] Press to check a print, transmission, reception or
stored data job.
10 Toner supply
indicatorsShows the amount of toner remaining for yellow (Y),
magenta (M), cyan (C) and black (K). No. Indication Description
Downloaded From ManualsPrinter.com Manuals](http://img.usermanuals.tech/thumb/2790/37230/w300_Konica_Minolta_bizhub_C35-36.png "Page 37
Touch panel screens 2-6
7 [USB/HDD] Press to print files on a USB memory device.
Press to print a print job saved on hard disk.
8 [Status] Press to view information on consumables and
devices.
9 [Job] Press to check a print, transmission, reception or
stored data job.
10 Toner supply
indicatorsShows the amount of toner remaining for yellow (Y),
magenta (M), cyan (C) and black (K). No. Indication Description
Downloaded From ManualsPrinter.com Manuals")
Touch panel screens 2-6 7 [USB/HDD] Press to print files on a USB memory device. Press to print a print job saved on hard disk. 8 [Status] Press to view information on consumables and devices. 9 [Job] Press to check a print, transmission, reception or stored data job. 10 Toner supply indicatorsShows the amount of toner remaining for yellow (Y), magenta (M), cyan (C) and black (K). No. Indication Description Downloaded From ManualsPrinter.com Manuals

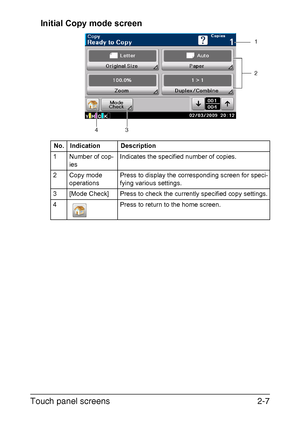

Page 38
![Page 38
Touch panel screens2-7 Initial Copy mode screen
No. Indication Description
1 Number of cop-
iesIndicates the specified number of copies.
2 Copy mode
operationsPress to display the corresponding screen for speci-
fying various settings.
3 [Mode Check] Press to check the currently specified copy settings.
4 Press to return to the home screen.
1
3
2
4
Downloaded From ManualsPrinter.com Manuals](http://img.usermanuals.tech/thumb/2790/37230/w300_Konica_Minolta_bizhub_C35-37.png "Page 38
Touch panel screens2-7 Initial Copy mode screen
No. Indication Description
1 Number of cop-
iesIndicates the specified number of copies.
2 Copy mode
operationsPress to display the corresponding screen for speci-
fying various settings.
3 [Mode Check] Press to check the currently specified copy settings.
4 Press to return to the home screen.
1
3
2
4
Downloaded From ManualsPrinter.com Manuals")
Touch panel screens2-7 Initial Copy mode screen No. Indication Description 1 Number of cop- iesIndicates the specified number of copies. 2 Copy mode operationsPress to display the corresponding screen for speci- fying various settings. 3 [Mode Check] Press to check the currently specified copy settings. 4 Press to return to the home screen. 1 3 2 4 Downloaded From ManualsPrinter.com Manuals

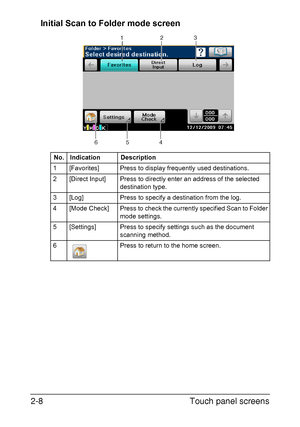

Page 39
![Page 39
Touch panel screens 2-8
Initial Scan to Folder mode screen
No. Indication Description
1 [Favorites] Press to display frequently used destinations.
2 [Direct Input] Press to directly enter an address of the selected
destination type.
3 [Log] Press to specify a destination from the log.
4 [Mode Check] Press to check the currently specified Scan to Folder
mode settings.
5 [Settings] Press to specify settings such as the document
scanning method.
6 Press to return to the home screen.
4 523 16...](http://img.usermanuals.tech/thumb/2790/37230/w300_Konica_Minolta_bizhub_C35-38.png "Page 39
Touch panel screens 2-8
Initial Scan to Folder mode screen
No. Indication Description
1 [Favorites] Press to display frequently used destinations.
2 [Direct Input] Press to directly enter an address of the selected
destination type.
3 [Log] Press to specify a destination from the log.
4 [Mode Check] Press to check the currently specified Scan to Folder
mode settings.
5 [Settings] Press to specify settings such as the document
scanning method.
6 Press to return to the home screen.
4 523 16...")
Touch panel screens 2-8 Initial Scan to Folder mode screen No. Indication Description 1 [Favorites] Press to display frequently used destinations. 2 [Direct Input] Press to directly enter an address of the selected destination type. 3 [Log] Press to specify a destination from the log. 4 [Mode Check] Press to check the currently specified Scan to Folder mode settings. 5 [Settings] Press to specify settings such as the document scanning method. 6 Press to return to the home screen. 4 523 16...

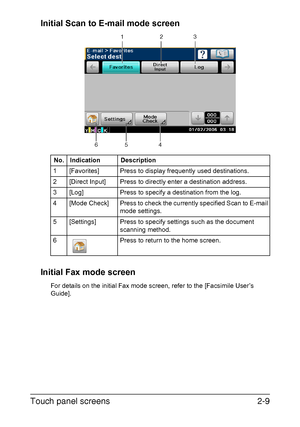

Page 40
![Page 40
Touch panel screens2-9 Initial Scan to E-mail mode screen
Initial Fax mode screen
For details on the initial Fax mode screen, refer to the [Facsimile User’s
Guide].No. Indication Description
1 [Favorites] Press to display frequently used destinations.
2 [Direct Input] Press to directly enter a destination address.
3 [Log] Press to specify a destination from the log.
4 [Mode Check] Press to check the currently specified Scan to E-mail
mode settings.
5 [Settings] Press to specify settings such as the...](http://img.usermanuals.tech/thumb/2790/37230/w300_Konica_Minolta_bizhub_C35-39.png "Page 40
Touch panel screens2-9 Initial Scan to E-mail mode screen
Initial Fax mode screen
For details on the initial Fax mode screen, refer to the [Facsimile User’s
Guide].No. Indication Description
1 [Favorites] Press to display frequently used destinations.
2 [Direct Input] Press to directly enter a destination address.
3 [Log] Press to specify a destination from the log.
4 [Mode Check] Press to check the currently specified Scan to E-mail
mode settings.
5 [Settings] Press to specify settings such as the...")
Touch panel screens2-9 Initial Scan to E-mail mode screen Initial Fax mode screen For details on the initial Fax mode screen, refer to the [Facsimile User’s Guide].No. Indication Description 1 [Favorites] Press to display frequently used destinations. 2 [Direct Input] Press to directly enter a destination address. 3 [Log] Press to specify a destination from the log. 4 [Mode Check] Press to check the currently specified Scan to E-mail mode settings. 5 [Settings] Press to specify settings such as the...
