C0363CONNECTOR DETAILS FREELANDER 03MY C036 3 Description:Switch-Sunroof-Front Location:Behind centre console Colour:BLUE Gender:Female P6584 C0328 C0074C0089 C0363 C0250 C0354 C0249 CavColCct 1B6 2SRALL 3SALL 4GALL 6RO6
Page 372
CONNECTOR DETAILSC0365 FREELANDER 03MY C0 365 Description:Switch-Hill descent Location:Behind gear lever gaiter Colour:LIGHT GREY Gender:Female P6639 C0365 CavColCct 1PS24 2W24
Page 373
C0369CONNECTOR DETAILS FREELANDER 03MY C036 9 Description:Speakers-Front - 3 Door Location:Behind front door trim panel Colour:BLACK Gender:Female P6578 C0369 CavColCct 1OB8 2OK8
Page 374
CONNECTOR DETAILSC0369 FREELANDER 03MY C0 369 Description:Speakers-Front - 5 Door Location:Behind front door trim panel Colour:BLACK Gender:Female C0369 P6642 CavColCct 1OB8 2OK8
Page 375
C0371CONNECTOR DETAILS FREELANDER 03MY C037 1 Description:Engine control module (ECM) Location:Inside E-box Colour:BLACK Gender:Female P6649 C0293 C0371C0932 CavColCct 1BYALL 2BWALL 3BALL 4BOALL 5YALL 6UALL 7WKALL 8SBALL 9BPALL 10 BU ALL 12 BS ALL 13 GY ALL 14 UY ALL 15 KB ALL 16 OY ALL 17 UG ALL 18 BS ALL 19 BS ALL 20 BO ALL 21 WO ALL 23 UK ALL 27 YB ALL 28 B ALL 29 W ALL 30 NP ALL 31 BU ALL 32 BP ALL 33 B ALL 34 UN ALL 35 UW ALL 36 GN ALL 38 OY ALL 42 KU ALL 44 BLG ALL 45 KG ALL 46 GU ALL 47 KO ALL
Page 376
CONNECTOR DETAILSC0371 FREELANDER 03MY 48 R ALL 49 UY ALL 50 LGS ALL 51 GK ALL 52 YR ALL 53 PB ALL 54 WU ALL 56 K ALL 57 YN ALL 58 YR ALL 59 YN ALL 60 Y ALL 61 BR ALL 62 BG ALL 63 B ALL 64 BR ALL 66 NK ALL 67 B ALL 69 UR ALL 70 OU ALL 71 OG ALL 72 OS ALL 73 GW ALL 74 GU ALL 75 KB ALL 76 BG ALL 77 BG ALL 78 YW ALL 80 BK ALL 81 UO ALL 82 UG ALL 84 OU ALL 85 BS ALL 88 YU ALL 89 YP ALL 90 YG ALL CavColCct
Page 377

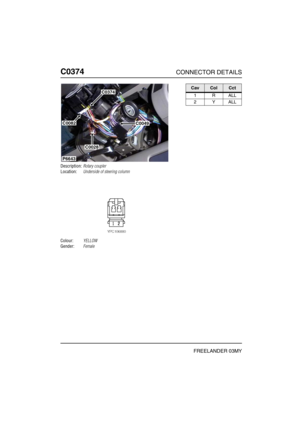

C0374CONNECTOR DETAILS FREELANDER 03MY C037 4 Description:Rotary coupler Location:Underside of steering column Colour:YELLOW Gender:Female P6643 C0374 C0082 C0028 C0049 CavColCct 1RALL 2YALL
Page 378

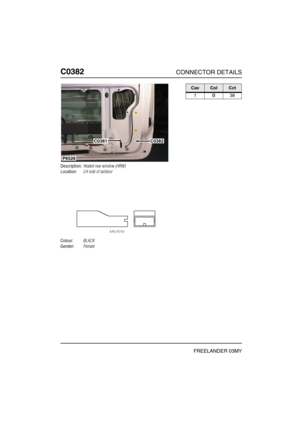

CONNECTOR DETAILSC0381 FREELANDER 03MY C0 381 Description:Heated rear window (HRW) Location:LH side of taildoor Colour:BLACK Gender:Female C0381C0382 P6526 CavColCct 1N38
Page 379

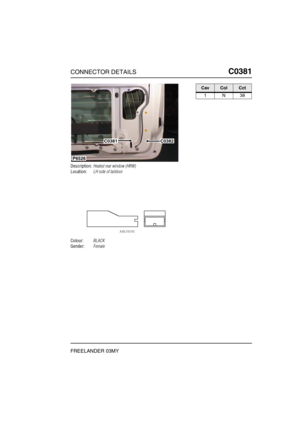

C0382CONNECTOR DETAILS FREELANDER 03MY C038 2 Description:Heated rear window (HRW) Location:LH side of taildoor Colour:BLACK Gender:Female C0381C0382 P6526 CavColCct 1B38
Page 380

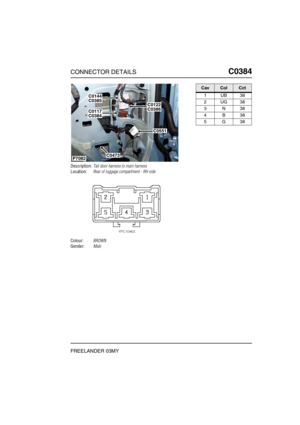

CONNECTOR DETAILSC0384 FREELANDER 03MY C0 384 Description:Tail door harness to main harness Location:Rear of luggage compartment - RH side Colour:BROWN Gender:Male C0473 C0122C0386 C0144C0385 C0117C0384 C0551 P7082 CavColCct 1UB38 2UG38 3N38 4B38 5G38
