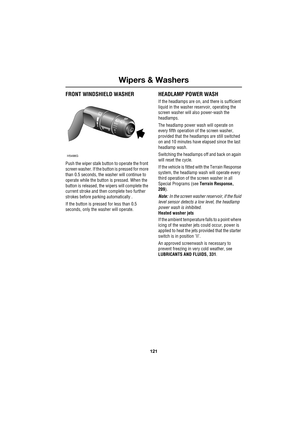

Land Rover Lr3 Owners Handbook 2004 Rover

121
Wipers & Washers
R
FRONT WINDSHIELD WASHER
Push the wiper stalk button to operate the front
screen washer. If the button is pressed for more
than 0.5 seconds, the washer will continue to
operate while the button is pressed. When the
button is released, the wipers will complete the
current stroke and then complete two further
strokes before parking automatically .
If the button is pressed for less than 0.5
seconds, only the washer will operate.
HEADLAMP POWER WASH
If the headlamps are on, and...

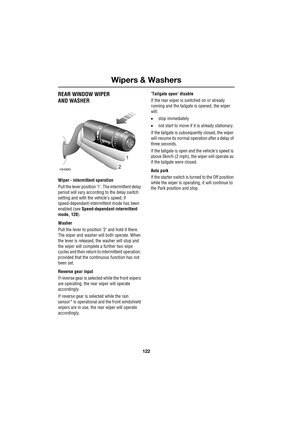

Wipers & Washers
122
L
REAR WINDOW WIPER
AND WASHER
Wiper - intermittent operation
Pull the lever position ’1’. The intermittent delay
period will vary according to the delay switch
setting and with the vehicle’s speed, if
speed-dependant-intermittent mode has been
enabled (see Speed-dependant-intermittent
mode, 120).
Washer
Pull the lever to position ’2’ and hold it there.
The wiper and washer will both operate. When
the lever is released, the washer will stop and
the wiper will complete a...

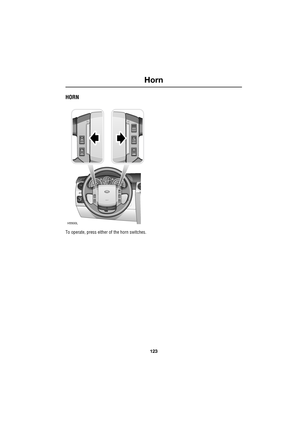

123
Horn
R
Horn
HORN
To operate, press either of the horn switches.
H5500L

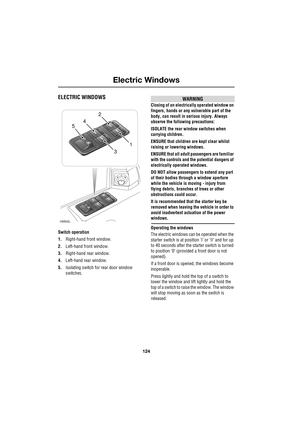

Electric Windows
124
L
Electric Windows
ELECTRIC WINDOWS
Switch operation
1.Right-hand front window.
2.Left-hand front window.
3.Right-hand rear window.
4.Left-hand rear window.
5.Isolating switch for rear door window
switches.
WARNING
Closing of an electrically operated window on
fingers, hands or any vulnerable part of the
body, can result in serious injury. Always
observe the following precautions:
ISOLATE the rear window switches when
carrying children.
ENSURE that children are kept clear whilst...

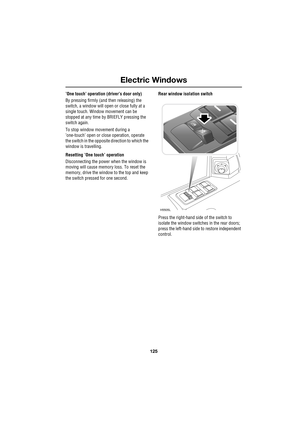

125
Electric Windows
R
’One touch’ operation (driver’s door only)
By pressing firmly (and then releasing) the
switch, a window will open or close fully at a
single touch. Window movement can be
stopped at any time by BRIEFLY pressing the
switch again.
To stop window movement during a
’one-touch’ open or close operation, operate
the switch in the opposite direction to which the
window is travelling.
Resetting ’One touch’ operation
Disconnecting the power when the window is
moving will cause memory...

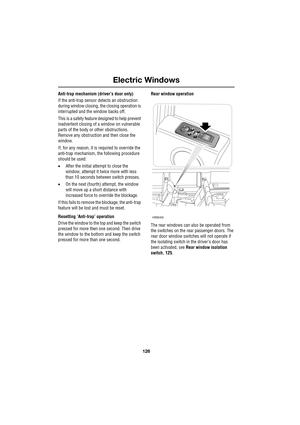

Electric Windows
126
L
Anti-trap mechanism (driver’s door only)
If the anti-trap sensor detects an obstruction
during window closing, the closing operation is
interrupted and the window backs off.
This is a safety feature designed to help prevent
inadvertent closing of a window on vulnerable
parts of the body or other obstructions.
Remove any obstruction and then close the
window.
If, for any reason, it is required to override the
anti-trap mechanism, the following procedure
should be used:...

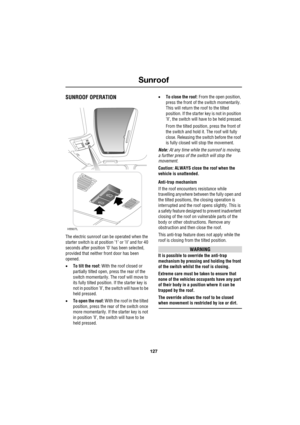

127
Sunroof
R
Sunroof
SUNROOF OPERATION
The electric sunroof can be operated when the
starter switch is at position ’1’ or ’II’ and for 40
seconds after position ’0’ has been selected,
provided that neither front door has been
opened.
•To tilt the roof: With the roof closed or
partially tilted open, press the rear of the
switch momentarily. The roof will move to
its fully tilted position. If the starter key is
not in position ’ll’, the switch will have to be
held pressed.
•To open the roof: With...

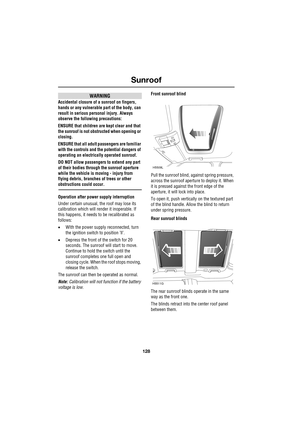

Sunroof
128
L
WARNING
Accidental closure of a sunroof on fingers,
hands or any vulnerable part of the body, can
result in serious personal injury. Always
observe the following precautions:
ENSURE that children are kept clear and that
the sunroof is not obstructed when opening or
closing.
ENSURE that all adult passengers are familiar
with the controls and the potential dangers of
operating an electrically operated sunroof.
DO NOT allow passengers to extend any part
of their bodies through the...

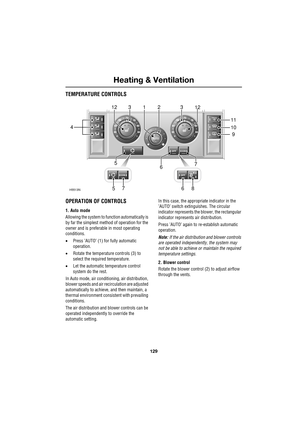

129
Heating & Ventilation
R
Heating & VentilationTEMPERATURE CONTROLS
OPERATION OF CONTROLS
1. Auto mode
Allowing the system to function automatically is
by far the simplest method of operation for the
owner and is preferable in most operating
conditions.
•Press ’AUTO’ (1) for fully automatic
operation.
•Rotate the temperature controls (3) to
select the required temperature.
•Let the automatic temperature control
system do the rest.
In Auto mode, air conditioning, air distribution,
blower speeds...

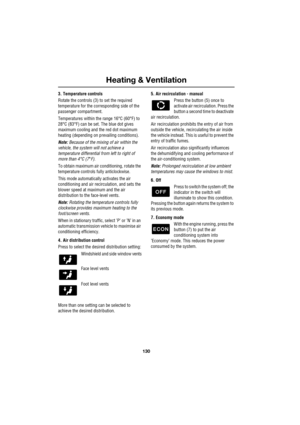

Heating & Ventilation
130
L
3. Temperature controls
Rotate the controls (3) to set the required
temperature for the corresponding side of the
passenger compartment.
Temperatures within the range 16°C (60°F) to
28°C (83°F) can be set. The blue dot gives
maximum cooling and the red dot maximum
heating (depending on prevailing conditions).
Note: Because of the mixing of air within the
vehicle, the system will not achieve a
temperature differential from left to right of
more than 4°C (7°F).
To obtain...
