Lawn Mower Stiga COMBI 45 45S 45S E 8211-3442-04 Instructions Manual

DEUTSCHD
COMBI
8211-3442-044545S
45S
E

3
SVENSKAS
2.
3.4. A
B
1.
5.
1 23
4
56
ADD
FULL
FULL
ADD
6. LS45
0,15 l.
ADD
FULL
7. ES40

4
SVENSKA S
3x
STOP
10.
3x
9. ES40
11 .
8. LS45
G
I*
12.
F
A
A
A
13. LS45
14. ES4015. LS45
F

5
SVENSKAS
20. ES40
16. ES4017. Left18. Right
19. LS45
22.21.
0,75 mm
23.24.

6
SVENSKA S
27.
25.
28.
45 Nm
26.
29.
P
S

8
ENGLISHGB

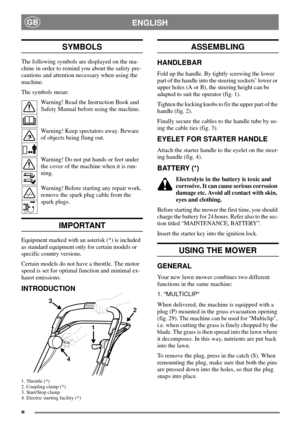

SYMBOLS
The following symbols are displayed on the ma-
chine in order to remind you about the safety pre-
cautions and attention necessary when using the
machine.
The symbols mean:
Warning! Read the Instruction Book and
Safety Manual before using the machine.
Warning! Keep spectators away. Beware
of objects being flung out.
Warning! Do not put hands or feet under
the cover of the machine when it is run-
ning.
Warning! Before starting any repair work,
remove the spark plug cable from the
spark...

9
ENGLISHGB
2. COLLECTION
Assemble the enclosed grass collector (fig. 5).
Open the cover, remove the plug and this time
hook the collector in place onto the back of the ma-
chine.
During cutting, the grass is collected in the collec-
tor. Empty the grass on the compost heap or spread
it out on the flower bead as fertilizer. The machine
is also excellent for collecting leaves in the au-
tumn.
BEFORE STARTING
FILL THE CRANKCASE WITH OIL
The lawn mower is delivered without any
oil in the motor crankcase....

10
ENGLISHGB
2. If the lawn mower is left unattended to, remove
the lead from the spark plug. Also remove the
starter key (*).
If the start/stop loop no longer works,
stop the engine by removing the lead
from the spark plug. Immediately take
the lawn mower to an authorised work-
shop for repairs.
REAR WHEEL DRIVE (*)
Engage the drive by pressing coupling clampI
against the steering handle. Disengage the drive by
releasing coupling clampI(fig. 10).
CUTTING HEIGHT
Shut off the motor before adjusting the...

11
ENGLISHGB
CHANGING OIL
Replace the oil when the engine is warm
and the fuel tank is empty. Take care
while draining as the oil is hot, this is to
prevent burns.
Change the oil the first time after 5 hours of oper-
ation, and subsequently after every 50 hours of op-
eration or once a season. Remove the dip stick, tilt
the mower and let the oil run out into a contain-
er.Be careful not to let any oil run on to the grass.
Fill with new oil: use oil of SAE 30 or SAE 10W-
30 quality. The crankcase holds...

12
ENGLISHGB

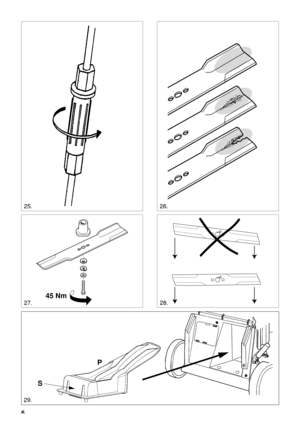

Always check the blade(s) after an impact.First
disconnect the ignition cable.If the blade system
has been damaged the defective parts must be
changed. Always use genuine spare parts.
To change blades, loosen the blade bolt. Mount the
new blade so that it sits in the same way as the old
one and tighten the blade bolt (fig. 27). Tightening
torque: 45 Nm.
When replacing the blade, the blade bolt should
also be replaced.
The guarantee does not cover damage to the blade,
blade holder or engine...
