Lawn Tractor 8211 0276 06 Stiga Park Pro20 Pro16 Royal President Comfort Operators Manual

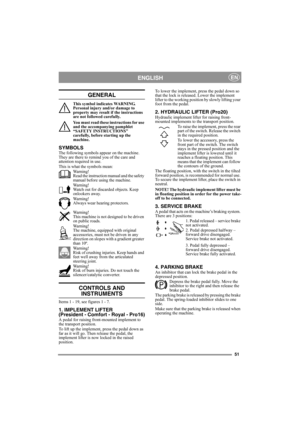

51
ENGLISHEN
GENERAL
This symbol indicates WARNING.
Personal injury and/or damage to
property may result if the instructions
are not followed carefully.
You must read these instructions for use
and the accompanying pamphlet
“SAFETY INSTRUCTIONS”
carefully, before starting up the
machine.
SYMBOLSThe following symbols appear on the machine.
They are there to remind you of the care and
attention required in use.
This is what the symbols mean:
Warning!
Read the instruction manual and the safety...

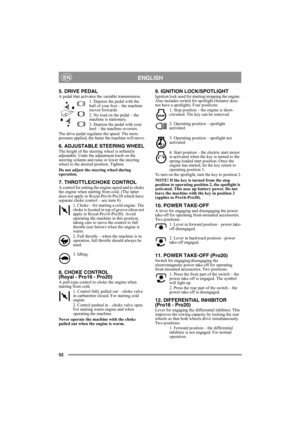

52
ENGLISHEN
5. DRIVE PEDALA pedal that activates the variable transmission.
1. Depress the pedal with the
ball of your foot – the machine
moves forwards.
2. No load on the pedal – the
machine is stationary.
3. Depress the pedal with your
heel – the machine reverses.
The drive pedal regulates the speed. The more
pressure applied, the faster the machine will move.
6. ADJUSTABLE STEERING WHEELThe height of the steering wheel is infinitely
adjustable. Undo the adjustment knob on the
steering column...

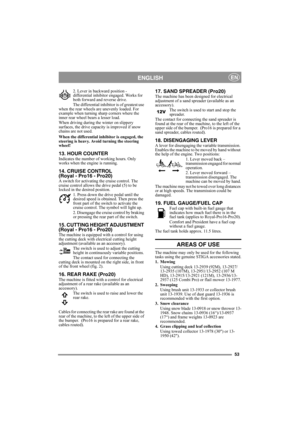

53
ENGLISHEN
2. Lever in backward position -
differential inhibitor engaged. Works for
both forward and reverse drive.
The differential inhibitor is of greatest use
when the rear wheels are unevenly loaded. For
example when turning sharp corners where the
inner rear wheel bears a lesser load.
When driving during the winter on slippery
surfaces, the drive capacity is improved if snow
chains are not used.
When the differential inhibitor is engaged, the
steering is heavy. Avoid turning the steering...

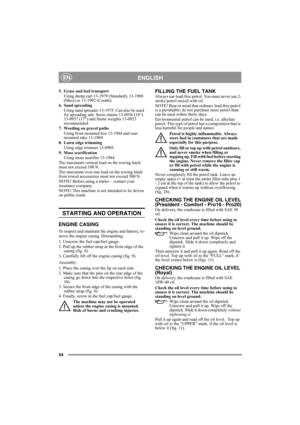

54
ENGLISHEN
5. Grass and leaf transport
Using dump cart 13-1979 (Standard), 13-1988
(Maxi) or 13-1992 (Combi).
6. Sand spreading
Using sand spreader 13-1975. Can also be used
for spreading salt. Snow chains 13-0936 (16“)
13-0937 (17“) and frame weights 13-0923
recommended.
7. Weeding on gravel paths
Using front mounted hoe 13-1944 and rear-
mounted rake 13-1969.
8. Lawn edge trimming
Using edge trimmer 13-0905.
9. Moss scarification
Using moss scarifier 13-1984.
The maximum vertical load on the...

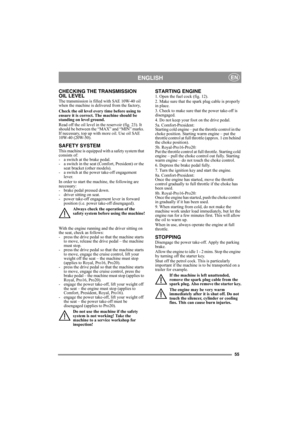

55
ENGLISHEN
CHECKING THE TRANSMISSION
OIL LEVEL
The transmission is filled with SAE 10W-40 oil
when the machine is delivered from the factory,
Check the oil level every time before using to
ensure it is correct. The machine should be
standing on level ground.
Read off the oil level in the reservoir (fig. 23). It
should be between the “MAX” and “MIN” marks.
If necessary, top up with more oil. Use oil SAE
10W-40 (20W-50).
SAFETY SYSTEMThis machine is equipped with a safety system that
consists of:...

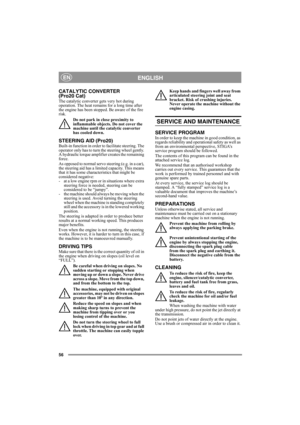

56
ENGLISHEN
CATALYTIC CONVERTER
(Pro20 Cat)
The catalytic converter gets very hot during
operation. The heat remains for a long time after
the engine has been stopped. Be aware of the fire
risk.
Do not park in close proximity to
inflammable objects. Do not cover the
machine until the catalytic converter
has cooled down.
STEERING AID (Pro20)Built-in function in order to facilitate steering. The
operator only has to turn the steering wheel gently.
A hydraulic torque amplifier creates the...

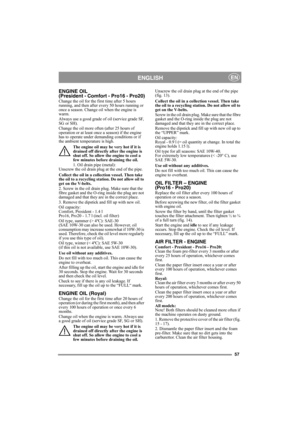

57
ENGLISHEN
ENGINE OIL
(President - Comfort - Pro16 - Pro20)
Change the oil for the first time after 5 hours
running, and then after every 50 hours running or
once a season. Change oil when the engine is
warm.
Always use a good grade of oil (service grade SF,
SG or SH).
Change the oil more often (after 25 hours of
operation or at least once a season) if the engine
has to operate under demanding conditions or if
the ambient temperature is high.
The engine oil may be very hot if it is
drained off...

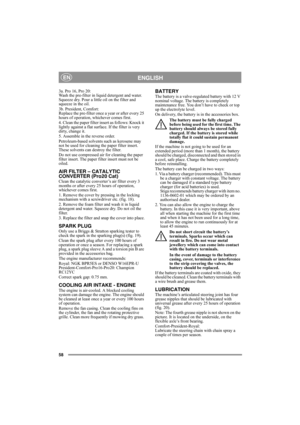

58
ENGLISHEN
3a. Pro 16, Pro 20:
Wash the pre-filter in liquid detergent and water.
Squeeze dry. Pour a little oil on the filter and
squeeze in the oil.
3b. President, Comfort:
Replace the pre-filter once a year or after every 25
hours of operation, whichever comes first.
4. Clean the paper filter insert as follows: Knock it
lightly against a flat surface. If the filter is very
dirty, change it.
5. Assemble in the reverse order.
Petroleum-based solvents such as kerosene may
not be used for cleaning...

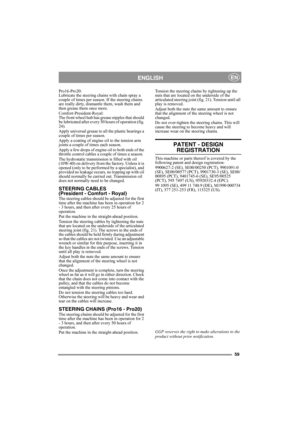

59
ENGLISHEN
Pro16-Pro20:
Lubricate the steering chains with chain spray a
couple of times per season. If the steering chains
are really dirty, dismantle them, wash them and
then grease them once more.
Comfort-President-Royal:
The front wheel hub has grease nipples that should
be lubricated after every 50 hours of operation (fig.
24).
Apply universal grease to all the plastic bearings a
couple of times per season.
Apply a coating of engine oil to the tension arm
joints a couple of times each...

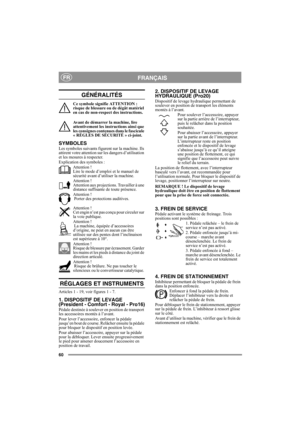

60
FRANÇAISFR
GÉNÉRALITÉS
Ce symbole signifie ATTENTION :
risque de blessure ou de dégât matériel
en cas de non-respect des instructions.
Avant de démarrer la machine, lire
attentivement les instructions ainsi que
les consignes contenues dans le fascicule
« RÈGLES DE SÉCURITÉ » ci-joint.
SYMBOLESLes symboles suivants figurent sur la machine. Ils
attirent votre attention sur les dangers d’utilisation
et les mesures à respecter.
Explication des symboles :
Attention !
Lire le mode d’emploi et le...
