37
Lenovo IdeaPad U160/U165

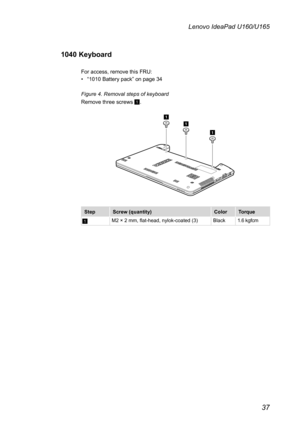

1040 Keyboard
For access, remove this FRU:
• “1010 Battery pack” on page 34
Figure 4. Removal steps of keyboard
Remove three screws 1.
1
11
StepScrew (quantity)ColorTorque
1M2 × 2 mm, flat-head, nylok-coated (3)Black1.6 kgfcm

38
IdeaPad U160/U165 Hardware Maintenance Manual

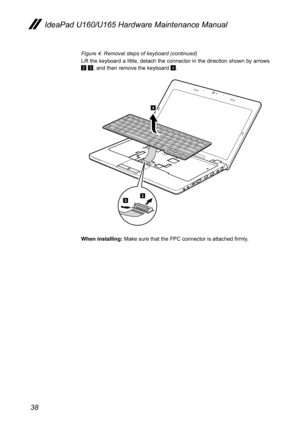

Figure 4. Removal steps of keyboard (continued)
Lift the keyboard a little, detach the connector in the direction shown by arrows
2 3, and then remove the keyboard 4.

4

23

When installing: Make sure that the FPC connector is attached firmly.

39
Lenovo IdeaPad U160/U165

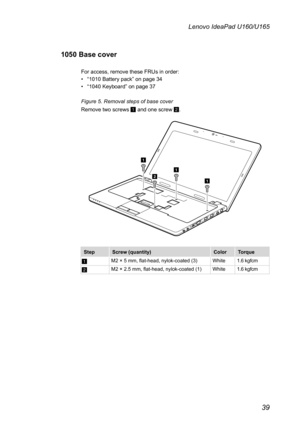

1050 Base cover
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1040 Keyboard” on page 37
Figure 5. Removal steps of base cover
Remove two screws 1 and one screw 2.

21
1
1

StepScrew (quantity)ColorTorque
1M2 × 5 mm, flat-head, nylok-coated (3)White1.6 kgfcm
2M2 × 2.5 mm, flat-head, nylok-coated (1)White1.6 kgfcm

40
IdeaPad U160/U165 Hardware Maintenance Manual

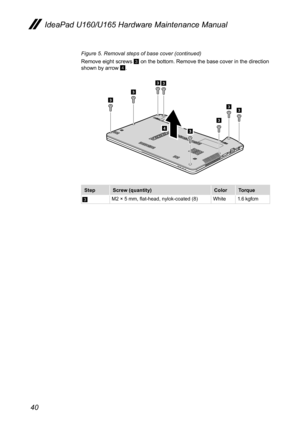

Figure 5. Removal steps of base cover (continued)
Remove eight screws 3 on the bottom. Remove the base cover in the direction shown by arrow 4.
3
33
34
3
3
3
3
StepScrew (quantity)ColorTorque
3M2 × 5 mm, flat-head, nylok-coated (8)White 1.6 kgfcm

41
Lenovo IdeaPad U160/U165

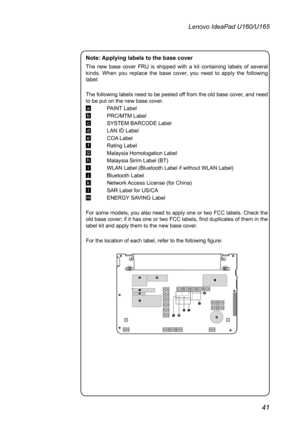

Note: Applying labels to the base cover
The  new  base  cover  FRU  is  shipped  with  a  kit  containing  labels  of  several
kinds.  When  you  replace  the  base  cover,  you  need  to  apply  the  following
label:
The following labels need to be peeled off from the old base cover, and need
to be put on the new base cover.
a PAINT Label
b PRC/MTM Label
c SYSTEM BARCODE Label
d LAN ID Label
e COA Label
f Rating Labelg Malaysia Homologation Label
h Malaysia Sirim Label...

42
IdeaPad U160/U165 Hardware Maintenance Manual

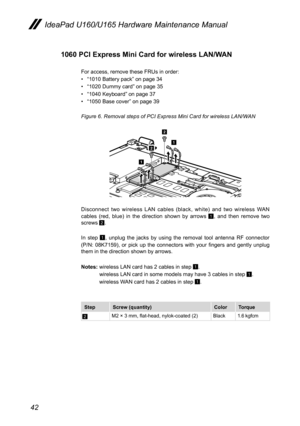

1060 PCI Express Mini Card for wireless LAN/WAN
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1020 Dummy card” on page 35
• “1040 Keyboard” on page 37
• “1050 Base cover” on page 39
Figure 6. Removal steps of PCI Express Mini Card for wireless LAN/WAN
2
2
1
1
Disconnect  two  wireless  LAN  cables  (black,  white)  and  two  wireless  WAN cables  (red,  blue)  in  the  direction  shown  by  arrows 1,  and  then  remove  two...

43
Lenovo IdeaPad U160/U165

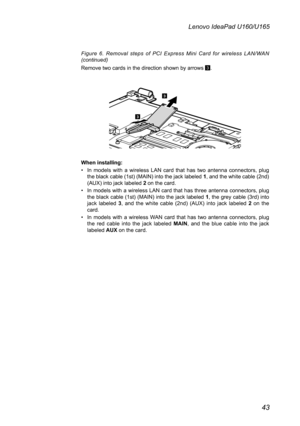

Figure  6.  Removal  steps  of  PCI  Express  Mini  Card  for  wireless LAN/WAN (continued)
Remove two cards in the direction shown by arrows 3.
3
3
When installing:
In  models  with  a  wireless  LAN  card  that  has  two  antenna  connectors,  plug • the black cable (1st) (MAIN) into the jack labeled 1, and the white cable (2nd) (AUX) into jack labeled 2 on the card.
In models with a wireless LAN card that has three antenna connectors, plug • the black cable (1st) (MAIN)...

44
IdeaPad U160/U165 Hardware Maintenance Manual

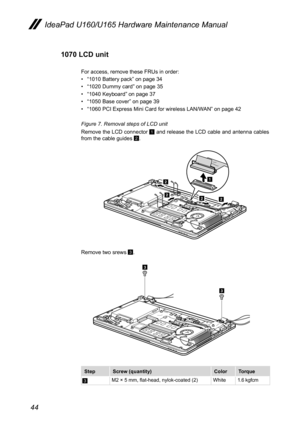

1070 LCD unit
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1020 Dummy card” on page 35
• “1040 Keyboard” on page 37
• “1050 Base cover” on page 39
• “1060 PCI Express Mini Card for wireless LAN/WAN” on page 42
Figure 7. Removal steps of LCD unit
Remove the LCD connector 1 and release the LCD cable and antenna cables from the cable guides 2.
2
2
22
1
Remove two srews 3.
3
3
StepScrew (quantity)ColorTorque
3M2 × 5 mm,...

45
Lenovo IdeaPad U160/U165

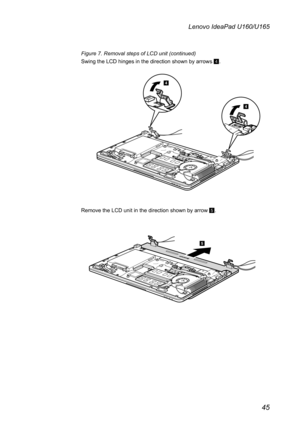

Figure 7. Removal steps of LCD unit (continued)
Swing the LCD hinges in the direction shown by arrows 4.
4
4
Remove the LCD unit in the direction shown by arrow 5.
5

46
IdeaPad U160/U165 Hardware Maintenance Manual

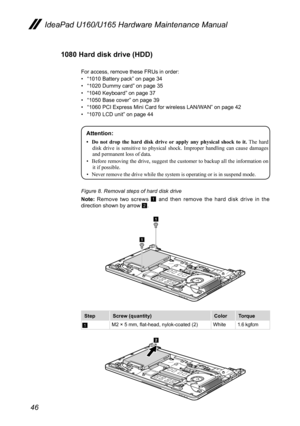

1080 Hard disk drive (HDD)
For access, remove these FRUs in order:• “1010 Battery pack” on page 34• “1020 Dummy card” on page 35• “1040 Keyboard” on page 37• “1050 Base cover” on page 39• “1060 PCI Express Mini Card for wireless LAN/WAN” on page 42• “1070 LCD unit” on page 44
Attention:
•	 Do	not 	drop 	the 	hard 	disk 	drive 	or 	apply 	any 	physical 	shock 	to 	it.   The  hard
disk  drive  is  sensitive  to  physical  shock.  Improper  handling  can...
