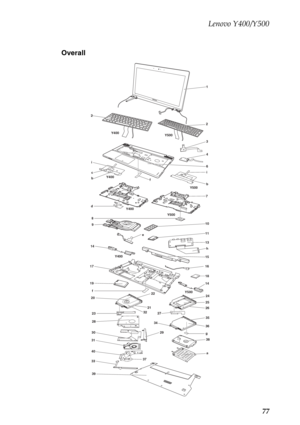

Lenovo Y400/Y500
77 Overall
Y500 Y400 Y400
Y500 Y400
Y500
Y500
Y50
0
Y400
13 11
15
14 1610
38
a 24
25
26 18
35
36
gh 6 4
bi
73 1
2 2
i
b c
f
d
8
e 9
19
f 17
2022
3221 14
29 27
34
39 40
3328
30
31 23
37

Lenovo Y400/Y500 Hardware Maintenance Manual
78
Table 5. Parts list—Overall
No.FRUFRU no.CRU ID
1 LCD unit (see “LCD FRUs” on page 83) N
2 Keyboard (see “Keyboard” on page 86) N
3 QIQY5 Function Board 90001122 N
3 QIQY6 Function Board W/Cable 90001160 N
4 QIQY5 Power Board 90001123 N
4 QIQY6 Power Board W/Cable 90001161 N
6 QIQY5 Upper Case 90201977 N
6 QIQY6 Upper Case 90202005 N
7 QIQY5 MB 2G 35W W/BT/BL 90001094 N
7 QIQY5 W8P MB 2G 35W W/BT/BL 90001095 N
7 QIQY5 W8 MB 2G 35W W/BT/BL 90001096 N
7 QIQY5...

Lenovo Y400/Y500
79
Table 5. Parts list—Overall (continued)
No.FRUFRU no.CRU ID
8 Processor, Ivy bridge core Quad-Core 35W Intel
I7-3612QM 2.1G E1 6M 4cPGA processor102500290 N
8 Processor, Ivy bridge core Quad-Core 35W Intel
I7-3632QM 2.2G E1 6M 4cPGA CPU102500437 N
8 Processor, Ivy bridge core Dual Core 35W Intel
I7-3520M 2.9G L1 4M 2cPGA processor102500295 N
8 Processor, Ivy bridge core Dual Core 35W Intel
I5-3360M 2.8G L1 3M 2cPGA processor102500297 N
8 Processor, Ivy bridge core Dual Core 35W...

Lenovo Y400/Y500 Hardware Maintenance Manual
80
Table 5. Parts list—Overall (continued)
No.FRUFRU no.CRU ID
11 WLAN, WiFi 2x2 ABGN+BT4.0 Liteon WB222
2x2ABGN+BT4.0 HMC20200225 **
11 WLAN, WiFi 1x1 BGN+BT4.0 Cbt BCM943142HM
1x1BGN+BT4.0 HMC20200222 **
11 WLAN, WiFi 1x1 BGN+BT4.0 Liteon WB225
1x1BGN+BT4.0 HMC20200224 **
13 QIQY5 Audio Board 90001124 N
13 QIQY6 USB Board W/Cable 90001163 N
14 Speaker, JBL Speaker Y490 JBL Blade N Speaker 101500184 N
14 Speaker, JBL Speaker Y590 JBL Odyssey II Speaker...

Lenovo Y400/Y500
81
Table 5. Parts list—Overall (continued)
No.FRUFRU no.CRU ID
30 QIQY6 2ND VGA Upper Case 90201993 *
31 QIQY5 2ND VGA Thermal Module 90201966 *
31 QIQY6 2ND VGA Thermal Module 90201966 *
32 QIQY5 2ND Fan 90201968 *
32 QIQY6 2ND Fan 90201968 *
33 QIQY5 Module Frame For ODD 90201959 *
33 QIQY5 2ND Module Frame For (VGA/Fan/HDD) 90201962 *
33 QIQY6 Module Frame For ODD 90201990 *
33 QIQY6 2ND Module Frame For(VGA/Fan/HDD) 90201992 *
34 ODD, 9.5mm Tray in Rambo HLDS GU70N Slim Tray
DVD...

Lenovo Y400/Y500 Hardware Maintenance Manual
82
Table 5. Parts list—Overall (continued)
No.FRUFRU no.CRU ID
39 QIQY5 Thermal Door 90201951 **
39 QIQY6 Thermal Door 90201985 **
40 QIQY5 2ND VGA Board 90001120 *
40 QIQY6 2ND VGA Board 90001120 *

Lenovo Y400/Y500

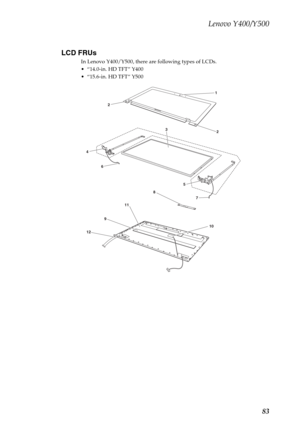

83 LCD FRUs
In Lenovo Y400/Y500, there are following types of LCDs.
 “14.0-in. HD TFT” Y400
 “15.6-in. HD TFT” Y500
2
43
8
12
11
9
10
1
2
5
7
6

Lenovo Y400/Y500 Hardware Maintenance Manual
84
14.0-in. HD TFT (Y400)
Table 6. Parts list—14.0-in. HD TFT
No.FRUFRU no.CRU ID
1 QIQY5 LCD Bezel 90201975 N
2 QIQY5 LCD Bezel Mylar 90201946 N
2 QIQY5 TP Tape 90201947 N
3 Panel, 14.0W Glare AUO B140XTN03.0 9A HD G F
LED1 NB LCD18200625 N
3 Panel, 14.0W Glare SDC LTN140AT20 L02 HD G F
LED1 NB LCD18200697 N
3 Panel, 14.0W Glare LGD LP140WH2-TLE2 HD G F
LED1 NB LCD18200152 N
3 Panel, 14.0W Glare LGD LP140WH2 TLS1 HD G F
LED1 NB LCD18200820 N
3 Panel,...

Lenovo Y400/Y500
85
15.6-in. HD TFT (Y500)
Table 7. Parts list—15.6-in. HD TFT
No.FRUFRU no.CRU ID
1 QIQY6 LCD Bezel  90202003 N
2 QIQY6 TP Tape 90201982 N
3 Panel, 15.6W Wedge AUO B156XTN02.0 HD G W LED1
NB LCD18200157 N
3 Panel, 15.6W Wedge SEC LTN156AT24-L01 HD G W
LED1 NB LCD18200114 N
3 Panel, 15.6W Wedge LGD LP156WH4-TLN1 HD G W
LED1 NB LCD18200158 N
3 Panel, 15.6W Wedge CMI N156BGE-L21 HD G W LED1
NB LCD18004787 N
3 Panel, 15.6W Wedge BOE HB156WX1-100 HD G W
LED1 NB LCD18200677 N
3 Panel,...

Lenovo Y400/Y500 Hardware Maintenance Manual
86Keyboard
Table 8. Parts list—Keyboard
LanguageP/NCRU ID
Y400
(Win 8)ChiconyEnglish 25205228 N
U.K. English 25205229 N
Italian 25205230 N
Spanish 25205231 N
Turkish 25205232 N
Thai 25205233 N
Portuguese 25205234 N
Latin 25205235 N
Canadian English&French 25205236 N
Korean 25205237 N
Traditional Chinese 25205238 N
Russian 25205239 N
French 25205240 N
German 25205241 N
Arabic 25205242 N
Brazilian 25205243 N
Japanese 25205244 N
Dutch 25205245 N
Greek 25205246...
