LG Flatron L194wt Users Guide

A20
Specifications                                            L194WT/L194WTQ/L194WTX
NOTE
Information in this document is subject to change without notice.
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions&Weight
Tilt Range
Power Input
Environmental
Conditions
Stand Base
Signal cable
Power cord 19 inches (48.2 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
19 inches viewable
0.2835 mm pixel pitch
Horizontal Freq. Analog : 30 - 83 kHz (Automatic) Digital : 30 - 83...

A21

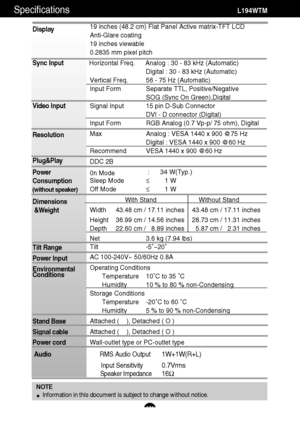

Specifications                                                          \
         L194WTM
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
(without speaker)
Dimensions&Weight
Tilt Range
Power Input
Environmental
Conditions
Stand Base
Signal cable
Power cord
19 inches (48.2 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
19 inches viewable
0.2835  mm pixel pitch
Horizontal Freq. Analog : 30 - 83 kHz (Automatic) Digital : 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75...

A22

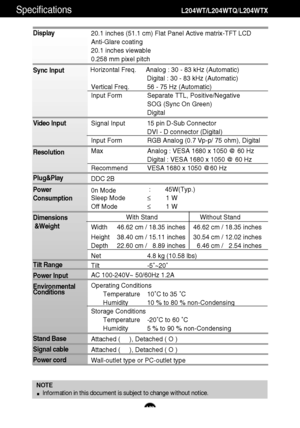

Specifications                                            L204WT/L204WTQ /L204WTX
NOTE
Information in this document is subject to change without notice.
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions&Weight
Tilt Range
Power Input
Environmental
Conditions
Stand Base
Signal cable
Power cord 20.1 inches (51.1 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
20.1 inches viewable
0.258 mm pixel pitch
Horizontal Freq. Analog : 30 - 83 kHz (Automatic) Digital : 30 -...

A23
Specifications                                                                   L204WTM
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
(without speaker)
Dimensions
&Weight
Tilt Range
Power Input
Environmental
Conditions
Stand Base
Signal cable
Power cord
20.1 inches (51.1 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
20.1 inches viewable
0.258 mm pixel pitch
Horizontal Freq. Analog : 30 - 83 kHz (Automatic)
Digital : 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75...

A24

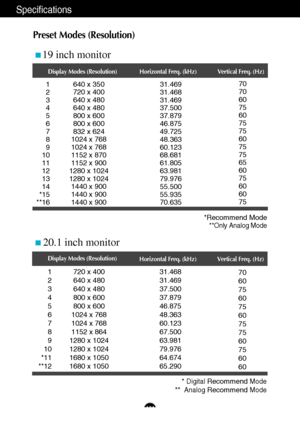

Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
*15
**16640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1152 x 870
1152 x 900
1280 x 1024
1280 x 1024
1440 x 900
1440 x 900
1440 x 90031.469
31.468
31.469
37.500
37.879
46.875
49.725
48.363
60.123
68.681
61.805
63.981
79.976
55.500
55.935
70.63570
70
60
75
60
75
75
60
75
75
65
60
75
60
60
75
*Recommend Mode
**Only...

A25
Signal Connector Pin Assignment
18
9
1724 16
Pin           Signal(DVI-D)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
T. M. D. S. Data2-
T. M. D. S. Data2+
T. M. D. S. Data2/4 Shield
T. M. D. S. Data4-
T. M. D. S. Data4+
DDC Clock
DDC Data
Analog Vertical Sync.
T. M. D. S. Data1-
T. M. D. S. Data1+
T. M. D. S. Data1/3 Shield
T. M. D. S. Data3-
T. M. D. S. Data3+
+5V Power
Ground
(return for +5V,
H. Sync. and V. Sync.)
Pin           Signal(DVI-D)
16
17
18
19
20
21
22
23
24Hot Plug Detect
T. M. D. S. Data0-...

A26

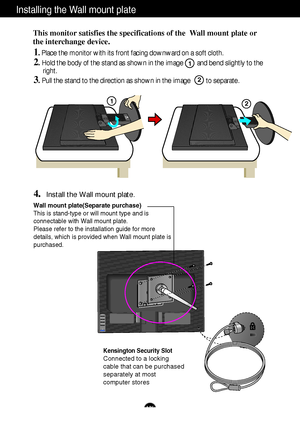

Installing the Wall mount plate
Wall mount plate(Separate purchase)
This is stand-type or will mount type and is
connectable with Wall mount plate.
Please refer to the installation guide for more
details, which is provided when Wall mount plate is
purchased.
Kensington Security Slot
Connected to a locking
cable that can be purchased
separately at most
computer stores
This monitor satisfies the specifications of the  Wall mount plate or
the interchange device.
1. Place the monitor with its front...
