LG Flatron M2250d Owners Manual
Here you can view all the pages of manual LG Flatron M2250d Owners Manual. The LG manuals for Monitor are available online for free. You can easily download all the documents as PDF.

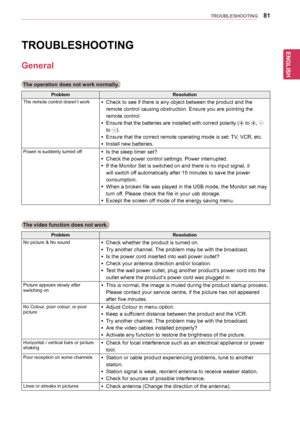

Page 81
ENGLISH 81TROUBLESHOOTING TROUBLESHOOTING General The operation does not work normally. ProblemResolution The remote control doesn’t work yCheck to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control yEnsure that the batteries are installed with correct polarity ( to , to ). yEnsure that the correct remote operating mode is set: TV, VCR, etc. yInstall new batteries. Power is suddenly turned off yIs the...

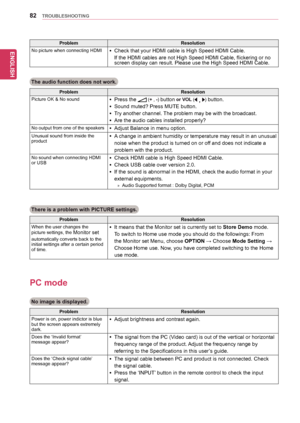

Page 82
ENGLISH 82TROUBLESHOOTING The audio function does not work. ProblemResolution Picture OK & No sound yPress the (+ , -) button or VOL ( , ) button. ySound muted? Press MUTE button. yTry another channel. The problem may be with the broadcast. yAre the audio cables installed properly? No output from one of the speakers yAdjust Balance in menu option. Unusual sound from inside the product yA change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and...

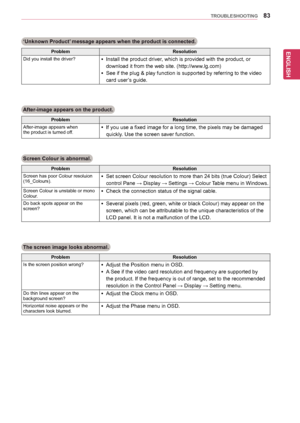

Page 83
ENGLISH 83TROUBLESHOOTING ‘Unknown Product’ message appears when the product is connected. ProblemResolution Did you install the driver? yInstall the product driver, which is provided with the product, or download it from the web site. (http://www.lg.com) ySee if the plug & play function is supported by referring to the video card user’s guide. After-image appears on the product. ProblemResolution After-image appears whenthe product is turned off. yIf you use a fixed image for a long time, the pixels...

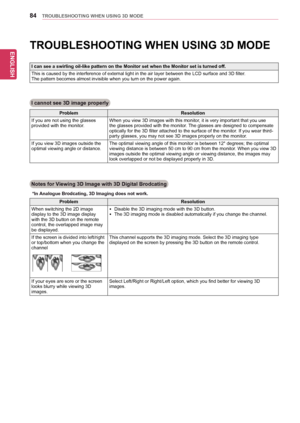

Page 84
ENGLISH 84TROUBLESHOOTING WHEN USING 3D MODE TROUBLESHOOTING WHEN USING 3D MODE I can see a swirling oil-like pattern on the Monitor set when the Monitor set is turned off. This is caused by the interference of external light in the air layer between the LCD surface and 3D filter.The pattern becomes almost invisible when you turn on the power again. I cannot see 3D image properly ProblemResolution If you are not using the glasses provided with the monitor.When you view 3D images with this monitor, it is...

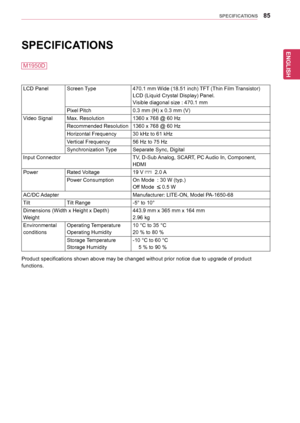

Page 85
ENGLISH 85SPECIFICATIONS SPECIFICATIONS LCD PanelScreen Type470.1 mm Wide (18.51 inch) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel. Visible diagonal size : 470.1 mm Pixel Pitch0.3 mm (H) x 0.3 mm (V) Video SignalMax. Resolution1360 x 768 @ 60 Hz Recommended Resolution1360 x 768 @ 60 Hz Horizontal Frequency30 kHz to 61 kHz Vertical Frequency56 Hz to 75 Hz Synchronization TypeSeparate Sync, Digital Input ConnectorTV, D-Sub Analog, SCART, PC Audio In, Component, HDMI PowerRated...

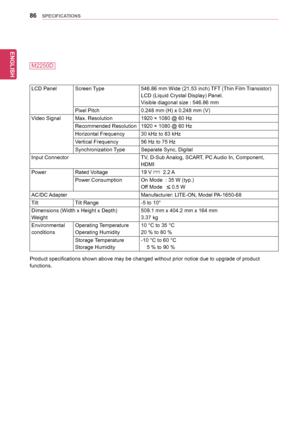

Page 86
ENGLISH 86SPECIFICATIONS LCD PanelScreen Type546.86 mm Wide (21.53 inch) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel. Visible diagonal size : 546.86 mm Pixel Pitch0.248 mm (H) x 0.248 mm (V) Video SignalMax. Resolution1920 × 1080 @ 60 Hz Recommended Resolution1920 × 1080 @ 60 Hz Horizontal Frequency30 kHz to 83 kHz Vertical Frequency56 Hz to 75 Hz Synchronization TypeSeparate Sync, Digital Input ConnectorTV, D-Sub Analog, SCART, PC Audio In, Component, HDMI PowerRated Voltage19 V...
Page 87
ENGLISH 87SPECIFICATIONS M2350D LCD PanelScreen Type584.2 mm Wide (23 inch) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel. Visible diagonal size : 584.2 mm Pixel Pitch0.265 mm (H) x 0.265 mm (V) Video SignalMax. Resolution1920 × 1080 @ 60 Hz Recommended Resolution1920 × 1080 @ 60 Hz Horizontal Frequency30 kHz to 83 kHz Vertical Frequency56 Hz to 75 Hz Synchronization TypeSeparate Sync, Digital Input ConnectorTV, D-Sub Analog, SCART, PC Audio In, Component, HDMI PowerRated Voltage19 V...

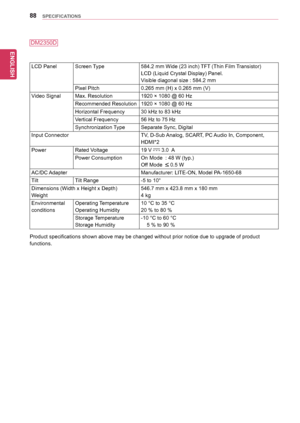

Page 88
ENGLISH SPECIFICATIONS88 DM2350D LCD PanelScreen Type584.2 mm Wide (23 inch) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel. Visible diagonal size : 584.2 mm Pixel Pitch0.265 mm (H) x 0.265 mm (V) Video SignalMax. Resolution1920 × 1080 @ 60 Hz Recommended Resolution1920 × 1080 @ 60 Hz Horizontal Frequency30 kHz to 83 kHz Vertical Frequency56 Hz to 75 Hz Synchronization TypeSeparate Sync, Digital Input ConnectorTV, D-Sub Analog, SCART, PC Audio In, Component, HDMI*2 PowerRated...

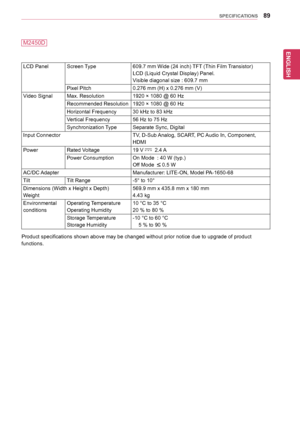

Page 89
ENGLISH 89SPECIFICATIONS M2450D LCD PanelScreen Type609.7 mm Wide (24 inch) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel. Visible diagonal size : 609.7 mm Pixel Pitch0.276 mm (H) x 0.276 mm (V) Video SignalMax. Resolution1920 × 1080 @ 60 Hz Recommended Resolution1920 × 1080 @ 60 Hz Horizontal Frequency30 kHz to 83 kHz Vertical Frequency56 Hz to 75 Hz Synchronization TypeSeparate Sync, Digital Input ConnectorTV, D-Sub Analog, SCART, PC Audio In, Component, HDMI PowerRated Voltage19 V...
Page 90
ENGLISH 90SPECIFICATIONS M2550D LCD PanelScreen Type634.4 mm Wide (25 inch) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel. Visible diagonal size : 634.4 mm Pixel Pitch0.288 mm (H) x 0.288 mm (V) Video SignalMax. Resolution1920 × 1080 @ 60 Hz Recommended Resolution1920 × 1080 @ 60 Hz Horizontal Frequency30 kHz to 83 kHz Vertical Frequency56 Hz to 75 Hz Synchronization TypeSeparate Sync, Digital Input ConnectorTV, D-Sub Analog, SCART, PC Audio In, Component, HDMI PowerRated Voltage19 V...
