LG Flatron M2794dp Pz Owners Manual

30

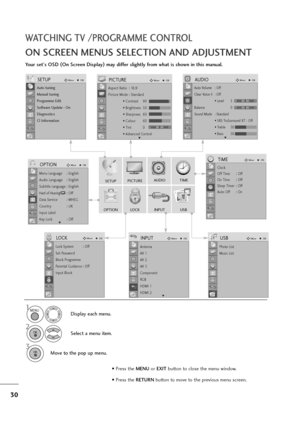

WATCHING TV /PROGRAMME CONTROL
ON SCREEN MENUS SELECTION AND ADJUSTMENT
Your set's OSD (
On Screen Display)
may differ slightly from what is shown in this manual.
SETUP
OPTIONLOCKINPUTUSB AUDIO TIME
1
Display each menu.
2
Select a menu item.
3
Move to the pop up menu.
MENU
OK
OK
• Press the MENUor EXITbutton to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
CI Information...

31
WATCHING TV /PROGRAMME CONTROL
Use this to automatically find and store all available programmes.
When you start auto programming in digital mode, all previously stored service information will be deleted.
AUTO PROGRAMME TUNING
• Use  NUMBER buttons  to  input  a  4-digit
password in Lock System‘On’.
• If  you  wish  to  keep  on  auto  tuning,  select
YESusing  the
F  Gbutton.  Then,  press  the
OKbutton. Otherwise, select NO.  Select SETUP.
2
Select Auto Tuning.
3
Select Ye s.
4
Run Auto tuning....

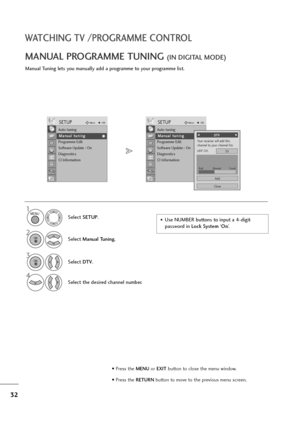

32
WATCHING TV /PROGRAMME CONTROL
Manual Tuning lets you manually add a programme to your programme list.
MANUAL PROGRAMME TUNING (IN DIGITAL MODE)
•Use NUMBER buttons to input a 4-digit
password in Lock System‘On’. Select SETUP.
2 1
Select Manual Tuning.
3
Select DTV.
4
Select the desired channel number.
MENU
OK
OK
• Press the MENUor EXITbutton to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto tuning
Manual tuning
Programme Edit
Software Update : On...

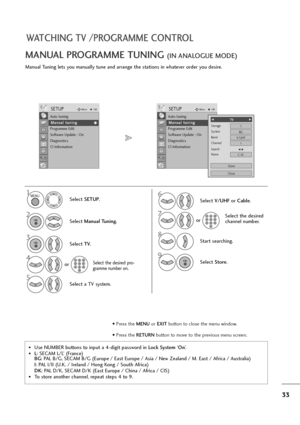

33
WATCHING TV /PROGRAMME CONTROL
Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.
MANUAL PROGRAMME TUNING (IN ANALOGUE MODE)
•Use NUMBER buttons to input a 4-digit password in Lock System‘On’.
•L: SECAM L/L’ (France)
BG: PAL B/G, SECAM B/G (Europe / East Europe / Asia / New Zealand / M. East / Africa / Australia)
I: PAL I/II (U.K. / Ireland / Hong Kong / South Africa)
DK: PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)
•To store another channel, repeat...

34
WATCHING TV /PROGRAMME CONTROL
Normally fine tuning is only necessary if reception is poor.
AFine Tuning
3
Select TV.
4
Select Fine.
5Fine tune for the best picture and
sound.
6
Select Store. You can assign a station name with five characters to each programme number.
AAssigning a station name
Select SETUP.
2
Select Manual Tuning.
3
Select TV.
4
Select Name.
5Select  the  position  and  make
your  choice  of  the  second
character, and so on.
You  can  use  the  alphabet A A
to
Z Z
, the number 0 0
to...

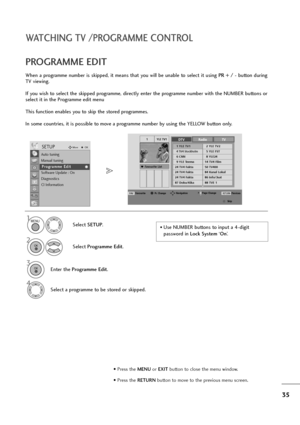

35
WATCHING TV /PROGRAMME CONTROL
When a programme number is skipped, it means that you will be unable to select it using PR + / -button during
TV viewing.
If you wish to select the skipped programme, directly enter the programme number with the NUMBER buttons or
select it in the Programme edit menu
This function enables you to skip the stored programmes.
In some countries, it is possible to move a programme number by using the YELLOW button only.
PROGRAMME EDIT
• Use NUMBER buttons to input a 4-digit...

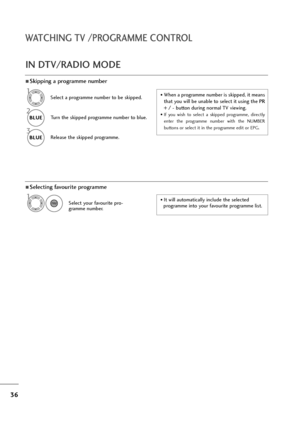

36
WATCHING TV /PROGRAMME CONTROL
ASkipping a programme number
Select a programme number to be skipped.
2
BLUE BLUETurn the skipped programme number to blue.
3
BLUE BLUERelease the skipped programme.
1• When a programme number is skipped, it means
that you will be unable to select it using the PR
+ / -button during normal TV viewing.
• If  you  wish  to  select  a  skipped  programme,  directly
enter  the  programme  number  with  the  NUMBER
buttons or select it in the programme edit or EPG....

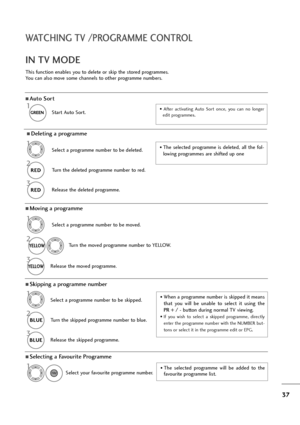

37
WATCHING TV /PROGRAMME CONTROL
This function enables you to delete or skip the stored programmes.
You can also move some channels to other programme numbers.
AAuto Sort
Start Auto Sort.
1
GREEN GREEN•  After  activating  Auto  Sort  once,  you  can  no  longer
edit programmes.
ASelecting a Favourite Programme
Select your favourite programme number.• The  selected  programme  will  be  added  to  the
favourite programme list.
IN TV MODE
ADeleting a programme
Select a programme number to be deleted.
2...

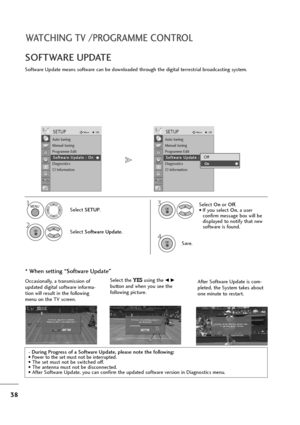

38
WATCHING TV /PROGRAMME CONTROL
Software Update means software can be downloaded through the digital terrestrial broadcasting system.
SOFTWARE UPDATE
* When setting “Software Update”
- During Progress of a Software Update, please note the following:
• Power to the set must not be interrupted.
• The set must not be switched off.
• The antenna must not be disconnected.
• After Software Update, you can confirm the updated software version in Diagnostics menu.
Select SETUP.
2
Select Software Update....

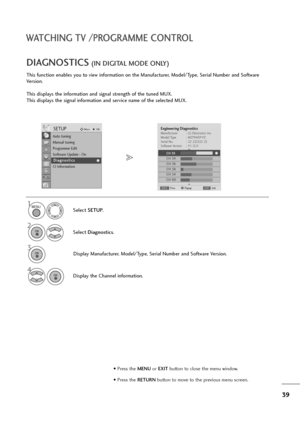

39
WATCHING TV /PROGRAMME CONTROL
This function enables you to view information on the Manufacturer, Model/Type, Serial Number and Software
Version.
This displays the information and signal strength of the tuned MUX.
This displays the signal information and service name of the selected MUX.
DIAGNOSTICS(IN DIGITAL MODE ONLY)
Select SETUP.
2
Select Diagnostics.
4
Display the Channel information.
3
Display Manufacturer, Model/Type, Serial Number and Software Version.
1
Engineering DiagnosticsManufacturer :...
