LG Tribute 5TM Boost Mobile User Guide

Get Started 2
Get Started
The following topics give you all the information you need to set up your phone and wireless service for
the first time.
Parts and Functions
These topics illustrate your phone‘s primary parts and key functions.
Note: Your phones screens and apps layouts are subject to change. This user guide uses sample
images only.
Phone Layout
The following illustration outlines your phone‘s primary external features and buttons.

Part Description
Front-Facing Camera Lens Allows...

Get Started 3
Part Description
Touchscreen
Displays all the information needed to operate your phone, such
as the applications, call status, the Contacts list, the date and time,
and the signal and battery strength.
Back Key  Returns to the previous screen. It also closes pop-up display items
such as menus and dialog boxes.
Home Key
Returns to the Home screen. If youre already viewing one of
extension canvases, it opens the central Home screen. Touch and
hold to access Google Now.
3.5mm...

Get Started 4
Nano SIM Card
The Nano SIM card is an IC (Integrated Circuit) card containing phone number and other customer
information.
Handling the Nano SIM Card
Keep the following in mind when handling a Nano SIM card.
● Customer is responsible for any damage caused by inserting Nano SIM card in another-brand IC
card reader, etc. Boost Mobile is not responsible in such case.
● Always keep the IC chip clean.
● Wipe clean with a dry, soft cloth.
● Avoid applying labels. May damage the Nano SIM...

Get Started 5
Insert Nano SIM Card
Follow these instructions to insert a Nano SIM card. Remember to power off your phone before inserting
a Nano SIM card.
1. Remove the back cover.


 Lift gently in the direction shown.
2. Insert the Nano SIM card.


 Insert gently with gold IC chip facing downward.

Get Started 6
3. Insert the battery.


4. Attach the back cover.


 Make sure all the tabs are secure and there are no gaps around the cover.
microSD Card
Your phone supports the use of an optional microSD card (not included) to expand its storage capacity.
Some cards may not operate properly with your phone.
 microSD card Cautions
Data: Information stored on the microSD card can become lost or changed accidently or as a result of
damage. It is recommended that you keep a separate copy of...

Get Started 7
Handling microSD card: Use/store microSD cards away from the reach of infants. May cause
choking if swallowed.
Insert microSD Card
Follow these steps to insert an optional microSD card (not included). Make sure to power your phone off
before inserting or removing a microSD card.
1. Remove the back cover.


 Lift gently in the direction shown.
2. Insert the microSD card.


 Insert the microSD card all the way gently without bending and with the terminals facing down.
 Insert...

Get Started 8
3. Insert the battery.


4. Attach the back cover.


 Make sure all the tabs are secure and there are no gaps around the cover.
Unmount the microSD Card
Always unmount the microSD card before removing it from your phone.
1. Tap  >  > Settings  > General tab.
2. Tap Storage.
3. Tap Unmount SD card.
 The menu option name changes from Unmount SD card to Mount SD card. The card is
now unmounted.

Get Started 9

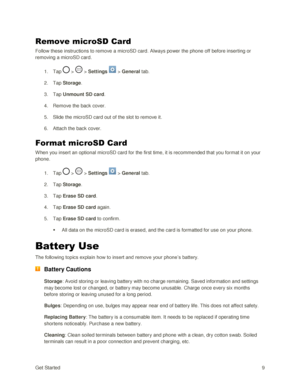

Remove microSD Card
Follow these instructions to remove a microSD card. Always power the phone off before inserting or
removing a microSD card.
1. Tap  >  > Settings  > General tab.
2. Tap Storage.
3. Tap Unmount SD card.
4. Remove the back cover.
5. Slide the microSD card out of the slot to remove it.
6. Attach the back cover.
Format microSD Card
When you insert an optional microSD card for the first time, it is recommended that you format it on your
phone.
1. Tap  >  >...

Get Started 10
Insert the Battery
Follow these instructions to insert your phone‘s battery safely and properly.
1. Remove the back cover.


 Lift gently in the direction shown.
2. Insert the battery.


 Align the contacts of the battery with the contacts in the phone.

Get Started 11
3. Attach the battery cover.


 Make sure all the tabs are secure and there are no gaps around the cover.
