Page 11

10

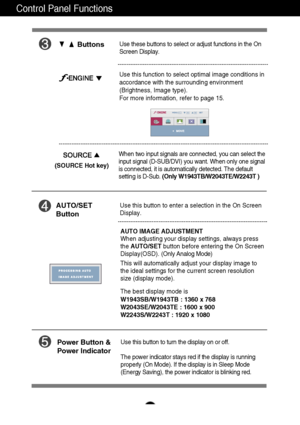

Control Panel Functions
Front Panel Controls
ButtonUse this button to enter 4:3 IN WIDE, PHOTO EFFECT
menus.
For more information, refer to page 14.
MENU ButtonUse this button to enter or exit the On Screen Display.
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU buttonfor several seconds.
The message OSD LOCKEDshould appear.
You can unlock the OSD controls at any time by pushing
the MENU buttonfor...

Page 12

11
Control Panel Functions
Use this button to enter a selection in the On Screen
Display.AUTO/SET
Button
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press
the AUTO/SETbutton before entering the On Screen
Display(OSD). (Only Analog Mode)
This will automatically adjust your display image to
the ideal settings for the current screen resolution
size (display mode).
The best display mode is
W1943SB/W1943TB : 1360 x 768
W2043SE/W2043TE : 1600 x 900
W2243S/W2243T : 1920 x 1080...

Page 13

12

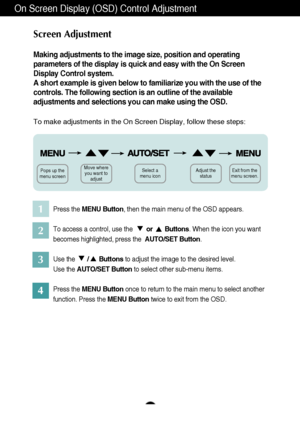

On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating
parameters of the display is quick and easy with the On Screen
Display Control system.
A short example is given below to familiarize you with the use of the
controls. The following section is an outline of the available
adjustments and selections you can make using the OSD.
Pops up the
menu screen
To make adjustments in the On Screen Display, follow these steps:
Move where
you...

Page 14

13
NOTE
The order of icons may differ depending on the model (13~19).

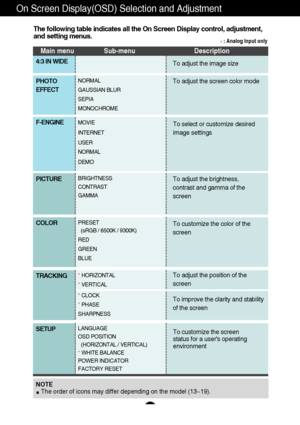

On Screen Display(OSD) Selection and Adjustment
The following table indicates all the On Screen Display control, adjustment,
and setting menus.
Main menu Sub-menu Description
MOVIE
INTERNET
USER
NORMAL
DEMOTo select or customize desired
image settingsF-ENGINE
LANGUAGE
OSD POSITION
(HORIZONTAL / VERTICAL)
* WHITE BALANCE
POWER INDICATOR
FACTORY RESET
To customize the screen
status for a users operating
environmentSETUP
*...

Page 15

14
On Screen Display(OSD) Selection and Adjustment

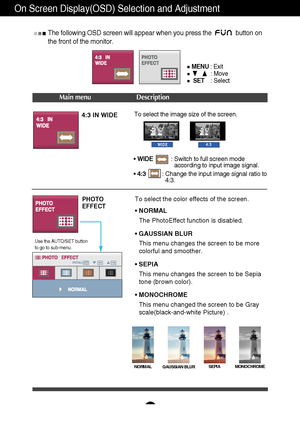

The following OSD screen will appear when you press the              button on
the front of the monitor.
Main menu Description
MENU: Exit
: Move
SET    : Select
4:3 IN WIDETo select the image size of the screen.
•WIDE        : Switch to full screen mode
according to input image signal.
•4:3: Change the input image signal ratio to
4:3.
WIDE4:3
EFFECTTo select the color effects of the screen.
•NORMAL
The PhotoEffect function is disabled....

Page 16

15
On Screen Display(OSD) Selection and Adjustment
Icons
Menu Name
Sub-menu Name
Main menu              Sub menu Description
To adjust the USER sub-menu function,
press the AUTO/SET Button
MOVIE
INTERNET
NORMAL
DEMO
USER
When the F-ENGINE is executed, the screen is split
to show the effects of the selected function. The active
state is to the left and the inactive state is to the right
side of the screen. Select the function you want and
press the [MENU] button to save the setting.
F-ENGINEActive state...

Page 17

16
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.
Sub-
menus
NOTE
OSD (On Screen Display) menu languages on the monitor may differ from the manual.
Menu Name
Icons
Button
Tip
MENU        : Exit
: Adjust (Decrease/Increase)
SET        : Enter
: Select another sub-menu
: Restart to select sub-menu
Press the...

Page 18

15
On Screen Display(OSD) Selection and Adjustment
Icons
Menu Name
Sub-menu Name
Main menu              Sub menu Description
To adjust the USER sub-menu function,
press the AUTO/SET Button
MOVIE
INTERNET
NORMAL
DEMO
USER
When the F-ENGINE is executed, the screen is split
to show the effects of the selected function. The active
state is to the left and the inactive state is to the right
side of the screen. Select the function you want and
press the [MENU] button to save the setting.
F-ENGINEActive state...

Page 19

16
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.
Sub-
menus
NOTE
OSD (On Screen Display) menu languages on the monitor may differ from the manual.
Menu Name
Icons
Button
Tip
MENU        : Exit
: Adjust (Decrease/Increase)
SET        : Enter
: Select another sub-menu
: Restart to select sub-menu
Press the...

Page 20

15
On Screen Display(OSD) Selection and Adjustment
Icons
Menu Name
Sub-menu Name
Main menu              Sub menu Description
To adjust the USER sub-menu function,
press the AUTO/SET Button
MOVIE
INTERNET
NORMAL
DEMO
USER
When the F-ENGINE is executed, the screen is split
to show the effects of the selected function. The active
state is to the left and the inactive state is to the right
side of the screen. Select the function you want and
press the [MENU] button to save the setting.
F-ENGINEActive state...
