Mitsubishi XL30 Projector User Manual

EN – 21
ENGLISH

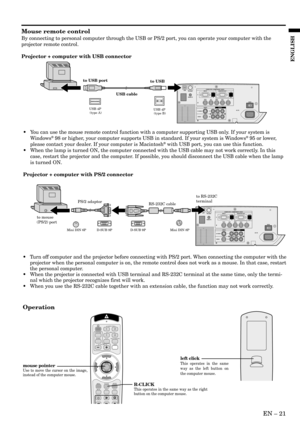

Mouse remote control
By connecting to personal computer through the USB or PS/2 port, you can operate your computer with the
projector remote control.
Projector + computer with USB connector
Operation
•Turn off computer and the projector before connecting with PS/2 port. When connecting the computer with the
projector when the personal computer is on, the remote control does not work as a mouse. In that case, restart
the personal computer.
•When the projector is connected with USB...

EN – 22

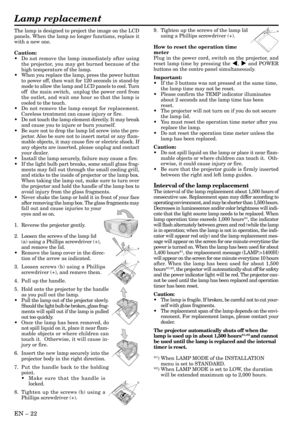

The lamp is designed to project the image on the LCD
panels. When the lamp no longer functions, replace it
with a new one.
Caution:
•Do not remove the lamp immediately after using
the projector, you may get burned because of the
high temperature of the lamp.
•When you replace the lamp, press the power button
to power off, then wait for 120 seconds in stand-by
mode to allow the lamp and LCD panels to cool. Turn
off  the main switch,  unplug the power cord from
the outlet, and wait one hour so that...

EN – 23
ENGLISH

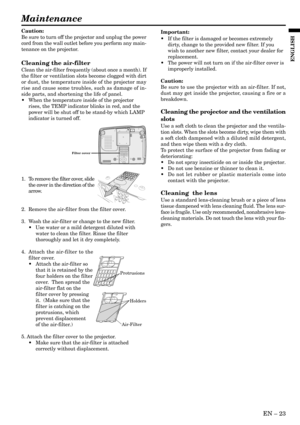

Maintenance
Caution:
Be sure to turn off the projector and unplug the power
cord from the wall outlet before you perform any main-
tenance on the projector.
Cleaning the air-filter
Clean the air-filter frequently (about once a month). If
the filter or ventilation slots become clogged with dirt
or dust, the temperature inside of the projector may
rise and cause some troubles, such as damage of in-
side parts, and shortening the life of panel.
•When the temperature inside of the projector...

EN – 24

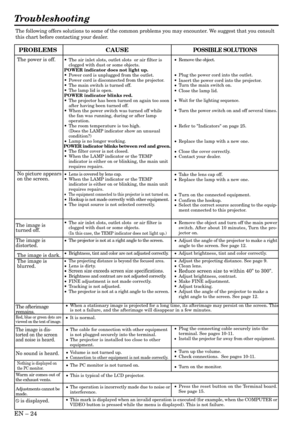

Troubleshooting
The following offers solutions to some of the common problems you may encounter. We suggest that you consult
this chart before contacting your dealer.
CAUSEPOSSIBLE SOLUTIONSPROBLEMS
•The air inlet slots, outlet slots  or air filter is
clogged with dust or some objects.
POWER indicator does not light up.
•Power cord is unplugged from the outlet.
•Power cord is disconnected from the projector.
•The main switch is turned off.
•The lamp lid is open.
POWER indicator blinks red.
•The...

EN – 25
ENGLISH

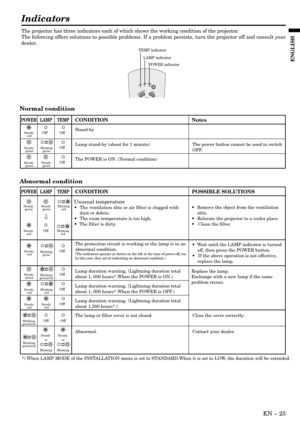

Indicators
The projector has three indicators each of which shows the working condition of the projector.
The following offers solutions to possible problems. If a problem persists, turn the projector off and consult your
dealer.
TEMP indicator
LAMP indicator
POWER indicator
Normal condition
Abnormal condition
Steady
red
Steady
green
Steady
greenBlinking
green
Steady
green
POWER LAMP TEMPCONDITION Notes
The POWER is ON. (Normal condition) Lamp stand-by (about for 1 minute) The power...

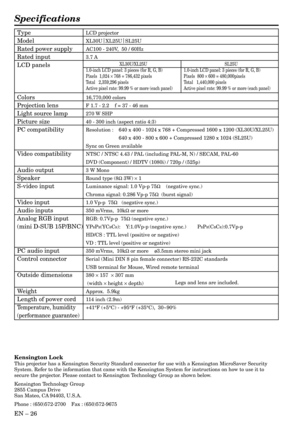

EN – 26
Specifications
LCD projector
XL30U|
XL25U|
SL25U
AC100 - 240V,  50 / 60Hz
3.7 A
16,770,000 colors
F 1.7 - 2.2    f = 37 - 46 mm
270 W SHP
40 - 300 inch (aspect ratio 4:3)
Resolution : 640 x 400 - 1024 x 768 + Compressed 1600 x 1200 (XL30U/XL25U)
640 x 400 - 800 x 600 + Compressed 1280 x 1024 (SL25U)
Sync on Green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM, PAL-60
DVD (Component) / HDTV (1080i) / 720p / (525p)
3 W Mono
Round type (8Ω 3W) × 1
Luminance signal: 1.0 Vp-p 75Ω...

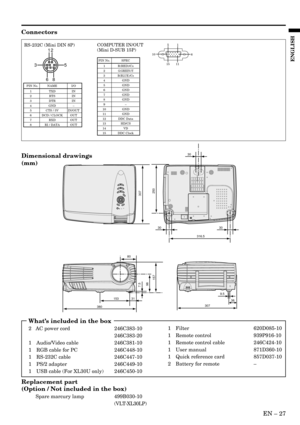

EN – 27
ENGLISH
1 Filter 620D085-10
1 Remote control 939P916-10
1 Remote control cable 246C424-10
1 User manual 871D360-10
1 Quick reference card 857D037-10
2 Battery for remote –
Connectors
Dimensional drawings
(mm)
38015380
307 316.5
31
38 9.5 3030
30
157 98 7.5
307
250
Replacement part
(Option / Not included in the box)
Spare marcury lamp 499B030-10
(VLT-XL30LP)
    What’s included in the box
2   AC power cord 246C383-10
246C383-20
1 Audio/Video cable 246C381-10
1 RGB cable for PC 246C448-10
1 RS-232C...

EN – 28

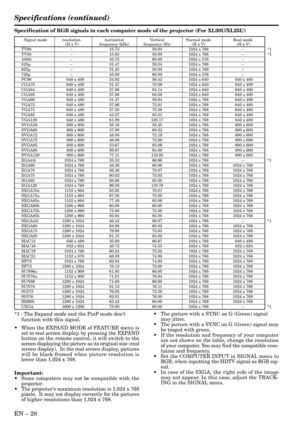

Specifications (continued)
Specification of RGB signals in each computer mode of the projector (For XL30U/XL25U)
*1 : The Expand mode and the PinP mode don’t
function with this signal.
•When the EXPAND MODE of FEATURE menu is
set to real screen display, by pressing the EXPAND
button on the remote control, it will switch to the
screen displaying the picture as its original size (real
screen display).  In the real screen display, pictures
will be black-framed when picture resolution is
lower than...

EN – 29
ENGLISH

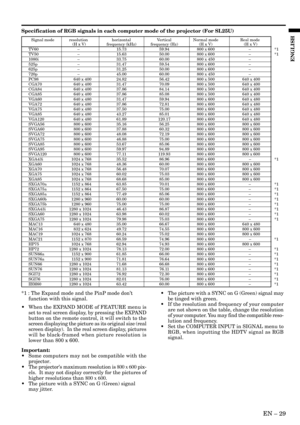

Specification of RGB signals in each computer mode of the projector (For SL25U)
*1 : The Expand mode and the PinP mode don’t
function with this signal.
•When the EXPAND MODE of FEATURE menu is
set to real screen display, by pressing the EXPAND
button on the remote control, it will switch to the
screen displaying the picture as its original size (real
screen display).  In the real screen display, pictures
will be black-framed when picture resolution is
lower than 800 x 600.
Important:...

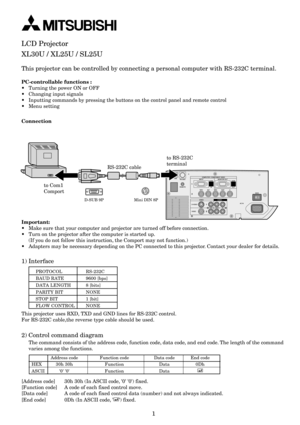

1 1) Interface
This projector can be controlled by connecting a personal computer with RS-232C terminal.
PC-controllable functions :
• Turning the power ON or OFF
• Changing input signals
• Inputting commands by pressing the buttons on the control panel and remote control
• Menu setting
Connection
to Com1
Comport
to RS-232C
terminal
D-SUB 9P Mini DIN 8P
RS-232C cable
Important:
•Make sure that your computer and projector are turned off before connection.
•Turn on the projector after the computer is...
