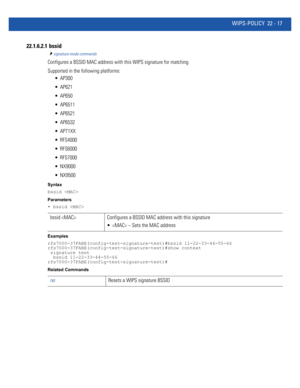

Page 1021

WIPS-POLICY 22 - 17
22.1.6.2.1  bssid
signature-mode commands
Configures a BSSID MAC address with this WIPS signature for matching
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
bssid
Parameters
• bssid
Examples
rfs7000-37FABE(config-test-signature-test)#bssid 11-22-33-44-55-66
rfs7000-37FABE(config-test-signature-test)#show context
 signature test
  bssid 11-22-33-44-55-66...

Page 1022

22 - 18 WiNG CLI Reference Guide

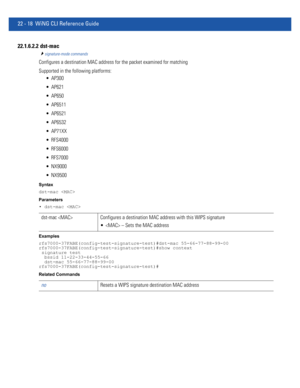

22.1.6.2.2  dst-mac
signature-mode commands
Configures a destination MAC address for the packet examined for matching
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
dst-mac
Parameters
• dst-mac
Examples
rfs7000-37FABE(config-test-signature-test)#dst-mac 55-66-77-88-99-00
rfs7000-37FABE(config-test-signature-test)#show context
 signature test
  bssid 11-22-33-44-55-66
  dst-mac...

Page 1023

WIPS-POLICY 22 - 19

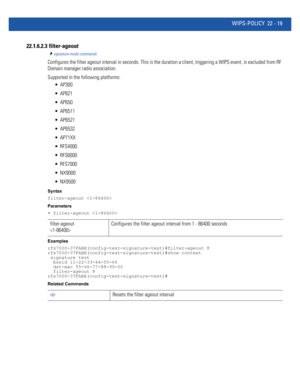

22.1.6.2.3  filter-ageout
signature-mode commands
Configures the filter ageout interval in seconds. This is the duration a client, triggering a WIPS event, is excluded from RF
Domain manager radio association.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
filter-ageout
Parameters
• filter-ageout
Examples
rfs7000-37FABE(config-test-signature-test)#filter-ageout 8...

Page 1024

22 - 20 WiNG CLI Reference Guide

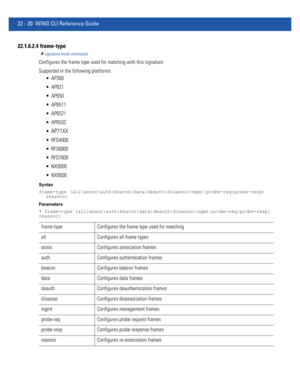

22.1.6.2.4  frame-type
signature-mode commands
Configures the frame type used for matching with this signature
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532

AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
frame-type [all|assoc|auth|beacon|data|deauth|disassoc|mgmt|probe-req|probe-resp|
reassoc]
Parameters
• frame-type [all|assoc|auth|beacon|data|deauth|disassoc|mgmt|probe-req|probe-resp|
reassoc]
frame-type Configures the...

Page 1025

WIPS-POLICY 22 - 21

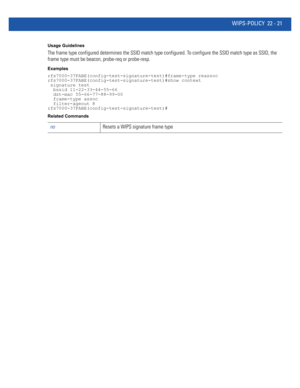

Usage Guidelines
The frame type configured determines the SSID match type configured. To configure the SSID match type as SSID, the
frame type must be beacon, probe-req or probe-resp.
Examples
rfs7000-37FABE(config-test-signature-test)#frame-type reassoc
rfs7000-37FABE(config-test-signature-test)#show context
 signature test
  bssid 11-22-33-44-55-66
  dst-mac 55-66-77-88-99-00
  frame-type assoc
  filter-ageout 8
rfs7000-37FABE(config-test-signature-test)#
Related Commands
noResets...

Page 1026

22 - 22 WiNG CLI Reference Guide

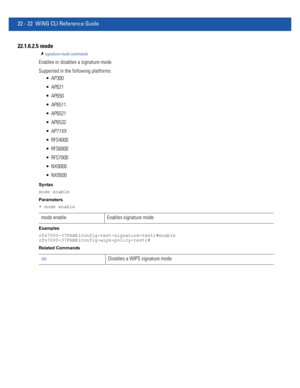

22.1.6.2.5  mode
signature-mode commands
Enables or disables a signature mode
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
mode enable
Parameters
• mode enable
Examples
rfs7000-37FABE(config-test-signature-test)#enable
rfs7000-37FABE(config-wips-policy-test)#
Related Commands
mode enable Enables signature mode
noDisables a WIPS signature mode

Page 1027

WIPS-POLICY 22 - 23

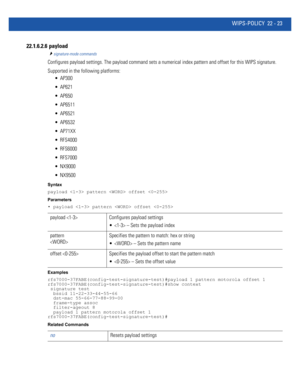

22.1.6.2.6  payload
signature-mode commands
Configures payload settings. The payload command sets a numerical index pattern and offset for this WIPS signature.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
payload  pattern  offset
Parameters
• payload  pattern  offset
Examples
rfs7000-37FABE(config-test-signature-test)#payload 1 pattern motorola offset 1...

Page 1028

22 - 24 WiNG CLI Reference Guide

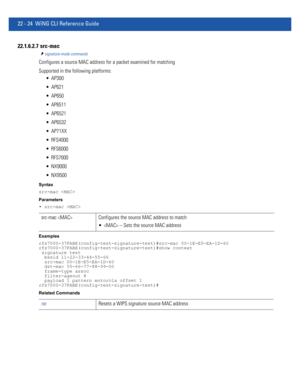

22.1.6.2.7  src-mac
signature-mode commands
Configures a source MAC address for a packet examined for matching
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
src-mac
Parameters
• src-mac
Examples
rfs7000-37FABE(config-test-signature-test)#src-mac 00-1E-E5-EA-1D-60
rfs7000-37FABE(config-test-signature-test)#show context
 signature test
  bssid 11-22-33-44-55-66
  src-mac...

Page 1029

WIPS-POLICY 22 - 25

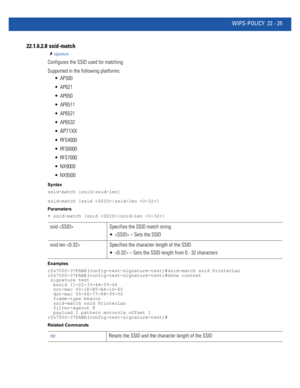

22.1.6.2.8  ssid-match
signature
Configures the SSID used for matching
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532

AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
ssid-match [ssid|ssid-len]
ssid-match [ssid |ssid-len ]
Parameters
• ssid-match [ssid |ssid-len ]
Examples
rfs7000-37FABE(config-test-signature-test)#ssid-match ssid PrinterLan
rfs7000-37FABE(config-test-signature-test)#show context
 signature test
  bssid 11-22-33-44-55-66...

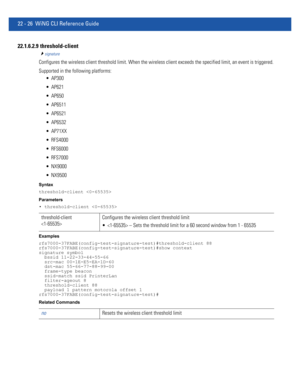

Page 1030

22 - 26 WiNG CLI Reference Guide
22.1.6.2.9  threshold-client
signature
Configures the wireless client threshold limit. When the wireless client exceeds the specified limit, an event is triggered.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
threshold-client
Parameters
• threshold-client
Examples
rfs7000-37FABE(config-test-signature-test)#threshold-client 88
rfs7000-37FABE(config-test-signature-test)#show...
