Motorola Wing 5 Manual

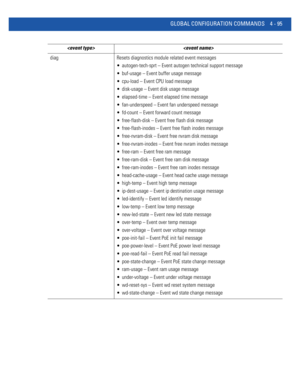

GLOBAL CONFIGURATION COMMANDS 4 - 95
diag Resets diagnostics module related event messages
 autogen-tech-sprt – Event autogen technical support message
 buf-usage – Event buffer usage message
 cpu-load – Event CPU load message
 disk-usage – Event disk usage message
 elapsed-time – Event elapsed time message
 fan-underspeed – Event fan underspeed message
 fd-count – Event forward count message
 free-flash-disk – Event free flash disk message
 free-flash-inodes – Event free flash inodes message...

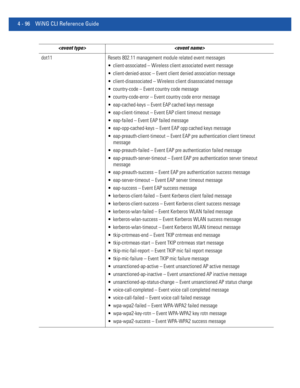

4 - 96 WiNG CLI Reference Guide
dot11 Resets 802.11 management module related event messages
 client-associated – Wireless client associated event message
 client-denied-assoc – Event client denied association message
 client-disassociated – Wireless client disassociated message
 country-code – Event country code message
 country-code-error – Event country code error message
 eap-cached-keys – Event EAP cached keys message
 eap-client-timeout – Event EAP client timeout message
 eap-failed – Event EAP...

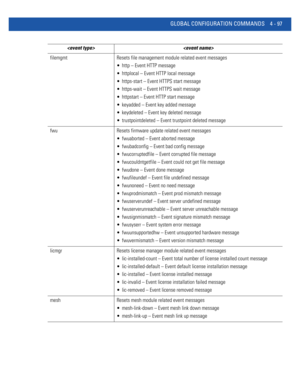

GLOBAL CONFIGURATION COMMANDS 4 - 97
filemgmt Resets file management module related event messages
 http – Event HTTP message
 httplocal – Event HTTP local message
 https-start – Event HTTPS start message
 https-wait – Event HTTPS wait message
 httpstart – Event HTTP start message
 keyadded – Event key added message
 keydeleted – Event key deleted message
 trustpointdeleted – Event trustpoint deleted message
fwu Resets firmware update related event messages
 fwuaborted – Event aborted message...

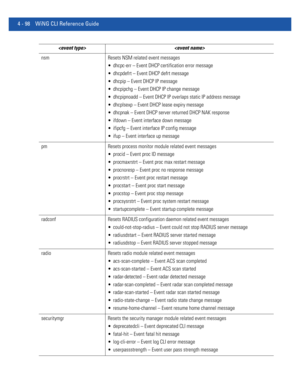

4 - 98 WiNG CLI Reference Guide
nsm Resets NSM related event messages
 dhcpc-err – Event DHCP certification error message
 dhcpdefrt – Event DHCP defrt message
 dhcpip – Event DHCP IP message
 dhcpipchg – Event DHCP IP change message
 dhcpipnoadd – Event DHCP IP overlaps static IP address message
 dhcplsexp – Event DHCP lease expiry message
 dhcpnak – Event DHCP server returned DHCP NAK response
 ifdown – Event interface down message
 ifipcfg – Event interface IP config message
 ifup – Event interface up...

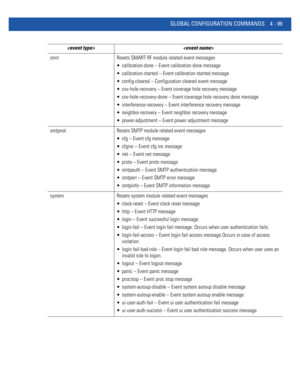

GLOBAL CONFIGURATION COMMANDS 4 - 99
smrt Resets SMART RF module related event messages
 calibration-done – Event calibration done message
 calibration-started – Event calibration started message
 config-cleared – Configuration cleared event message
 cov-hole-recovery – Event coverage hole recovery message
 cov-hole-recovery-done – Event coverage hole recovery done message
 interference-recovery – Event interference recovery message
 neighbor-recovery – Event neighbor recovery message
 power-adjustment –...

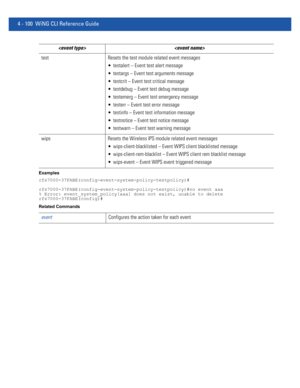

4 - 100 WiNG CLI Reference Guide
Examples
rfs7000-37FABE(config-event-system-policy-testpolicy)#
rfs7000-37FABE(config-event-system-policy-testpolicy)#no event aaa
% Error: event_system_policy[aaa] does not exist, unable to delete
rfs7000-37FABE(config)#
Related Commands
test Resets the test module related event messages
 testalert – Event test alert message
 testargs – Event test arguments message
 testcrit – Event test critical message
 testdebug – Event test debug message
 testemerg – Event test...

GLOBAL CONFIGURATION COMMANDS 4 - 101

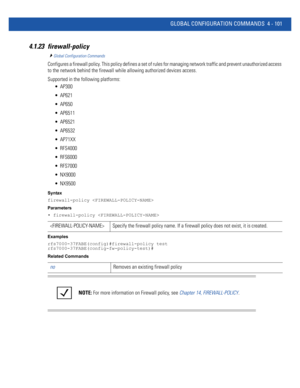

4.1.23 firewall-policy
Global Configuration Commands
Configures a firewall policy. This policy defines a set of rules for managing network traffic and prevent unauthorized access
to the network behind the firewall while allowing authorized devices access.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
firewall-policy
Parameters
• firewall-policy
Examples...

4 - 102 WiNG CLI Reference Guide

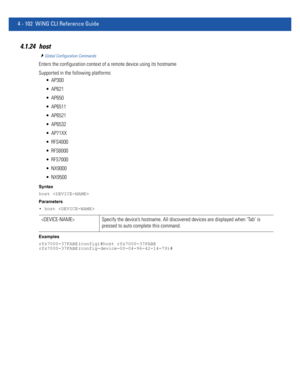

4.1.24 host
Global Configuration Commands
Enters the configuration context of a remote device using its hostname
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
host
Parameters
• host
Examples
rfs7000-37FABE(config)#host rfs7000-37FABE
rfs7000-37FABE(config-device-00-04-96-42-14-79)#
 Specify the device’s hostname. All discovered devices are displayed when ‘Tab’ is
pressed to...

GLOBAL CONFIGURATION COMMANDS 4 - 103

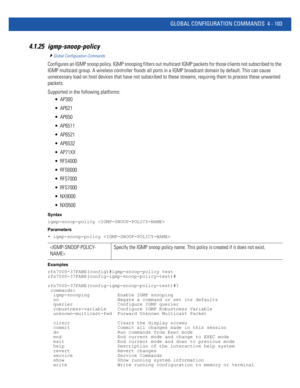

4.1.25 igmp-snoop-policy
Global Configuration Commands
Configures an IGMP snoop policy. IGMP snooping filters out multicast IGMP packets for those clients not subscribed to the
IGMP multicast group. A wireless controller floods all ports in a IGMP broadcast domain by default. This can cause
unnecessary load on host devices that have not subscribed to these streams, requiring them to process these unwanted
packets.
Supported in the following platforms:
 AP300...

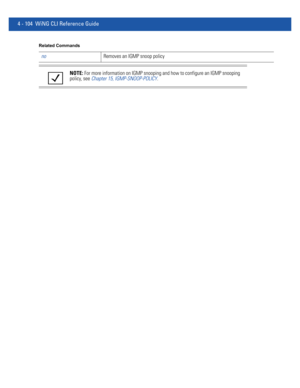

4 - 104 WiNG CLI Reference Guide
Related Commands
noRemoves an IGMP snoop policy
NOTE: For more information on IGMP snooping and how to configure an IGMP snooping
policy, see Chapter 15, IGMP-SNOOP-POLICY.
