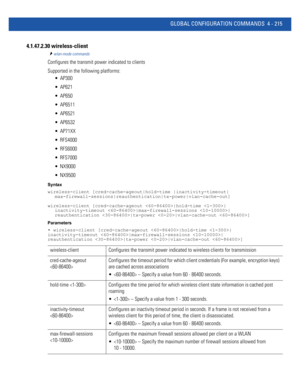

GLOBAL CONFIGURATION COMMANDS 4 - 215
4.1.47.2.30 wireless-client
wlan-mode commands
Configures the transmit power indicated to clients
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
wireless-client [cred-cache-ageout|hold-time |inactivity-timeout|
max-firewall-sessions|reauthentication|tx-power|vlan-cache-out]
wireless-client [cred-cache-ageout |hold-time |
inactivity-timeout |max-firewall-sessions |...

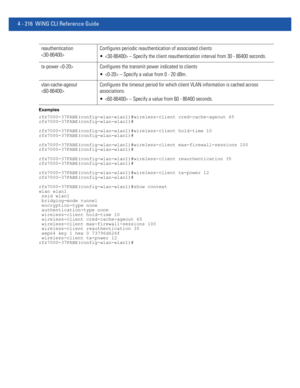

4 - 216 WiNG CLI Reference Guide
Examples
rfs7000-37FABE(config-wlan-wlan1)#wireless-client cred-cache-ageout 65
rfs7000-37FABE(config-wlan-wlan1)#
rfs7000-37FABE(config-wlan-wlan1)#wireless-client hold-time 10
rfs7000-37FABE(config-wlan-wlan1)#
rfs7000-37FABE(config-wlan-wlan1)#wireless-client max-firewall-sessions 100
rfs7000-37FABE(config-wlan-wlan1)#
rfs7000-37FABE(config-wlan-wlan1)#wireless-client reauthentication 35
rfs7000-37FABE(config-wlan-wlan1)#...

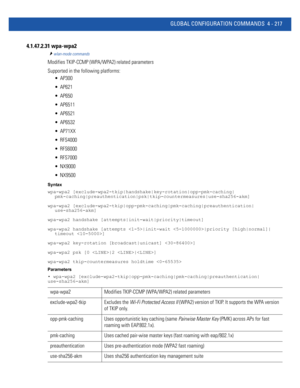

GLOBAL CONFIGURATION COMMANDS 4 - 217
4.1.47.2.31 wpa-wpa2
wlan-mode commands
Modifies TKIP-CCMP (WPA/WPA2) related parameters
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
wpa-wpa2 [exclude-wpa2-tkip|handshake|key-rotation|opp-pmk-caching|
pmk-caching|preauthentication|psk|tkip-countermeasures|use-sha256-akm]
wpa-wpa2 [exclude-wpa2-tkip|opp-pmk-caching|pmk-caching|preauthentication|
use-sha256-akm]
wpa-wpa2...

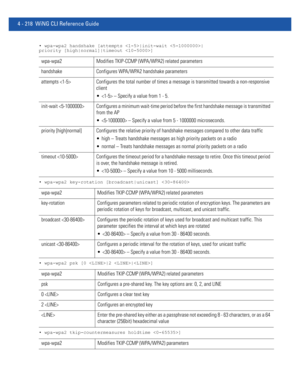

4 - 218 WiNG CLI Reference Guide
• wpa-wpa2 handshake [attempts |init-wait |
priority [high|normal]|timeout ]
• wpa-wpa2 key-rotation [broadcast|unicast]
• wpa-wpa2 psk [0 |2 |]
• wpa-wpa2 tkip-countermeasures holdtime ]
wpa-wpa2 Modifies TKIP-CCMP (WPA/WPA2) related parameters
handshake Configures WPA/WPA2 handshake parameters
attempts  Configures the total number of times a message is transmitted towards a non-responsive
client
  – Specify a value from 1 - 5.
init-wait  Configures a minimum wait-time...

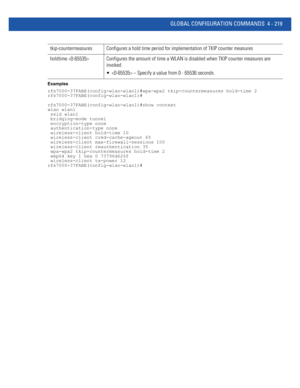

GLOBAL CONFIGURATION COMMANDS 4 - 219
Examples
rfs7000-37FABE(config-wlan-wlan1)#wpa-wpa2 tkip-countermeasures hold-time 2
rfs7000-37FABE(config-wlan-wlan1)#
rfs7000-37FABE(config-wlan-wlan1)#show context
wlan wlan1
 ssid wlan1
 bridging-mode tunnel
 encryption-type none
 authentication-type none
 wireless-client hold-time 10
 wireless-client cred-cache-ageout 65
 wireless-client max-firewall-sessions 100
 wireless-client reauthentication 35
 wpa-wpa2 tkip-countermeasures hold-time 2
 wep64 key 1 hex 0...

4 - 220 WiNG CLI Reference Guide

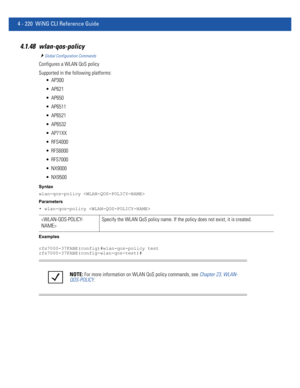

4.1.48 wlan-qos-policy
Global Configuration Commands
Configures a WLAN QoS policy
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
wlan-qos-policy
Parameters
• wlan-qos-policy
Examples
rfs7000-37FABE(config)#wlan-qos-policy test
rfs7000-37FABE(config-wlan-qos-test)#
Specify the WLAN QoS policy name. If the policy does not exist, it is created.
NOTE: For more information on WLAN...

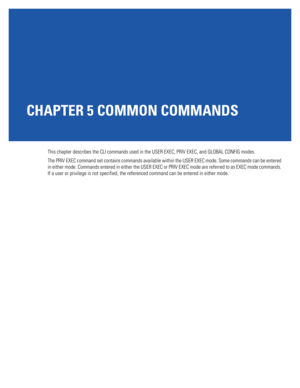

CHAPTER 5 COMMON COMMANDS
This chapter describes the CLI commands used in the USER EXEC, PRIV EXEC, and GLOBAL CONFIG modes.
The PRIV EXEC command set contains commands available within the USER EXEC mode. Some commands can be entered
in either mode. Commands entered in either the USER EXEC or PRIV EXEC mode are referred to as EXEC mode commands.
If a user or privilege is not specified, the referenced command can be entered in either mode.

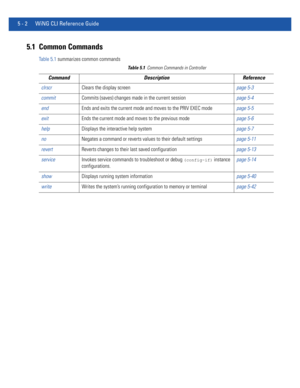

5 - 2 WiNG CLI Reference Guide
5.1 Common Commands
Table 5.1 summarizes common commands
Table 5.1Common Commands in Controller
Command Description Reference
clrscrClears the display screenpage 5-3
commitCommits (saves) changes made in the current sessionpage 5-4
endEnds and exits the current mode and moves to the PRIV EXEC modepage 5-5
exitEnds the current mode and moves to the previous modepage 5-6
helpDisplays the interactive help systempage 5-7
noNegates a command or reverts values to their default...

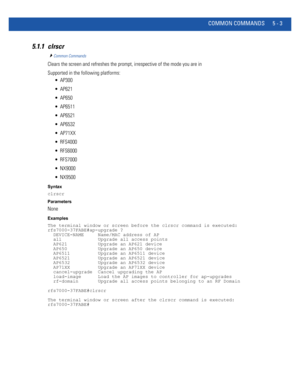

COMMON COMMANDS 5 - 3
5.1.1 clrscr
Common Commands
Clears the screen and refreshes the prompt, irrespective of the mode you are in
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
clrscr
Parameters
None
Examples
The terminal window or screen before the clrscr command is executed:
rfs7000-37FABE#ap-upgrade ?
  DEVICE-NAME     Name/MAC address of AP
  all             Upgrade all access points
  AP621...

5 - 4 WiNG CLI Reference Guide
5.1.2 commit
Common Commands
Commits all changes made in the active session. Use the commit command to save and invoke settings entered during the
current transaction.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
commit {write}{memory}
Parameters
• commit {write}{memory}
Examples
rfs7000-37FABE#commit write memory
[OK]
rfs7000-37FABE#
write Optional. If a commit succeeds, the...
