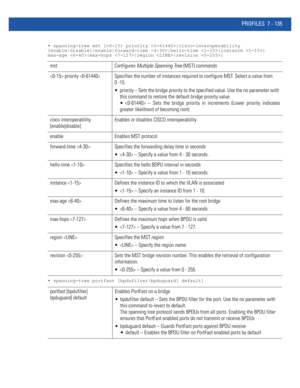

PROFILES 7 - 135
• spanning-tree mst [ priority |cisco-interoperability
[enable|disable]|enable|forward-time |hello-time |instance |
max-age |max-hops |region |revision ]
• spanning-tree portfast [bpdufilter|bpduguard] default]
mst Configures Multiple Spanning Tree (MST) commands
 priority  Specifies the number of instances required to configure MST. Select a value from
0 -15.
 priority – Sets the bridge priority to the specified value. Use the no parameter with
this command to restore the default...

7 - 136 WiNG CLI Reference Guide
Usage Guidelines
If a bridge does not hear bridge protocol data units (BPDUs) from the root bridge within the specified interval, defined in
the max-age (seconds) parameter, assume the network has changed and recomputed the spanning-tree topology.
Generally, spanning tree configuration settings in the config mode define the configuration for bridge and bridge instances.
MSTP works based on instances. An instance is a group of VLANs with a common spanning tree. A single...

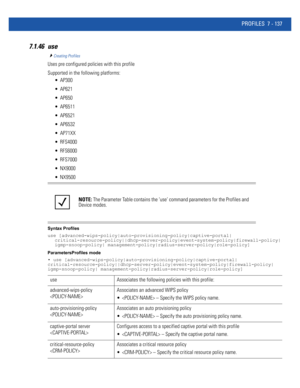

PROFILES 7 - 137
7.1.46 use
Creating Profiles
Uses pre configured policies with this profile
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax Profiles
use [advanced-wips-policy|auto-provisioning-policy|captive-portal|
critical-resource-policy||dhcp-server-policy|event-system-policy|firewall-policy|
igmp-snoop-policy| management-policy|radius-server-policy|role-policy]
ParametersProfiles mode
• use...

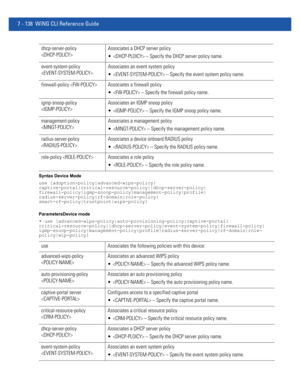

7 - 138 WiNG CLI Reference Guide
Syntax Device Mode
use [adoption-policy|advanced-wips-policy|
captive-portal|critical-resource-policy||dhcp-server-policy|
firewall-policy|igmp-snoop-policy|management-policy|profile|
radius-server-policy|rf-domain|role-policy|
smart-rf-policy|trustpoint|wips-policy]
ParametersDevice mode
• use [advanced-wips-policy|auto-provisioning-policy|captive-portal|
critical-resource-policy||dhcp-server-policy|event-system-policy|firewall-policy|...

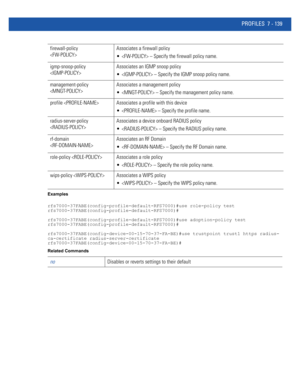

PROFILES 7 - 139
Examples
rfs7000-37FABE(config-profile-default-RFS7000)#use role-policy test
rfs7000-37FABE(config-profile-default-RFS7000)#
rfs7000-37FABE(config-profile-default-RFS7000)#use adoption-policy test
rfs7000-37FABE(config-profile-default-RFS7000)#
rfs7000-37FABE(config-device-00-15-70-37-FA-BE)#use trustpoint trust1 https radius-
ca-certificate radius-server-certificate
rfs7000-37FABE(config-device-00-15-70-37-FA-BE)#
Related Commands
firewall-policy
Associates a firewall policy
  –...

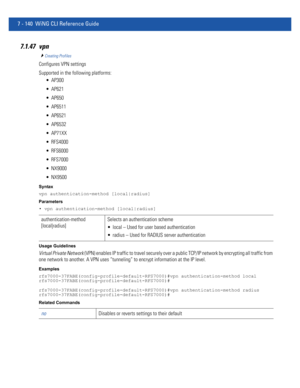

7 - 140 WiNG CLI Reference Guide
7.1.47 vpn
Creating Profiles
Configures VPN settings
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
vpn authentication-method [local|radius]
Parameters
• vpn authentication-method [local|radius]
Usage Guidelines
Virtual Private Network (VPN) enables IP traffic to travel securely over a public TCP/IP network by encrypting all traffic from
one network to another. A VPN uses...

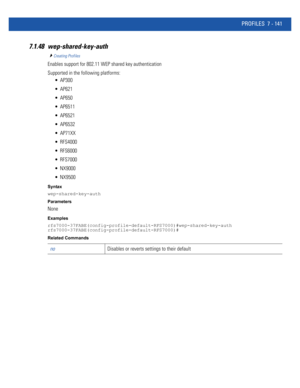

PROFILES 7 - 141
7.1.48 wep-shared-key-auth
Creating Profiles
Enables support for 802.11 WEP shared key authentication
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
wep-shared-key-auth
Parameters
None
Examples
rfs7000-37FABE(config-profile-default-RFS7000)#wep-shared-key-auth
rfs7000-37FABE(config-profile-default-RFS7000)#
Related Commands
noDisables or reverts settings to their default

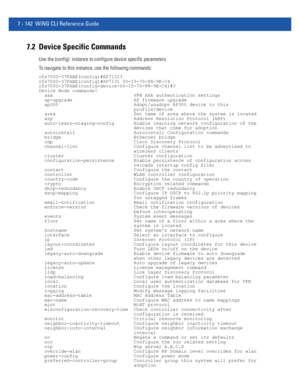

7 - 142 WiNG CLI Reference Guide
7.2 Device Specific Commands
Use the (config) instance to configure device specific parameters
To navigate to this instance, use the following commands:
rfs7000-37FABE(config)#AP7131?
rfs7000-37FABE(config)#AP7131 00-15-70-88-9E-C4
rfs7000-37FABE(config-device-00-15-70-88-9E-C4)#?
Device Mode commands:
  aaa                             VPN AAA authentication settings
  ap-upgrade                      AP firmware upgrade
  ap300                           Adopt/unadopt...

PROFILES 7 - 143
  radius                          Configure device-level radius authentication
                                  parameters
  remove-override                 Remove configuration item override from the
                                  device (so profile value takes effect)
  rf-domain-manager               RF Domain Manager
  rsa-key                         Assign a RSA key to a service
  sensor-server                   Motorola AirDefense sensor server...

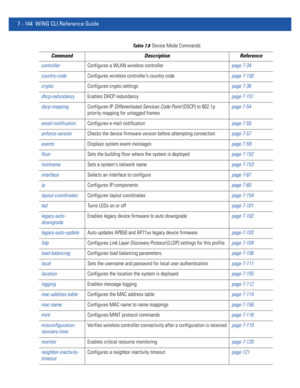

7 - 144 WiNG CLI Reference Guide
controllerConfigures a WLAN wireless controllerpage 7-34
country-codeConfigures wireless controller’s country codepage 7-150
cryptoConfigures crypto settingspage 7-36
dhcp-redundancyEnables DHCP redundancypage 7-151
dscp-mappingConfigures IP Differentiated Services Code Point (DSCP) to 802.1p
priority mapping for untagged framespage 7-54
email-notificationConfigures e-mail notificationpage 7-55
enforce-versionChecks the device firmware version before attempting...
