Page 841

DHCP-SERVER-POLICY 13 - 57

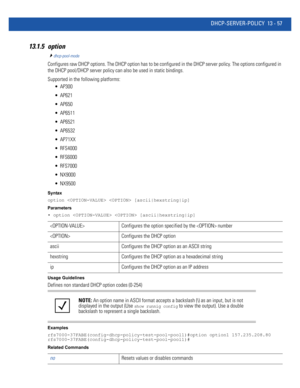

13.1.5 option
dhcp-pool-mode
Configures raw DHCP options. The DHCP option has to be configured in the DHCP server policy. The options configured in
the DHCP pool/DHCP server policy can also be used in static bindings.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
option   [ascii|hexstring|ip]
Parameters
• option   [ascii|hexstring|ip]
Usage Guidelines
Defines non standard DHCP...

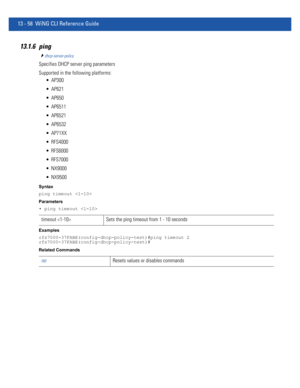

Page 842

13 - 58 WiNG CLI Reference Guide
13.1.6 ping
dhcp-server-policy
Specifies DHCP server ping parameters
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
ping timeout
Parameters
• ping timeout
Examples
rfs7000-37FABE(config-dhcp-policy-test)#ping timeout 2
rfs7000-37FABE(config-dhcp-policy-test)#
Related Commands
timeout  Sets the ping timeout from 1 - 10 seconds
noResets values or disables commands

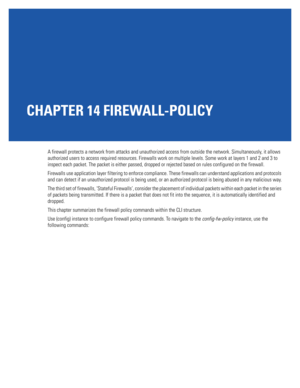

Page 843

CHAPTER 14 FIREWALL-POLICY
A firewall protects a network from attacks and unauthorized access from outside the network. Simultaneously, it allows
authorized users to access required resources. Firewalls work on multiple levels. Some work at layers 1 and 2 and 3 to
inspect each packet. The packet is either passed, dropped or rejected based on rules configured on the firewall.
Firewalls use application layer filtering to enforce compliance. These firewalls can understand applications and protocols
and...

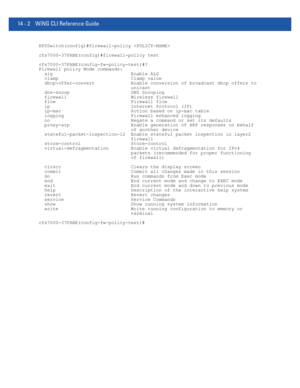

Page 844

14 - 2 WiNG CLI Reference Guide
RFSSwitch(config)#firewall-policy
rfs7000-37FABE(config)#firewall-policy test
rfs7000-37FABE(config-fw-policy-test)#?
Firewall policy Mode commands:
  alg                            Enable ALG
  clamp                          Clamp value
  dhcp-offer-convert             Enable conversion of broadcast dhcp offers to
                                 unicast
  dns-snoop                      DNS Snooping
  firewall                       Wireless firewall
  flow...

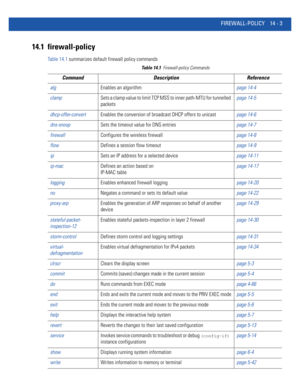

Page 845

FIREWALL-POLICY 14 - 3
14.1 firewall-policy
Table 14.1 summarizes default firewall policy commands
Table 14.1Firewall-policy Commands
Command Description Reference
algEnables an algorithmpage 14-4
clampSets a clamp value to limit TCP MSS to inner path-MTU for tunnelled
packets page 14-5
dhcp-offer-convertEnables the conversion of broadcast DHCP offers to unicastpage 14-6
dns-snoopSets the timeout value for DNS entriespage 14-7
firewallConfigures the wireless firewallpage 14-8
flowDefines a session flow...

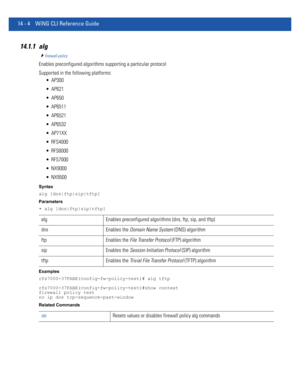

Page 846

14 - 4 WiNG CLI Reference Guide
14.1.1 alg
firewall-policy
Enables preconfigured algorithms supporting a particular protocol
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
alg [dns|ftp|sip|tftp]
Parameters
• alg [dns|ftp|sip|tftp]
Examples
rfs7000-37FABE(config-fw-policy-test)# alg tftp
rfs7000-37FABE(config-fw-policy-test)#show context
firewall policy test
no ip dos tcp-sequence-past-window
Related Commands...

Page 847

FIREWALL-POLICY 14 - 5

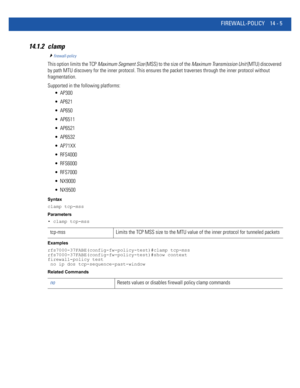

14.1.2 clamp
firewall-policy
This option limits the TCP Maximum Segment Size (MSS) to the size of the Maximum Transmission Unit (MTU) discovered
by path MTU discovery for the inner protocol. This ensures the packet traverses through the inner protocol without
fragmentation.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
clamp tcp-mss
Parameters
• clamp tcp-mss
Examples...

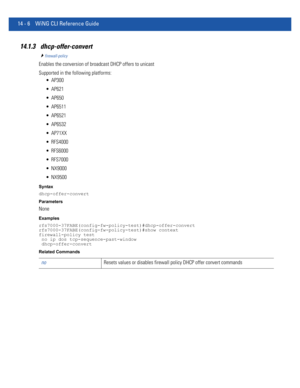

Page 848

14 - 6 WiNG CLI Reference Guide
14.1.3  dhcp-offer-convert
firewall-policy
Enables the conversion of broadcast DHCP offers to unicast
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
dhcp-offer-convert
Parameters
None
Examples
rfs7000-37FABE(config-fw-policy-test)#dhcp-offer-convert
rfs7000-37FABE(config-fw-policy-test)#show context
firewall-policy test
 no ip dos tcp-sequence-past-window
 dhcp-offer-convert...

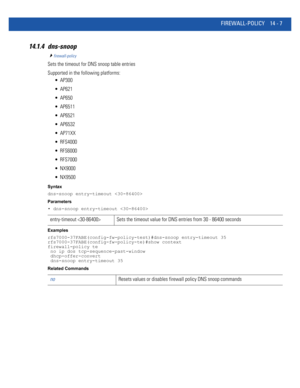

Page 849

FIREWALL-POLICY 14 - 7
14.1.4 dns-snoop
firewall-policy
Sets the timeout for DNS snoop table entries
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
dns-snoop entry-timeout
Parameters
• dns-snoop entry-timeout
Examples
rfs7000-37FABE(config-fw-policy-test)#dns-snoop entry-timeout 35
rfs7000-37FABE(config-fw-policy-te)#show context
firewall-policy te
 no ip dos tcp-sequence-past-window
 dhcp-offer-convert...

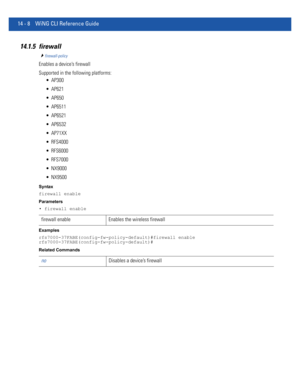

Page 850

14 - 8 WiNG CLI Reference Guide
14.1.5 firewall
firewall-policy
Enables a device’s firewall
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
firewall enable
Parameters
• firewall enable
Examples
rfs7000-37FABE(config-fw-policy-default)#firewall enable
rfs7000-37FABE(config-fw-policy-default)#
Related Commands
firewall enable Enables the wireless firewall
noDisables a device’s firewall
