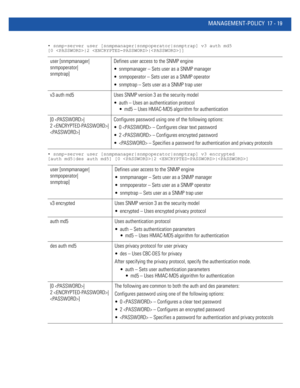

Page 911

MANAGEMENT-POLICY 17 - 19
• snmp-server user [snmpmanager|snmpoperator|snmptrap] v3 auth md5
[0 |2 |]]
• snmp-server user [snmpmanager|snmpoperator|snmptrap] v3 encrypted
[auth md5|des auth md5] [0 |2 |]
user [snmpmanager|
snmpoperator|
snmptrap]Defines user access to the SNMP engine
 snmpmanager – Sets user as a SNMP manager
 snmpoperator – Sets user as a SNMP operator
 snmptrap – Sets user as a SNMP trap user
v3 auth md5 Uses SNMP version 3 as the security model
 auth – Uses an authentication...

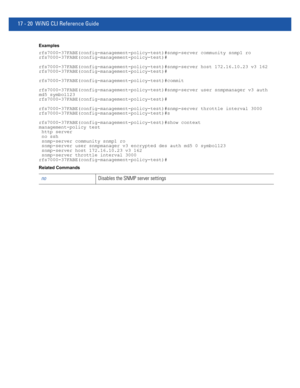

Page 912

17 - 20 WiNG CLI Reference Guide
Examples
rfs7000-37FABE(config-management-policy-test)#snmp-server community snmp1 ro
rfs7000-37FABE(config-management-policy-test)#
rfs7000-37FABE(config-management-policy-test)#snmp-server host 172.16.10.23 v3 162
rfs7000-37FABE(config-management-policy-test)#
rfs7000-37FABE(config-management-policy-test)#commit
rfs7000-37FABE(config-management-policy-test)#snmp-server user snmpmanager v3 auth
md5 symbol123
rfs7000-37FABE(config-management-policy-test)#...

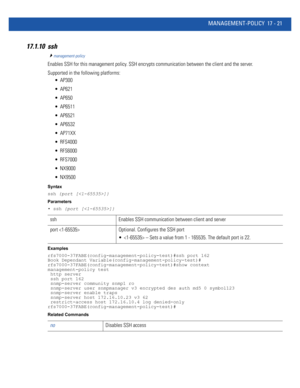

Page 913

MANAGEMENT-POLICY 17 - 21
17.1.10 ssh
management-policy
Enables SSH for this management policy. SSH encrypts communication between the client and the server.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
ssh {port []}
Parameters
• ssh {port []}
Examples
rfs7000-37FABE(config-management-policy-test)#ssh port 162
Book Dependant Variable(config-management-policy-test)#...

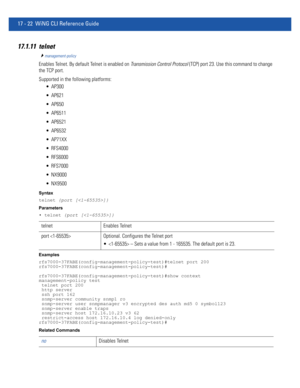

Page 914

17 - 22 WiNG CLI Reference Guide
17.1.11 telnet
management-policy
Enables Telnet. By default Telnet is enabled on Transmission Control Protocol (TCP) port 23. Use this command to change
the TCP port.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
telnet {port []}
Parameters
• telnet {port []}
Examples
rfs7000-37FABE(config-management-policy-test)#telnet port 200
rfs7000-37FABE(config-management-policy-test)#...

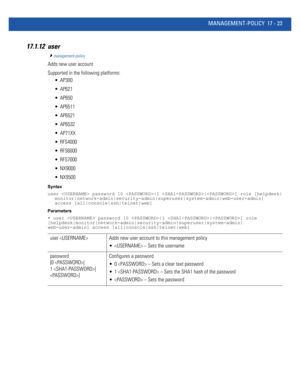

Page 915

MANAGEMENT-POLICY 17 - 23
17.1.12 user
management-policy
Adds new user account
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6521
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
user  password [0 |1 |] role [helpdesk|
monitor|network-admin|security-admin|superuser|system-admin|web-user-admin]
access [all|console|ssh|telnet|web]
Parameters
• user  password [0 |1 |] role
[helpdesk|monitor|network-admin|security-admin|superuser|system-admin|
web-user-admin]...

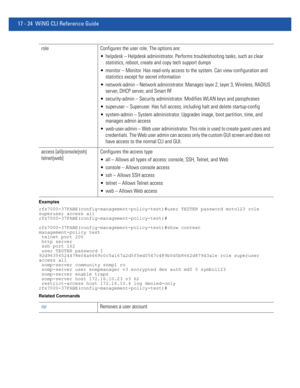

Page 916

17 - 24 WiNG CLI Reference Guide
Examples
rfs7000-37FABE(config-management-policy-test)#user TESTER password moto123 role
superuser access all
rfs7000-37FABE(config-management-policy-test)#
rfs7000-37FABE(config-management-policy-test)#show context
management-policy test
 telnet port 200
 http server
 ssh port 162
 user TESTER password 1
92d96356524478e04a6669c0c5a167a2d5f5ed0547c489b0d5b8662d879d3a1e role superuser
access all
 snmp-server community snmp1 ro
 snmp-server user snmpmanager v3 encrypted...

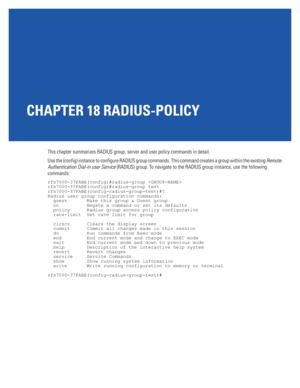

Page 917

CHAPTER 18 RADIUS-POLICY
This chapter summarizes RADIUS group, server and user policy commands in detail.
Use the (config) instance to configure RADIUS group commands. This command creates a group within the existing Remote
Authentication Dial-in user Service (RADIUS) group. To navigate to the RADIUS group instance, use the following
commands:
rfs7000-37FABE(config)#radius-group
rfs7000-37FABE(config)#radius-group test
rfs7000-37FABE(config-radius-group-test)#?
Radius user group configuration...

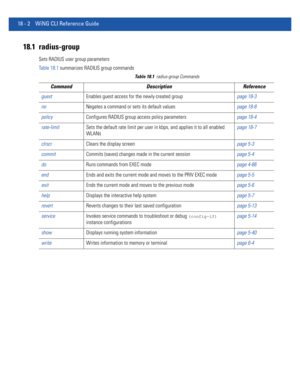

Page 918

18 - 2 WiNG CLI Reference Guide
18.1 radius-group
Sets RADIUS user group parameters
Table 18.1 summarizes RADIUS group commands
Table 18.1radius-group Commands
Command Description Reference
guestEnables guest access for the newly created grouppage 18-3
noNegates a command or sets its default valuespage 18-8
policyConfigures RADIUS group access policy parameterspage 18-4
rate-limitSets the default rate limit per user in kbps, and applies it to all enabled
WLANspage 18-7
clrscrClears the display...

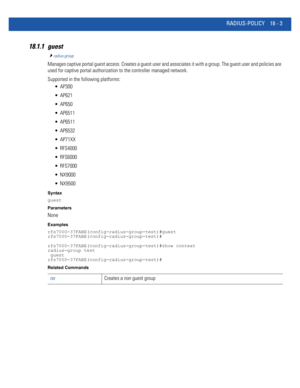

Page 919

RADIUS-POLICY 18 - 3
18.1.1 guest
radius-group
Manages captive portal guest access. Creates a guest user and associates it with a group. The guest user and policies are
used for captive portal authorization to the controller managed network.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6511
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
guest
Parameters
None
Examples
rfs7000-37FABE(config-radius-group-test)#guest
rfs7000-37FABE(config-radius-group-test)#...

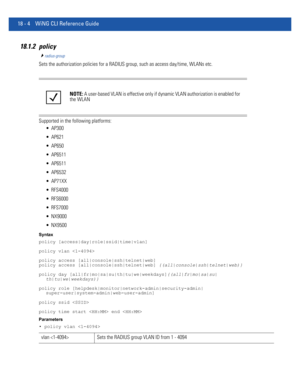

Page 920

18 - 4 WiNG CLI Reference Guide
18.1.2 policy
radius-group
Sets the authorization policies for a RADIUS group, such as access day/time, WLANs etc.
Supported in the following platforms:
 AP300
 AP621
 AP650
 AP6511
 AP6511
 AP6532
 AP71XX
 RFS4000
 RFS6000
 RFS7000
 NX9000
 NX9500
Syntax
policy [access|day|role|ssid|time|vlan]
policy vlan
policy access [all|console|ssh|telnet|web]
policy access [all|console|ssh|telnet|web] {(all|console|ssh|telnet|web)}
policy day...
