NEC Neax 2400 Callcenterworx Enterprise Imx Mat Quick Reference Guide

NDA-30141 Revision 1Page 5
CallCenterWorX-Enterprise IMX MAT Quick Reference Guide Getting Started
Installing CallCenterWorX-Enterprise IMX MAT
The following procedures guide you through the installation of CallCenterWorX-
Enterprise IMX MAT application. The Setup program consists of a series of dialog
boxes that supply default answers to questions regarding the installation of files to
your hard disk.
Important:  Be sure to close all Windows programs before beginning the application in-
stallation.
1...

NDA-30141 Revision 1Page 6
CallCenterWorX-Enterprise IMX MAT Quick Reference Guide Getting Started
2. Click Next. The Software License Agreement dialog box displays (Figure 2-2).
Figure 2-2   Software License Agreement
3. Read the software license agreement in the list box and click Ye s to accept the
terms of the agreement and to continue with the installation.
4. The Installation Information screen displays (Figure 2-3 ). Click Next to con-
tinue.

NDA-30141 Revision 1Page 7
CallCenterWorX-Enterprise IMX MAT Quick Reference Guide Getting Started
Figure 2-3   Installation Information
5. The User Information screen is displayed next (Figure 2-4 ). Verify the infor-
mation appearing in each field or enter in information where the fields are left
blank. Click Next.

NDA-30141 Revision 1Page 8
CallCenterWorX-Enterprise IMX MAT Quick Reference Guide Getting Started
Figure 2-4   User Information
6. The Select Components screen displays (Figure 2-5 ). Those components with
a checkmark to the left will be installed. If there are certain components you do
not want installed, simply click in the checkbox to deselect that component.
Click Next to continue.

NDA-30141 Revision 1Page 9
CallCenterWorX-Enterprise IMX MAT Quick Reference Guide Getting Started
Figure 2-5   Select Components

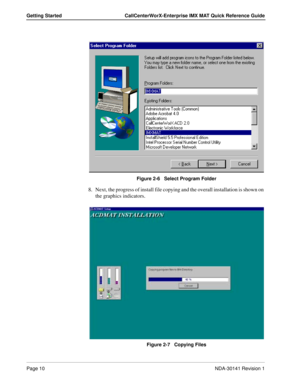

7. The Select Program Folder screen displays (Figure 2-6 ). You may select a fold-
er name from the existing folder list, or type a new name in the box. To accept
the Program Folder shown in the dialog box, click Next.

Page 10NDA-30141 Revision 1
Getting Started CallCenterWorX-Enterprise IMX MAT Quick Reference Guide
Figure 2-6   Select Program Folder
8. Next, the progress of install file copying and the overall installation is shown on
the graphics indicators.
Figure 2-7   Copying Files

NDA-30141 Revision 1Page 11
CallCenterWorX-Enterprise IMX MAT Quick Reference Guide Getting Started
9. When all files have been copied and installed, you will be returned to your win-
dows environment.
This completes the setup and installation for the CallCenterWorX-Enterprise IMX
MAT application.

Getting Started CallCenterWorX-Enterprise IMX MAT Quick Reference Guide
Page 12NDA-30141 Revision 1
This Page Left Blank.

NDA-30141 Revision 1Page 13
CallCenterWorX-Enterprise IMX MAT Quick Reference Guide Using Online Help
Chapter 3 Using Online Help
Online Help
FeaturesThe CallCenterWorX-Enterprise IMX MAT online Help system features include:
Context-sensitive Help for every dialog, button, and field within the program.
Step-by-step procedures assigning, displaying, updating, printing, and
removing CallCenterWo r X-Enterprise IMX MAT data.
Comprehensive glossary in each program.
ACD functionality with respect to...

Page 14NDA-30141 Revision 1
Using Online Help CallCenterWorX-Enterprise IMX MAT Quick Reference Guide
Navigating the
Help SystemCallCenterWorX-Enterprise IMX MAT Online Help is deployed using the
Microsoft HTML Help format. The help system will be viewed in a tri-pane
window.
The left pane contains the Contents, Index, Search and Glossary tabs to
help users move around the system.
The right pane contains the selected help topic.
The top pane has navigational buttons to help the users move through...
