Page 141
ND-45504 (E) CHAPTER 4 Page 119 Revision 2.0 PN-2DPCB (DPC) (2) Lamp Indications Lamp Indications LAMP NAME COLOR FUNCTION BL0 Red No. 0 CircuitON: Ready for digital data transmission or the circuit is busy. OFF: Fixed path is not connected. Flash (60IPM): Make-busy state or the system data for this card is not as- signed. Flash (120IPM): Fixed path is connected. LB01 RedON: Loop Back 1 is set. OFF: Normally operating. LB02 RedON: Loop Back 2 is set. OFF: Normally operating. RSC0 GreenON: RTS/C signal...
Page 142

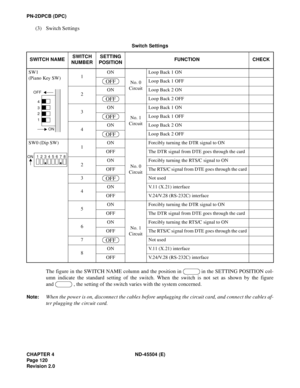

CHAPTER 4 ND-45504 (E) Page 120 Revision 2.0 PN-2DPCB (DPC) (3) Switch Settings The figure in the SWITCH NAME column and the position in in the SETTING POSITION col- umn indicate the standard setting of the switch. When the switch is not set as shown by the figure and , the setting of the switch varies with the system concerned. Note:When the power is on, disconnect the cables before unplugging the circuit card, and connect the cables af- ter plugging the circuit card. Switch Settings SWITCH NAMESWITCH...
Page 143

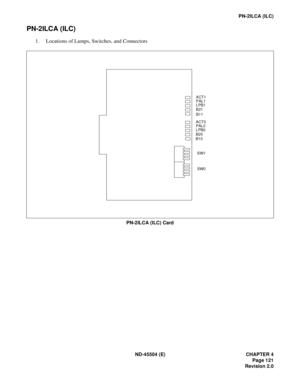

ND-45504 (E) CHAPTER 4 Page 121 Revision 2.0 PN-2ILCA (ILC) PN-2ILCA (ILC) 1. Locations of Lamps, Switches, and Connectors PN-2ILCA (ILC) Card SW1 ACT0 B20PAL0 LPB0 ACT1 B21PAL1 LPB1 B11 B10 SW0
Page 144

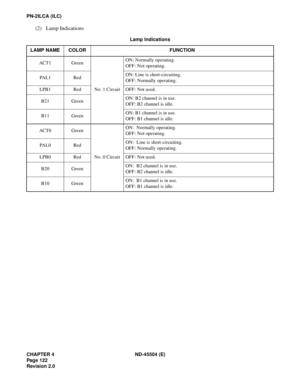

CHAPTER 4 ND-45504 (E) Page 122 Revision 2.0 PN-2ILCA (ILC) (2) Lamp Indications Lamp Indications LAMP NAME COLOR FUNCTION AC T 1 Gre en No. 1 CircuitON: Normally operating. OFF: Not operating. PA L 1 R e dON: Line is short-circuiting. OFF: Normally operating. LPB1 Red OFF: Not used. B21 GreenON: B2 channel is in use. OFF: B2 channel is idle. B11 GreenON: B1 channel is in use. OFF: B1 channel is idle. AC T 0 Gre en No. 0 CircuitON: Normally operating. OFF: Not operating. PA L 0 R e dON: Line is...
Page 145
ND-45504 (E) CHAPTER 4 Page 123 Revision 2.0 PN-2ILCA (ILC) (3) Switch Settings The figure in the SWITCH NAME column and the position in in the SETTING POSITION col- umn indicate the standard setting of the switch. When the switch is not set as shown by the figure and , the setting of the switch varies with the system concerned.Switch Settings SWITCH NAMESWITCH NUMBERSETTING POSITIONFUNCTION CHECK SW1 (Piano Key SW)1Always set to OFF 2Always set to OFF 3Always set to OFF 4Always set to OFF SW0 (Piano...
Page 146

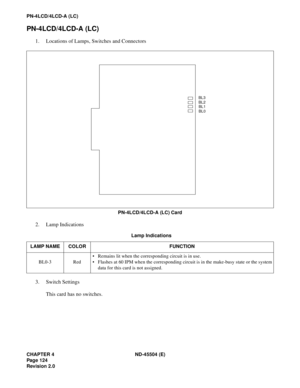

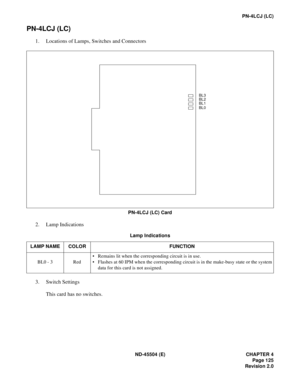

CHAPTER 4 ND-45504 (E) Page 124 Revision 2.0 PN-4LCD/4LCD-A (LC) PN-4LCD/4LCD-A (LC) 1. Locations of Lamps, Switches and Connectors PN-4LCD/4LCD-A (LC) Card 2. Lamp Indications 3. Switch Settings This card has no switches. Lamp Indications LAMP NAME COLOR FUNCTION BL0-3 Red• Remains lit when the corresponding circuit is in use. • Flashes at 60 IPM when the corresponding circuit is in the make-busy state or the system data for this card is not assigned. BL3 BL2 BL1 BL0
Page 147
ND-45504 (E) CHAPTER 4 Page 125 Revision 2.0 PN-4LCJ (LC) PN-4LCJ (LC) 1. Locations of Lamps, Switches and Connectors PN-4LCJ (LC) Card 2. Lamp Indications 3. Switch Settings This card has no switches. Lamp Indications LAMP NAME COLOR FUNCTION BL0 - 3 Red• Remains lit when the corresponding circuit is in use. • Flashes at 60 IPM when the corresponding circuit is in the make-busy state or the system data for this card is not assigned. BL3 BL0BL2 BL1
Page 148

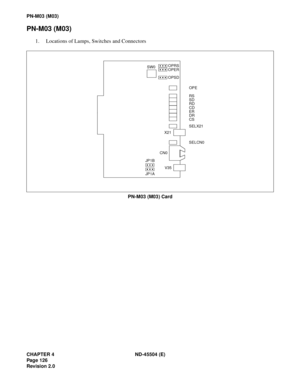

CHAPTER 4 ND-45504 (E) Page 126 Revision 2.0 PN-M03 (M03) PN-M03 (M03) 1. Locations of Lamps, Switches and Connectors PN-M03 (M03) Card OPRS OPE RS SELCN0 V35 X21 OPER OPSDSW0 SD RD CD ER DR CS SELX21 CN0 JP1B JP1A
Page 149

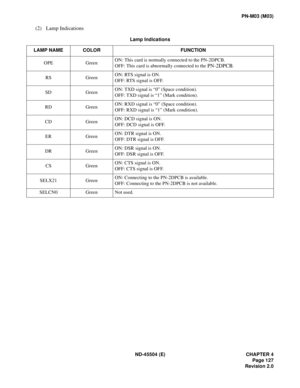

ND-45504 (E) CHAPTER 4 Page 127 Revision 2.0 PN-M03 (M03) (2) Lamp Indications Lamp Indications LAMP NAME COLOR FUNCTION OPE GreenON: This card is normally connected to the PN-2DPCB. OFF: This card is abnormally connected to the PN-2DPCB. RS GreenON: RTS signal is ON. OFF: RTS signal is OFF. SD GreenON: TXD signal is “0” (Space condition). OFF: TXD signal is “1” (Mark condition). RD GreenON: RXD signal is “0” (Space condition). OFF: RXD signal is “1” (Mark condition). CD GreenON: DCD signal is ON. OFF:...
Page 150

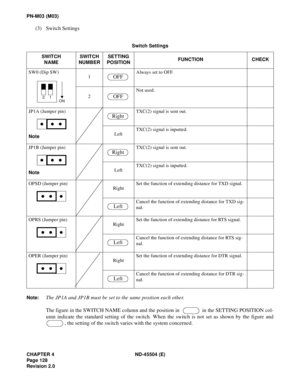

CHAPTER 4 ND-45504 (E) Page 128 Revision 2.0 PN-M03 (M03) (3) Switch Settings Note:The JP1A and JP1B must be set to the same position each other. The figure in the SWITCH NAME column and the position in in the SETTING POSITION col- umn indicate the standard setting of the switch. When the switch is not set as shown by the figure and , the setting of the switch varies with the system concerned. Switch Settings SWITCH NAMESWITCH NUMBERSETTING POSITIONFUNCTION CHECK SW0 (Dip SW) 1Always set to OFF. 2Not...
