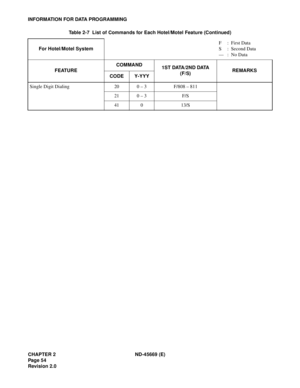

NEC Neax2000 Ivs Command Manual

CHAPTER 2 ND-45669 (E)
Pag e 5 4
Revision 2.0
INFORMATION FOR DATA PROGRAMMING
Single Digit Dialing 20 0 – 3 F/808 – 811
21 0 – 3 F/S
41 0 13/S Table 2-7  List of Commands for Each Hotel/Motel Feature (Continued)
For Hotel/Motel SystemF:  First Data
S :  Second Data
— :  No Data
FEATURECOMMAND
1S T DATA/2N D DATA
(F/S)REMARKS
CODE Y-YYY

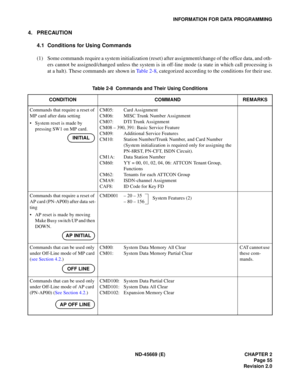

ND -4 5669 ( E)  CHAPTER 2
IN FORM ATION  FO R  DATA  PR O GRAMM ING
INI TIAL
AP  INI TIAL
Syste m  F eat ure s (2)
A P  OFF  LIN E

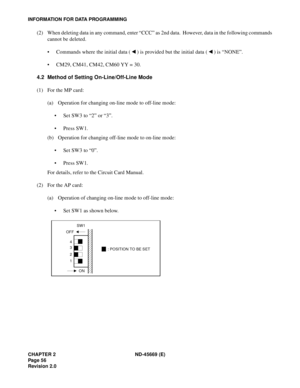

CHAPTER 2 ND-45669 (E)
Pag e 5 6
Revision 2.0
INFORMATION FOR DATA PROGRAMMING
(2) When deleting data in any command, enter “CCC” as 2nd data.  However, data in the following commands
cannot be deleted.
• Commands where the initial data ( ) is provided but the initial data ( ) is “NONE”.
• CM29, CM41, CM42, CM60 YY = 30.
4.2 Method of Setting On-Line/Off-Line Mode
(1) For the MP card:
(a) Operation for changing on-line mode to off-line mode:
• Set SW3 to “2” or “3”.
• Press SW1.
(b) Operation for...

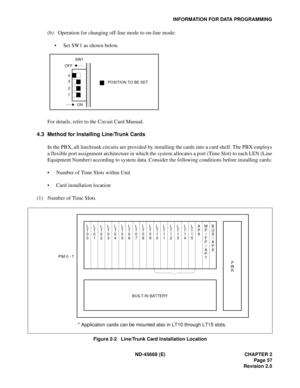

ND-45669 (E) CHAPTER 2
Page 57
Revision 2.0
INFORMATION FOR DATA PROGRAMMING
(b) Operation for changing off-line mode to on-line mode:
• Set SW1 as shown below.
For details, refer to the Circuit Card Manual.
4.3 Method for Installing Line/Trunk Cards
In the PBX, all line/trunk circuits are provided by installing the cards into a card shelf. The PBX employs
a flexible port assignment architecture in which the system allocates a port (Time Slot) to each LEN (Line
Equipment Number) according to system data....

CHAPTER 2 ND-45669 (E)
Page 58 Addendum-001
Revision 2.1 AUGUST, 1998
INFORMATION FOR DATA PROGRAMMING
• Number of ports on each card
Each card slot has four (4) LENs. For the relation between Slot Numbers and LENs, refer to the “Port
Assignment Table” of the Office Data Programming Manual.
Note:When performing the 10-party conference, two PN-CFTA cards are needed. In this case, the total num-
ber of time slots is 20.
• The following two conditions should be considered for the PBX:
Table 2-9  Port...

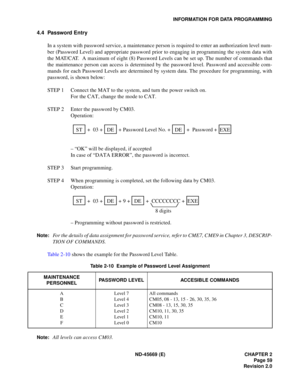

ND -4 5669 ( E)  CHAPTER 2
IN FORM ATION  FO R  DATA  PR O GRAMM ING
 +   03  +   +  Pa ssword  L ev el  N o. +  +   P asswo rd  + STDEDEEXE
 +   03  +   +  9 +   +   CC CC CCC C + STDEDEEXE
8 dig its

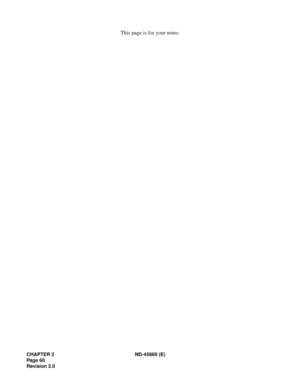

CHAPTER 2 ND-45669 (E)
Pag e 6 0
Revision 2.0
This page is for your notes.

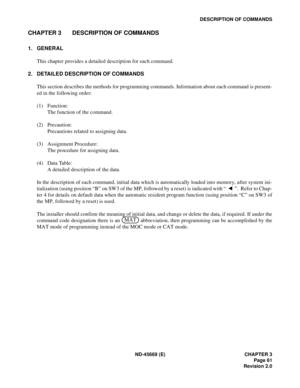

ND-45669 (E) CHAPTER 3
Page 61
Revision 2.0
DESCRIPTION OF COMMANDS
CHAPTER 3 DESCRIPTION OF COMMANDS
1. GENERAL
This chapter provides a detailed description for each command.
2. DETAILED DESCRIPTION OF COMMANDS
This section describes the methods for programming commands. Information about each command is present-
ed in the following order:
(1) Function:
The function of the command.
(2) Precaution:
Precautions related to assigning data.
(3) Assignment Procedure:
The procedure for assigning data.
(4) Data...

CHAPTER 3 ND-45669 (E)
Page 62 Addendum-002
Revision 2.2 JANUARY, 1999
CM00
COMMAND CODE
TITLE:
SYSTEM DATA MEMORY ALL CLEAR
00
[CM00] System Data Memory All Clear
4. DATA TABLE:
1. FUNCTION:
This command confirms that the system data memory (RAM) area can be Written-in /Read-out and also
assigns the Initial Data to the RAM area.
2. PRECAUTION:
(1) This command can only be used in off-line mode.
(2) When this command is executed, “OK” displays with Memory Clear completed (about 30 seconds
later).
(3) If...

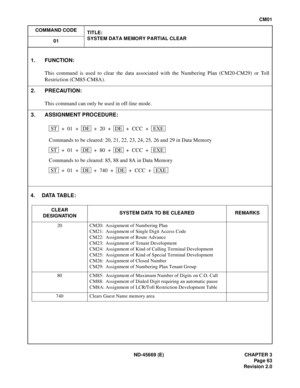

ND-45669 (E) CHAPTER 3
Pag e 63
Revision 2.0
CM01
COMMAND CODE
TITLE:
SYSTEM DATA MEMORY PARTIAL CLEAR
01
4. DATA TABLE:
1. FUNCTION:
This command is used to clear the data associated with the Numbering Plan (CM20-CM29) or Toll
Restriction (CM85-CM8A).
2. PRECAUTION:
This command can only be used in off-line mode.
3. ASSIGNMENT PROCEDURE:
CLEAR
DESIGNATIONSYSTEM DATA TO BE CLEARED REMARKS
20 CM20: Assignment of Numbering Plan
CM21: Assignment of Single Digit Access Code
CM22: Assignment of Route Advance...
