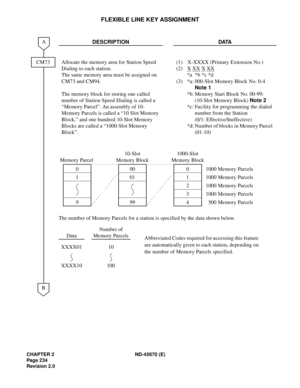

FLEXIBLE LINE KEY ASSIGNMENT
DESCRIPTION DATA
Allocate the memory area for Station Speed
Dialing to each station.
The same memory area must be assigned on
CM73 and CM94.
The memory block for storing one called
number of Station Speed Dialing is called a
“Memory Parcel”. An assembly of 10-
Memory Parcels is called a “10 Slot Memory
Block,” and one hundred 10-Slot Memory
Blocks are called a “1000-Slot Memory
Block”.(1) X-XXXX (Primary Extension No.)...

ND-45670 (E) CHAPTER 2
Page 235
Revision 2.0

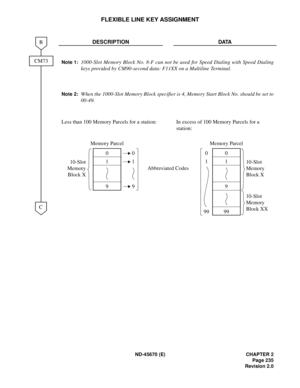

FLEXIBLE LINE KEY ASSIGNMENT
DESCRIPTION DATA
Note 1:1000-Slot Memory Block No. 8-F can not be used for Speed Dialing with Speed Dialing
keys provided by CM90-second data: F11XX on a Multiline Terminal.
Note 2:When the 1000-Slot Memory Block specifier is 4, Memory Start Block No. should be set to
00-49.
Less than 100 Memory Parcels for a station: In excess of 100 Memory Parcels for a
station:
C
B
CM73
0
9 1 Memory Parcel
10-Slot
Memory
Block X
Memory Parcel...

CHAPTER 2 ND-45670 (E)
Pag e 2 36
Revision 2.0

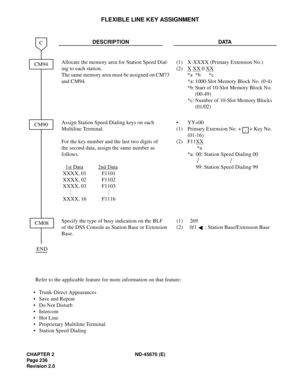

FLEXIBLE LINE KEY ASSIGNMENT
Refer to the applicable feature for more information on that feature:
• Trunk-Direct Appearances
• Save and Repeat
• Do Not Disturb
• Intercom
• Hot Line
•  Proprietary Multiline Terminal
• Station Speed DialingDESCRIPTION DATA
Allocate the memory area for Station Speed Dial-
ing to each station.
The same memory area must be assigned on CM73
and CM94.(1) X-XXXX (Primary Extension No.)
(2) X
 XX 0 XX
*a *b  *c
*a:...

ND-45670 (E) CHAPTER 2
Page 237
Revision 2.0

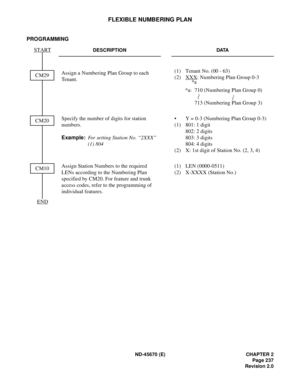

FLEXIBLE NUMBERING PLAN
PROGRAMMING
DESCRIPTION DATA
Assign a Numbering Plan Group to each
Tenant. (1)  Tenant No. (00 - 63)
(2) XXX: Numbering Plan Group 0-3
*a:  710 (Numbering Plan Group 0)
713 (Numbering Plan Group 3)
Specify the number of digits for station
numbers.
Example:
  For setting Station No. “2XXX”
(1) 804 •  Y = 0-3 (Numbering Plan Group 0-3)
(1) 801: 1 digit
802: 2 digits
803: 3 digits
804: 4 digits
(2)  X: 1st digit of Station No....

CHAPTER 2 ND-45670 (E)
Pag e 2 38
Revision 2.0

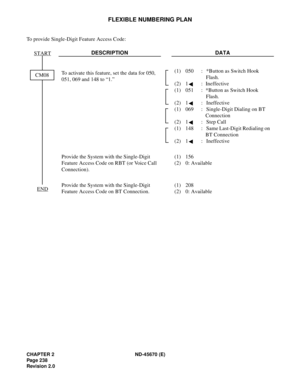

FLEXIBLE NUMBERING PLAN
To provide Single-Digit Feature Access Code:
DESCRIPTION DATA
To activate this feature, set the data for 050,
051, 069 and 148 to “1.” (1)  050 : *Button as Switch Hook
Flash.
(2) 1 : Ineffective
(1)  051 : *Button as Switch Hook
Flash.
(2) 1 : Ineffective
(1)  069 : Single-Digit Dialing on BT
Connection
(2)  1 : Step Call
(1)  148 : Same Last-Digit Redialing on
BT Connection
(2) 1 : Ineffective
Provide the System with the...

ND-45670 (E) CHAPTER 2
Page 239
Revision 2.0

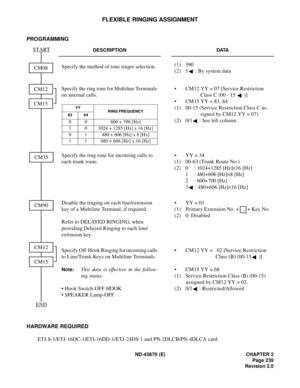

FLEXIBLE RINGING ASSIGNMENT
PROGRAMMING
HARDWARE REQUIRED

ETJ-8-1/ETJ-16DC-1/ETJ-16DD-1/ETJ-24DS-1 and PN-2DLCB/PN-4DLCA card.
DESCRIPTION DATA
Specify the method of tone ringer selection.(1) 390
(2)  1 : By system data
Specify the ring tone for Multiline Terminals
on internal calls. •  CM12 YY = 07 [Service Restriction
Class C (00 - 15  )]
•  CM15 YY = 83, 84
(1)  00-15 (Service Restriction Class C as-
signed by CM12 YY = 07)
(2)  0/1 : See left...

CHAPTER 2 ND-45670 (E)
Pag e 2 40
Revision 2.0

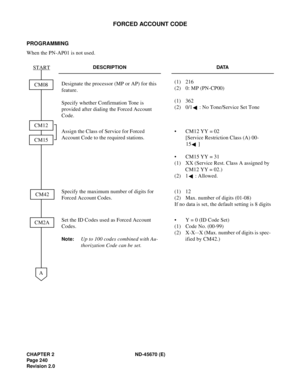

FORCED ACCOUNT CODE
PROGRAMMING
When the PN-AP01 is not used.
DESCRIPTION DATA
Designate the processor (MP or AP) for this
feature.
Specify whether Confirmation Tone is
provided after dialing the Forced Account
Code.(1) 216
(2)  0: MP (PN-CP00)
(1) 362
(2)  0/1 : No Tone/Service Set Tone
Assign the Class of Service for Forced
Account Code to the required stations.• CM12 YY = 02
[Service Restriction Class (A) 00-
15 ]
• CM15 YY = 31
(1)  XX (Service...

ND-45670 (E) CHAPTER 2
Page 241
Revision 2.0

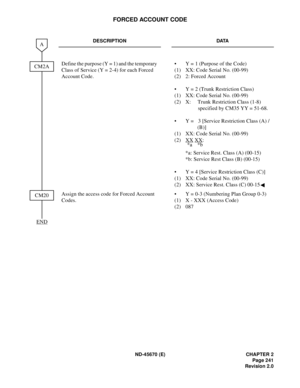

FORCED ACCOUNT CODE
DESCRIPTION DATA
Define the purpose (Y = 1) and the temporary
Class of Service (Y = 2-4) for each Forced
Account Code.•  Y = 1 (Purpose of the Code)
(1)  XX: Code Serial No. (00-99)
(2) 2: Forced Account
•  Y = 2 (Trunk Restriction Class)
(1)  XX: Code Serial No. (00-99)
(2)  X: Trunk Restriction Class (1-8)
specified by CM35 YY = 51-68.
•  Y = 3 [Service Restriction Class (A) /
(B)]
(1)  XX: Code Serial No. (00-99)
(2) XX
 XX:...

CHAPTER 2 ND-45670 (E)
Pag e 2 42
Revision 2.0
FORCED ACCOUNT CODE

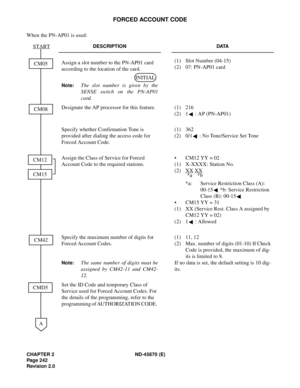

When the PN-AP01 is used:
DESCRIPTION DATA
Assign a slot number to the PN-AP01 card
according to the location of the card.
Note:The slot number is given by the
SENSE switch on the PN-AP01
card. (1) Slot Number (04-15)
(2) 07: PN-AP01 card
Designate the AP processor for this feature. (1) 216
(2) 1 : AP (PN-AP01)
Specify whether Confirmation Tone is
provided after dialing the access code for
Forced Account Code.(1) 362
(2) 0/1 : No...

ND-45670 (E) CHAPTER 2
Page 243
Revision 2.0

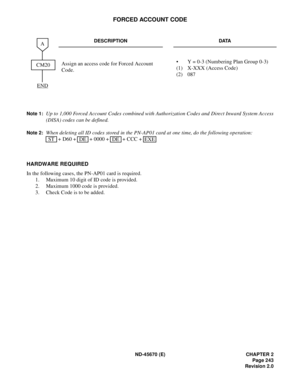

FORCED ACCOUNT CODE
Note 1:Up to 1,000 Forced Account Codes combined with Authorization Codes and Direct Inward System Access
(DISA) codes can be defined.
Note 2:When deleting all ID codes stored in the PN-AP01 card at one time, do the following operation:
 + D60 +  + 0000 +  + CCC +
HARDWARE REQUIRED
In the following cases, the PN-AP01 card is required.
1. Maximum 10 digit of ID code is provided.
2. Maximum 1000 code is provided.
3. Check Code is to be...
