NEC Neax2000 Ivs Feature Programming Manual

CHAPTER 2 ND-45670 (E)
Pag e 3 92
Revision 2.0
TIMED REMINDER
PROGRAMMING

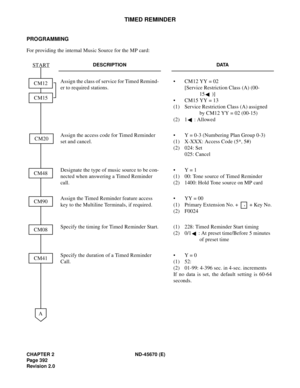

For providing the internal Music Source for the MP card:
DESCRIPTION DATA
Assign the class of service for Timed Remind-
er to required stations.•  CM12 YY = 02
[Service Restriction Class (A) (00-
15 )]
• CM15 YY = 13
(1) Service Restriction Class (A) assigned
by CM12 YY = 02 (00-15)
(2) 1 : Allowed
Assign the access code for Timed Reminder
set and cancel.• Y = 0-3 (Numbering Plan Group 0-3)
(1) X-XXX: Access Code (5*, 5#)
(2)...

ND-45670 (E) CHAPTER 2
Page 393
Revision 2.0
TIMED REMINDER

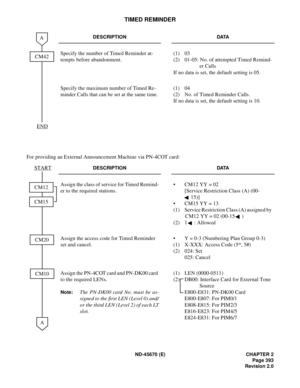

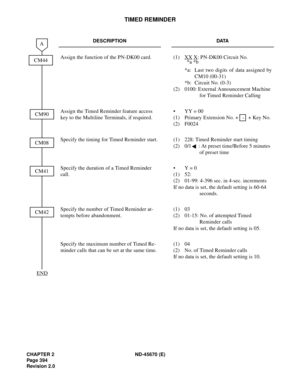

For providing an External Announcement Machine via PN-4COT card:
DESCRIPTION DATA
Specify the number of Timed Reminder at-
tempts before abandonment. (1) 03
(2) 01-05: No. of attempted Timed Remind-
er Calls
If no data is set, the default setting is 05.
Specify the maximum number of Timed Re-
minder Calls that can be set at the same time.(1) 04
(2) No. of Timed Reminder Calls.
If no data is set, the default setting is 10.
DESCRIPTION DATA...

CHAPTER 2 ND-45670 (E)
Pag e 3 94
Revision 2.0
TIMED REMINDER
DESCRIPTION DATA
Assign the function of the PN-DK00 card. (1) XX X: PN-DK00 Circuit No.

*a: Last two digits of data assigned by
CM10 (00-31)
*b: Circuit No. (0-3)
(2) 0100: External Announcement Machine
for Timed Reminder Calling
Assign the Timed Reminder feature access
key to the Multiline Terminals, if required. • YY = 00
(1)  Primary Extension No. +   + Key No.
(2) F0024
Specify the timing for Timed Reminder start. (1) 228: Timed...

ND-45670 (E) CHAPTER 2
Page 395
Revision 2.0
TIMED REMINDER

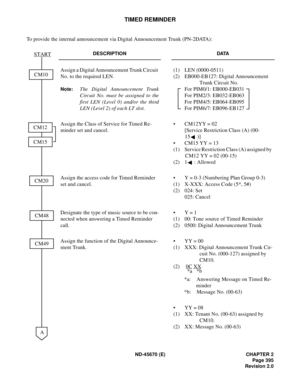

To provide the internal announcement via Digital Announcement Trunk (PN-2DATA):
DESCRIPTION DATA
Assign a Digital Announcement Trunk Circuit
No. to the required LEN.
Note:The Digital Announcement Trunk
Circuit No. must be assigned to the
first LEN (Level 0) and/or the third
LEN (Level 2) of each LT slot.(1) LEN (0000-0511)
(2) EB000-EB127: Digital Announcement
Trunk Circuit No.
For PIM0/1: EB000-EB031
For PIM2/3: EB032-EB063
For PIM4/5:...

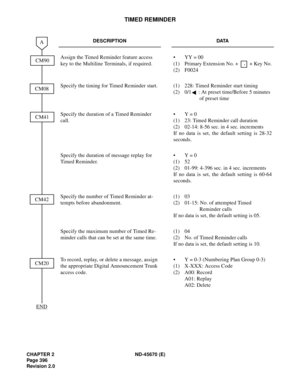

CHAPTER 2 ND-45670 (E)
Pag e 3 96
Revision 2.0
TIMED REMINDER
DESCRIPTION DATA
Assign the Timed Reminder feature access
key to the Multiline Terminals, if required. • YY = 00
(1) Primary Extension No. +     + Key No.
(2) F0024
Specify the timing for Timed Reminder start. (1) 228: Timed Reminder start timing
(2) 0/1 : At preset time/Before 5 minutes
of preset time
Specify the duration of a Timed Reminder
call.•Y = 0
(1) 23: Timed Reminder call duration
(2) 02-14: 8-56 sec. in 4 sec. increments
If no...

ND-45670 (E) CHAPTER 2
Page 397
Revision 2.0
TIMED REMINDER

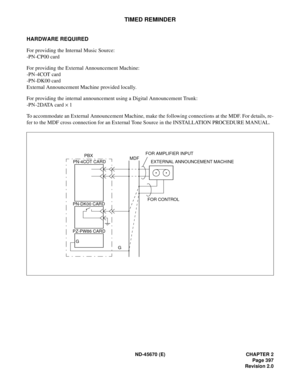

HARDWARE REQUIRED
For providing the Internal Music Source:
-PN-CP00 card
For providing the External Announcement Machine:
-PN-4COT card
-PN-DK00 card
External Announcement Machine provided locally.
For providing the internal announcement using a Digital Announcement Trunk:
-PN-2DATA card ´ 1
To accommodate an External Announcement Machine, make the following connections at the MDF. For details, re-
fer to the MDF cross connection for an...

CHAPTER 2 ND-45670 (E)
Page 398 Addendum-002
Revision 2.2 JANUARY, 1999
TRUNK-DIRECT APPEARANCES
PROGRAMMING
DESCRIPTION DATA
Assign the terminating system for required
C.O. Trunks to Trunk-Direct Appearances. • YY=02
(1) 000-255 (Trunk No.)
(2) 02: Trunk-Direct Appearance
Provide the Trunk-Direct Appearances fea-
ture to the required C.O. trunk assigned by
YY=02. • YY=18
(1) 000-255 (Trunk No.)
(2) 0: To be provided
Assign the Trunk-Direct Appearances key to
each Multiline Terminal, as required.•...

ND-45670 (E) CHAPTER 2
Page 399
Revision 2.0
TRUNK-DIRECT APPEARANCES

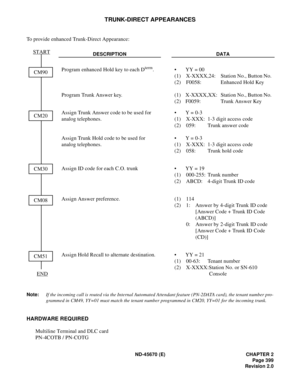

To provide enhanced Trunk-Direct Appearance:
Note:If the incoming call is routed via the Internal Automated Attendant feature (PN-2DATA card), the tenant number pro-
grammed in CM49, YY=01 must match the tenant number programmed in CM20, YY=01 for the incoming trunk.
HARDWARE REQUIRED
Multiline Terminal and DLC card
PN-4COTB / PN-COTG
DESCRIPTION DATA
Program enhanced Hold key to each Dterm.
Program Trunk Answer key.• YY = 00
(1)...

CHAPTER 2 ND-45670 (E)
Pag e 4 00
Revision 2.0
TRUNK-DIRECT APPEARANCES

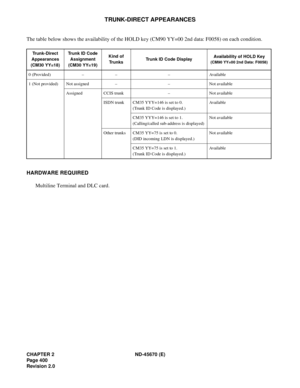

The table below shows the availability of the HOLD key (CM90 YY=00 2nd data: F0058) on each condition.
HARDWARE REQUIRED
Multiline Terminal and DLC card.
Trunk-Direct
Appearances
(CM30 YY=18)Trunk ID Code
Assignment
(CM30 YY=19)Kind of
TrunksTrunk ID Code DisplayAvailability of HOLD Key
(CM90 YY=00 2nd Data: F0058)
0 (Provided) – – – Available
1 (Not provided) Not assigned – – Not available
Assigned CCIS trunk – Not available
ISDN...

ND-45670 (E) CHAPTER 2
Page 401
Revision 2.0

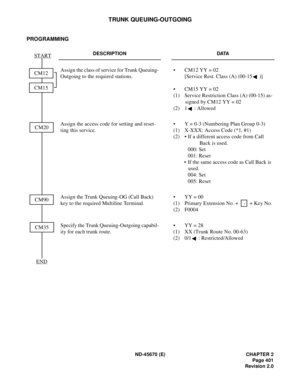

TRUNK QUEUING-OUTGOING
PROGRAMMING
DESCRIPTION DATA
Assign the class of service for Trunk Queuing-
Outgoing to the required stations.• CM12 YY = 02
[Service Rest. Class (A) (00-15 )]
• CM15 YY = 02
(1) Service Restriction Class (A) (00-15) as-
signed by CM12 YY = 02
(2) 1 : Allowed
Assign the access code for setting and reset-
ting this service.• Y = 0-3 (Numbering Plan Group 0-3)
(1) X-XXX: Access Code (*1, #1)
(2) • If a different access code from Call...
