NEC Neax2000 Ivs Feature Programming Manual

CHAPTER 2 ND-45670 (E)
Pag e 4 4
Revision 2.0
ATTENDANT CONSOLE (SN610): ATTENDANT CALLED/CALLING NAME DISPLAY

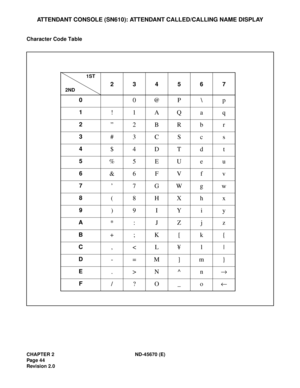

Character Code Table
234567
0
0@P \ p
1!1AQaq
2”2BRb r
3#3CSc s
4$4DTd t
5%5 EU e u
6&6 FV f v
7’7GWgw
8(8HXhx
9)9IYiy
A*: JZjz
B+;K[k{
C,N^n®
F/?O_o¬
1ST
2ND

ND-45670 (E) CHAPTER 2
Page 45
Revision 2.0
ATTENDANT CONSOLE (SN610): ATTENDANT CALL SELECTION
PROGRAMMING
DESCRIPTION DATA
Specify the ATT call Selection key to which
incoming calls from each trunk route
terminate.• YY = 15
(1) Trunk Route No. (00-15)
(2) ATT Call Selection Key:
00-07:  C.O. Incoming Call 0-7
10-17:  FX Incoming Call 0-7
20-27:  WATS Incoming Call 0-7
30-37:  CCSA Incoming Call 0-7
40-47:  Tie Line Incoming Call 0-7
Assign the ATT Call Selection Keys required.
The following...

CHAPTER 2 ND-45670 (E)
Pag e 4 6
Revision 2.0

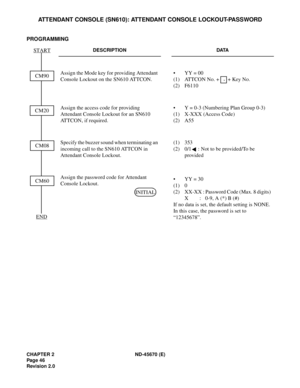

ATTENDANT CONSOLE (SN610): ATTENDANT CONSOLE LOCKOUT-PASSWORD
PROGRAMMING
DESCRIPTION DATA
Assign the Mode key for providing Attendant
Console Lockout on the SN610 ATTCON.• YY = 00
(1) ATTCON No. +   + Key No.
(2) F6110
Assign the access code for providing
Attendant Console Lockout for an SN610
ATTCON, if required.• Y = 0-3 (Numbering Plan Group 0-3)
(1) X-XXX (Access Code)
(2) A55
Specify the buzzer sound when terminating an
incoming call to the...

ND-45670 (E) CHAPTER 2
Page 47
Revision 2.0

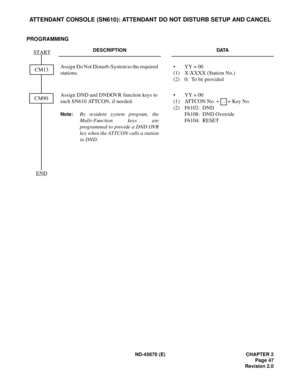

ATTENDANT CONSOLE (SN610): ATTENDANT DO NOT DISTURB SETUP AND CANCEL
PROGRAMMING
DESCRIPTION DATA
Assign Do Not Disturb-System to the required
stations.• YY = 00
(1) X-XXXX (Station No.)
(2) 0:  To be provided
Assign DND and DNDOVR function keys to
each SN610 ATTCON, if needed.
Note:By resident system program, the
Multi-Function keys are
programmed to provide a DND OVR
key when the ATTCON calls a station
in DND. • YY = 00
(1) ATTCON No. +   + Key No.
(2)...

CHAPTER 2 ND-45670 (E)
Pag e 4 8
Revision 2.0

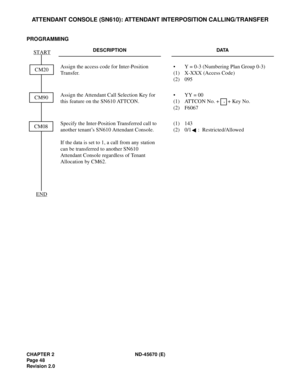

ATTENDANT CONSOLE (SN610): ATTENDANT INTERPOSITION CALLING/TRANSFER
PROGRAMMING
DESCRIPTION DATA
Assign the access code for Inter-Position
Transfer. • Y = 0-3 (Numbering Plan Group 0-3)
(1) X-XXX (Access Code)
(2) 095
Assign the Attendant Call Selection Key for
this feature on the SN610 ATTCON. • YY = 00
(1) ATTCON No. +   + Key No.
(2) F6067
Specify the Inter-Position Transferred call to
another tenant’s SN610 Attendant Console.
If the data is set to...

ND-45670 (E) CHAPTER 2
Page 49
Revision 2.0

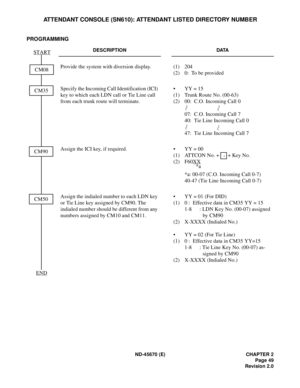

ATTENDANT CONSOLE (SN610): ATTENDANT LISTED DIRECTORY NUMBER
PROGRAMMING
DESCRIPTION DATA
Provide the system with diversion display. (1) 204
(2) 0:  To be provided
Specify the Incoming Call Identification (ICI)
key to which each LDN call or Tie Line call
from each trunk route will terminate.• YY = 15
(1) Trunk Route No. (00-63)
(2) 00:  C.O. Incoming Call 0
07:  C.O. Incoming Call 7
40:  Tie Line Incoming Call 0
47:  Tie Line Incoming Call 7
Assign the...

CHAPTER 2 ND-45670 (E)
Pag e 5 0
Revision 2.0
ATTENDANT CONSOLE (SN610): ATTENDANT LISTED DIRECTORY NUMBER

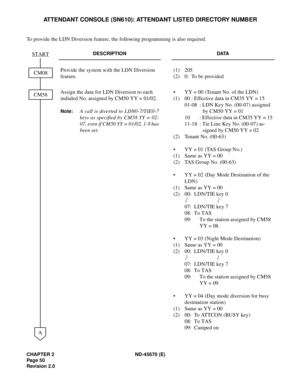

To provide the LDN Diversion feature, the following programming is also required.
DESCRIPTION DATA
Provide the system with the LDN Diversion
feature.(1) 205
(2) 0:  To be provided
Assign the data for LDN Diversion to each
indialed No. assigned by CM50 YY = 01/02.
Note:A call is diverted to LDN0-7/TIE0-7
keys as specified by CM58 YY = 02-
07, even if CM50 YY = 01/02, 1-8 has
been set.• YY = 00...

ND-45670 (E) CHAPTER 2
Page 51
Revision 2.0

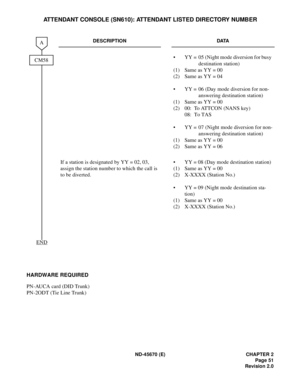

ATTENDANT CONSOLE (SN610): ATTENDANT LISTED DIRECTORY NUMBER
HARDWARE REQUIRED
PN-AUCA card (DID Trunk)
PN-2ODT (Tie Line Trunk)
DESCRIPTION DATA
• YY = 05 (Night mode diversion for busy
destination station)
(1) Same as YY = 00
(2) Same as YY = 04
• YY = 06 (Day mode diversion for non-
answering destination station)
(1) Same as YY = 00
(2) 00:  To ATTCON (NANS key)
08:  To TAS
• YY = 07 (Night mode diversion for non-
answering destination station)
(1)...

CHAPTER 2 ND-45670 (E)
Pag e 5 2
Revision 2.0

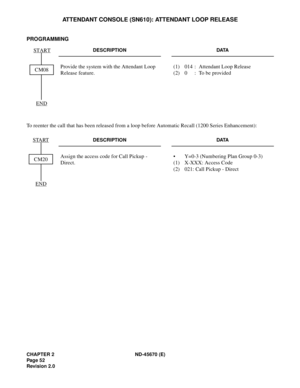

ATTENDANT CONSOLE (SN610): ATTENDANT LOOP RELEASE
PROGRAMMING
To reenter the call that has been released from a loop before Automatic Recall (1200 Series Enhancement):
DESCRIPTION DATA
Provide the system with the Attendant Loop
Release feature. (1) 014 : Attendant Loop Release
(2) 0 : To be provided
DESCRIPTION DATA
Assign the access code for Call Pickup -
Direct.• Y=0-3 (Numbering Plan Group 0-3)
(1) X-XXX: Access Code
(2) 021: Call Pickup - Direct
END...

ND-45670 (E) CHAPTER 2
Page 53
Revision 2.0
ATTENDANT CONSOLE (SN610): ATTENDANT PROGRAMMING
PROGRAMMING
DESCRIPTION DATA
Assign the password code for Attendant
Programming. • YY = 30
(1) 1
(2) XX-XX : Password Code (Max. 8 digits)
X : 0-9, A (*), B(#)
If no data is set, the default setting is NONE.
In this case, the password is set to
“12345678”.
Assign the program (PROG) key for providing
Attendant Programming on the SN610
ATTCON.• YY = 00
(1) ATTCON No. +   + Key No.
(2) F6111
Assign the...
