NEC Projector Vt45 User Manual

E–23
SOURCE
AUTO ADJUST
ON STAND BY STATUS
POWEREMNUCNACELTERNESELECT
VID
E
O
IN
RGB  OUT
S-VID
EO
IN
RGB  IN
R
  IN L/M
ON
O
IN
IN O
UT
AUDIO
CONTROLPC
RL
RL
YCb
Cr
RGB IN
Red
BlueGreen
Red
Red
Red
White
Red White
Blue
BlueGreen
Green

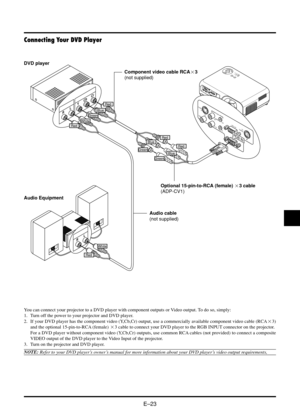

You can connect your projector to a DVD player with component outputs or Video output. To do so, simply:
1. Turn off the power to your projector and DVD player.
2. If your DVD player has the component video (Y,Cb,Cr) output, use a commercially available component video...

E–24
SOURCE
AUTO ADJUST
ON STAND BY STATUS
POWEREMNUCNACELTERNESELECT
VIDEO
IN
RGB  OUT
S-VIDEO
IN
RGB  IN
R  IN L / MONO
IN
IN OUT
AUDIO
C
O
N
T
R
O
LPC
RL
RL
VIDEO
VIDEO
S-VIDEO
AUDIO L IN
AUDIO R IN
White
Red
White
Red
White
Red

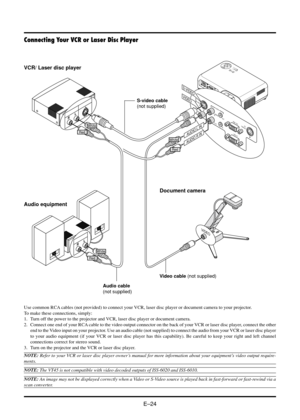

Use common RCA cables (not provided) to connect your VCR, laser disc player or document camera to your projector.
To make these connections, simply:
1. Turn off the power to the projector and VCR, laser disc player or document camera.
2. Connect one end of your RCA cable to...

E–25

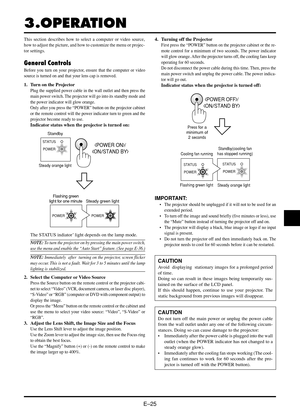

3.OPERATION
This section describes how to select a computer or video source,
how to adjust the picture, and how to customize the menu or projec-
tor settings.
General Controls
Before you turn on your projector, ensure that the computer or video
source is turned on and that your lens cap is removed.
1. Turn on the Projector
Plug the supplied power cable in the wall outlet and then press the
main power switch. The projector will go into its standby mode and
the power indicator will glow orange.
Only...

E–26

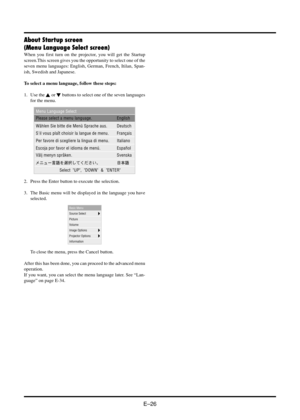

About Startup screen
(Menu Language Select screen)
When you first turn on the projector, you will get the Startup
screen.This screen gives you the opportunity to select one of the
seven menu languages: English, German, French, Itilan, Span-
ish, Swedish and Japanese.
To select a menu language, follow these steps:
1. Use the
 or  buttons to select one of the seven languages
for the menu.
2. Press the Enter button to execute the selection.
3. The Basic menu will be displayed in the language you have...

E–27

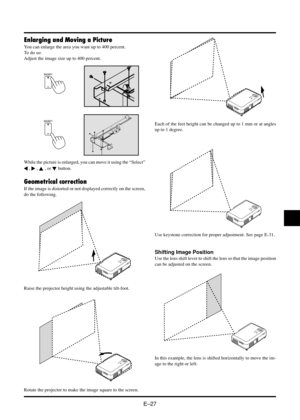

Enlarging and Moving a Picture
You can enlarge the area you want up to 400 percent.
To do so:
Adjust the image size up to 400 percent.
Geometrical correction
If the image is distorted or not displayed correctly on the screen,
do the following.
Raise the projector height using the adjustable tilt-foot.
Each of the feet height can be changed up to 1 mm or at angles
up to 1 degree.
Use keystone correction for proper adjustment. See page E-31.
Shifting Image Position
Use the lens shift lever to shift...

E–28

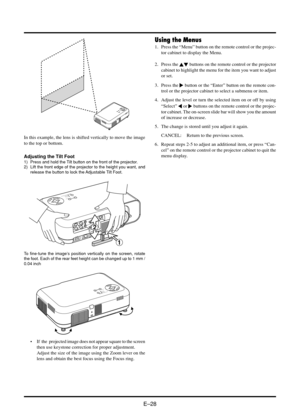

Using the Menus
1. Press the “Menu” button on the remote control or the projec-
tor cabinet to display the Menu.
2. Press the
 buttons on the remote control or the projector
cabinet to highlight the menu for the item you want to adjust
or set.
3. Press the
 button or the “Enter” button on the remote con-
trol or the projector cabinet to select a submenu or item.
4. Adjust the level or turn the selected item on or off by using
“Select”
 or  buttons on the remote control or the projec-
tor cabinet....

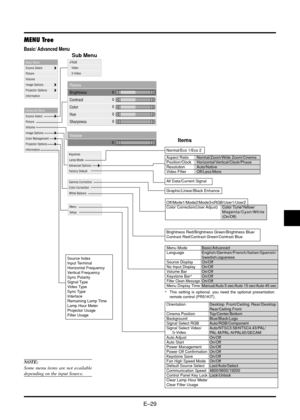

E–29
Basic/ Advanced Menu
Sub Menu
MENU Tree
NOTE:
Some menu items are not available
depending on the input Source.
Advanced Menu
Source Select
Volume
Image Options
Color Management
Projector Options
Information
(Toutes)
Basic Menu
Source Select
Volume
Image Options
Projector Options
Information
Normal/Eco 1/Eco 2
Aspect Ratio Normal/Zoom/Wide Zoom/CinemaPosition/Clock Horizontal/Vertical/Clock/PhaseResolution Auto/NativeVideo Filter Off/Less/More
All Data/Current Signal...

E–30
Setup
Page1 Page2 Page3 Page4
Orientation Desktop Front
To p
Cinema PositionLogoBackground

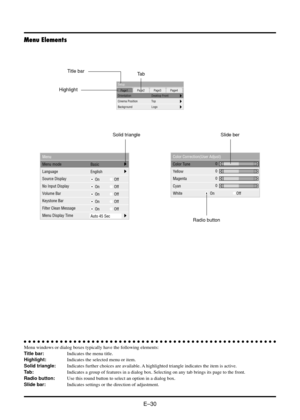

Menu Elements
Title barTa b
Highlight
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Menu windows or dialog boxes typically have the following elements:
Title bar:Indicates the menu title.
Highlight:Indicates the selected menu or item.
Solid triangle:Indicates further choices are available. A highlighted triangle indicates the item is active.
Tab:Indicates a group of features in a dialog box....

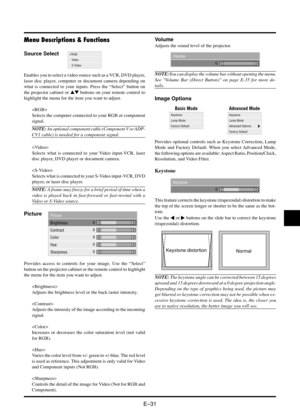

E–31
Menu Descriptions & Functions
RGB
Video
S-VideoVolume
0
Source Select
Brightness
Contrast
Color
Hue
Sharpness
0
0
0
0 0
Enables you to select a video source such as a VCR, DVD player,
laser disc player, computer or document camera depending on
what is connected to your inputs. Press the “Select” button on
the projector cabinet or
 buttons on your remote control to
highlight the menu for the item you want to adjust.

Selects the computer connected to your RGB or component
signal.
NOTE: An...

E–32

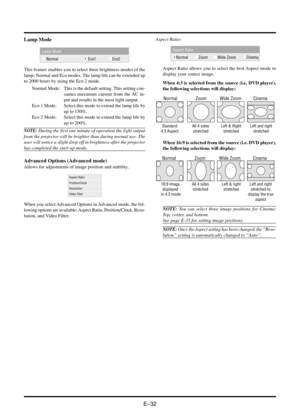

Lamp Mode
Lamp Mode
Normal Eco1 Eco2
This feature enables you to select three brightness modes of the
lamp: Normal and Eco modes. The lamp life can be extended up
to 2000 hours by using the Eco 2 mode.
Normal Mode: This is the default setting. This setting con-
sumes maximum current from the AC in-
put and results in the most light output.
Eco 1 Mode: Select this mode to extend the lamp life by
up to 150%.
Eco 2 Mode: Select this mode to extend the lamp life by
up to 200%.
NOTE: During the first one...
