Sentry Installation Guide Executive Override

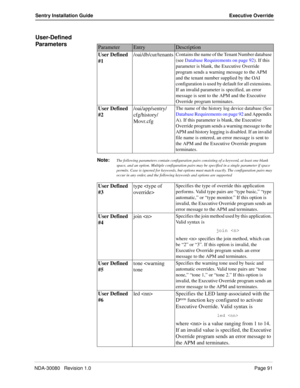

User-Defined
Parameters
Note:The following parameters contain configuration pairs consisting of a keyword, at least one blank
space, and an option. Multiple configuration pairs may be specified in a single parameter if space
permits. Case is ignored for keywords, but options must match exactly. The configuration pairs may
occur in any order, and the following keywords and options are supported
ParameterEntryDescription
User...

Page 92NDA-30080   Revision 1.0
Executive Override Sentry Installation Guide

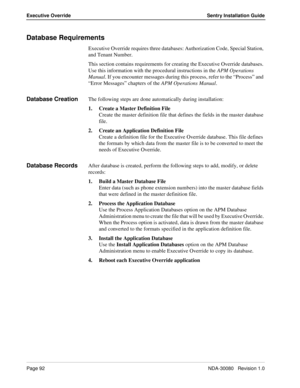

Database Requirements
Executive Override requires three databases: Authorization Code, Special Station,
and Tenant Number.
This section contains requirements for creating the Executive Override databases.
Use this information with the procedural instructions in the APM Operations
Manual. If you encounter messages during this process, refer to the “Process” and
“Error Messages” chapters of the APM Operations Manual.
Database...

NDA-30080   Revision 1.0Page 93
Sentry Installation Guide Executive Override

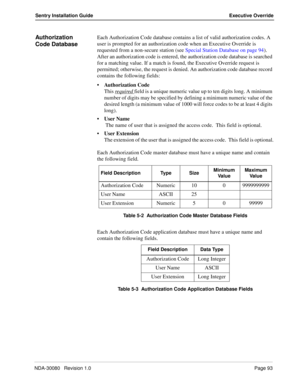

Authorization
Code DatabaseEach Authorization Code database contains a list of valid authorization codes. A
user is prompted for an authorization code when an Executive Override is
requested from a non-secure station (see Special Station Database on page 94).
After an authorization code is entered, the authorization code database is searched
for a matching value. If a match is found, the Executive Override request is...

Page 94NDA-30080   Revision 1.0
Executive Override Sentry Installation Guide

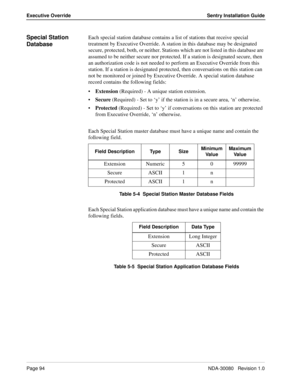

Special Station
DatabaseEach special station database contains a list of stations that receive special
treatment by Executive Override. A station in this database may be designated
secure, protected, both, or neither. Stations which are not listed in this database are
assumed to be neither secure nor protected. If a station is designated secure, then
an authorization code is not needed to perform an Executive Override from...

NDA-30080   Revision 1.0Page 95
Sentry Installation Guide Executive Override

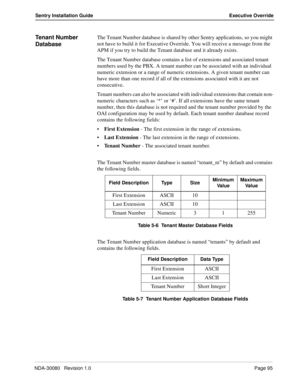

Tenant Number
DatabaseThe Tenant Number database is shared by other Sentry applications, so you might
not have to build it for Executive Override. You will receive a message from the
APM if you try to build the Tenant database and it already exists.
The Tenant Number database contains a list of extensions and associated tenant
numbers used by the PBX. A tenant number can be associated with an individual
numeric extension or...

Page 96NDA-30080   Revision 1.0
Executive Override Sentry Installation Guide

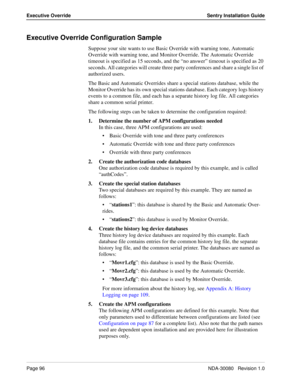

Executive Override Configuration Sample
Suppose your site wants to use Basic Override with warning tone, Automatic
Override with warning tone, and Monitor Override. The Automatic Override
timeout is specified as 15 seconds, and the “no answer” timeout is specified as 20
seconds. All categories will create three party conferences and share a single list of
authorized users.
The Basic and Automatic Overrides share a special...

NDA-30080   Revision 1.0Page 97
Sentry Installation Guide Executive Override

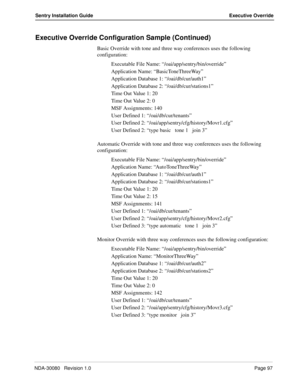

Executive Override Configuration Sample (Continued)
Basic Override with tone and three way conferences uses the following
configuration:
Executable File Name: “/oai/app/sentry/bin/override”
Application Name: “BasicToneThreeWay”
Application Database 1: “/oai/db/cur/auth1”
Application Database 2: “/oai/db/cur/stations1”
Time Out Value 1: 20
Time O ut Value 2: 0
MSF Assignments: 140
User Defined 1: “/oai/db/cur/tenants”
User...

Executive Override Sentry Installation Guide
Page 98NDA-30080   Revision 1.0

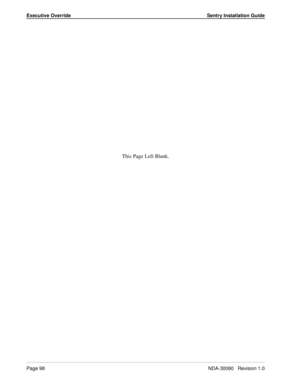

This Page Left Blank.

NDA-30080   Revision 1.0Page 99
Sentry Installation Guide MAT Assignments and PBX Information

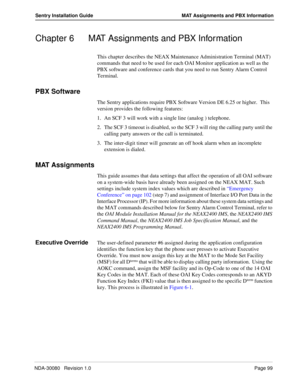

Chapter 6 MAT Assignments and PBX Information
This chapter describes the NEAX Maintenance Administration Terminal (MAT)
commands that need to be used for each OAI Monitor application as well as the
PBX software and conference cards that you need to run Sentry Alarm Control
Terminal.
PBX Software
The Sentry applications require PBX Software Version DE 6.25 or higher.  This
version provides the following...

Page 100NDA-30080   Revision 1.0
MAT Assignments and PBX Information Sentry Installation Guide
Executive Override
(Cont)

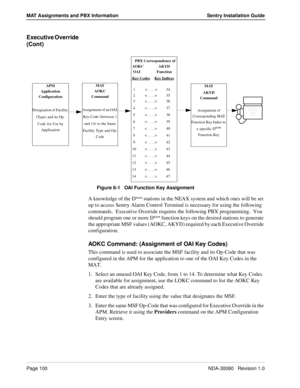

Figure 6-1   OAI Function Key Assignment
A knowledge of the Dterm stations in the NEAX system and which ones will be set
up to access Sentry Alarm Control Terminal is necessary for using the following
commands.  Executive Override requires the following PBX programming.  You
should program one or more D
term function keys on the desired stations to generate
the appropriate MSF...
