Optoma Ex855 Projector Specifications
Here you can view all the pages of manual Optoma Ex855 Projector Specifications. The Optoma manuals for Projector are available online for free. You can easily download all the documents as PDF.

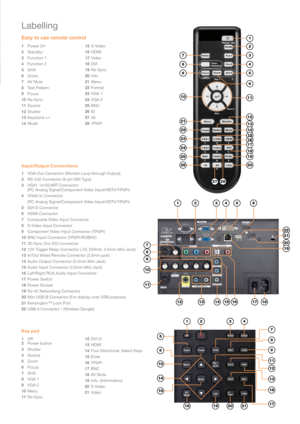

Page 11
Easy to use remote control Input/Output Connections 1 VGA-Out Connector (Monitor Loop-through Output) 2 RS-232 Connector (9-pin DIN Type) 3 VGA1 -In/SCART Connector (PC Analog Signal/Component Video Input/HDTV/YPbPr) 4 VGA2-In Connector (PC Analog Signal/Component Video Input/HDTV/YPbPr) 5 DVI-D Connector 6 HDMI Connector 7 Composite Video Input Connector 8 S-Video Input Connector 9 Component Video Input Connector (YPbPr) 10 BNC Input Connector (YPbPr/RGBHV) 11 3D Sync Out (5V) Connector...

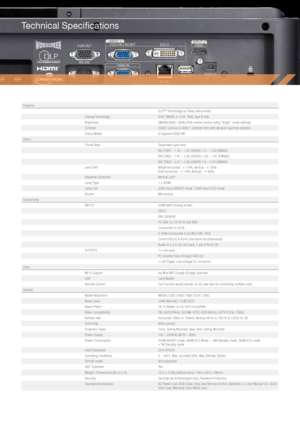

Page 12
Technical Specifications ProjectorDLP™ Technology by Texas Instruments Display Technology 0.65” WXGA, or 0.55" XGA, Type A chip Brightness (WXGA) 6000 / (XGA) 5500 centre lumens using “Bright” mode settings Contrast 2000:1 and up to 4000:1 contrast ratio with dynamic aperture enabled Colour Wheel 6 Segment RGBCYW Optics Throw Ratio Dependent upon lens: BX-CTA01 - 1.25 ~ 1.61 (EX855) 1.0 ~ 1.28 (EW865) BX-CTA02 - 1.61 ~ 2.02 (EX855) 1.28 ~ 1.61 (EW865) BX-CTA03 - 2.01 ~ 3.85 (EX855) 1.6 ~ 3.07...

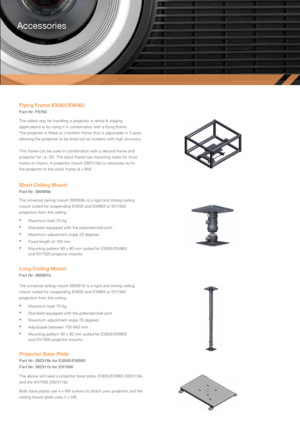

Page 13
Accessories Flying Frame EX855/EW865 Part Nr: P5750 The safest way for handling a projector in rental & staging applications is by using it in combination with a flying frame. The projector is fitted on a bottom frame that is adjustable in 3 axes, allowing the projector to be lined out on screens with high accuracy. This frame can be used in combination with a second frame and projector for i.e. 3D. The stack frame has mounting holes for truss hooks or chains. A projector mount (392315b) is...

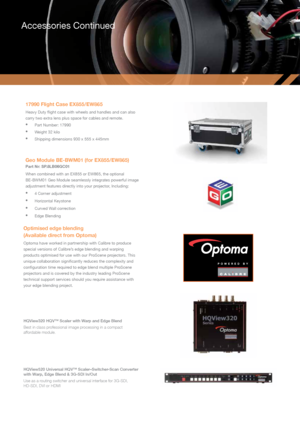

Page 14
Accessories Continued 17990 Flight Case EX855/EW865 Heavy Duty flight case with wheels and handles and can also carry two extra lens plus space for cables and remote. • Part Number: 17990 • Weight 32 kilo • Shipping dimensions 930 x 555 x 445mm Geo Module BE-BWM01 (for EX855/EW865) Part Nr: SP.8LB06GC01 When combined with an EX855 or EW865, the optional BE-BWM01 Geo Module seamlessly integrates powerful image adjustment features directly into your projector, Including: • 4 Corner adjustment •...

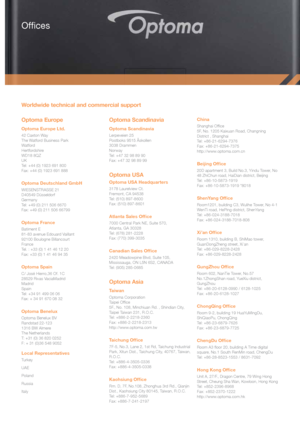

Page 15
Offices Optoma Europe Optoma Europe Ltd. 42 Caxton Way The Watford Business Park Watford Hertfordshire WD18 8QZ UK Tel: +44 (0) 1923 691 800 Fax: +44 (0) 1923 691 888 Optoma Deutschland GmbH WIESENSTRASSE 21 D40549 Düsseldorf Germany Tel: +49 (0) 211 506 6670 Fax: +49 (0) 211 506 66799 Optoma France Batiment E 81-83 avenue Edouard Vaillant 92100 Boulogne Billancourt France Tel. : +33 (0) 1 41 46 12 20 Fax: +33 (0) 1 41 46 94 35 Optoma Spain C/ José Hierro,36 Of. 1C 28529 Rivas VaciaMadrid...
Page 16
Optoma Europe Ltd. 42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ www.optoma.co.uk 1Restrictions may apply, please check the Optoma website for more information. Brightness and lamp lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. Typical lamp life achieved through testing. Will vary according to operational use and environmental...
