11
  ●For , ,  connections,
please refer to p. 13

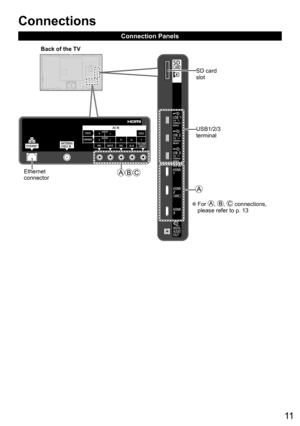

  Connections
Connection Panels
SD card
slot
USB1/2/3
terminal
Ethernet
connectorBack of the TV

12

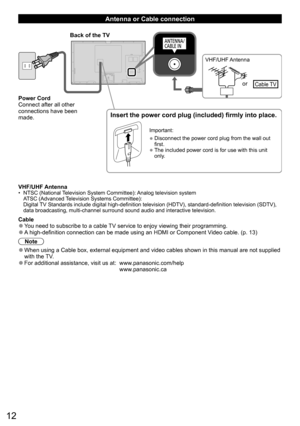

Power Cord
Connect after all other
connections have been
made.Back of the TV
Cable TV
VHF/UHF Antenna
or

Antenna or Cable connection
VHF/UHF Antenna•  NTSC (National Television System Committee): Analog television system
ATSC (Advanced Television Systems Committee):
Digital TV Standards include digital high-definition television (HDTV), standard-definition television (SDTV),
data broadcasting, multi-channel surround sound audio and interactive television.
  Cable  ●You need to subscribe to a...

13

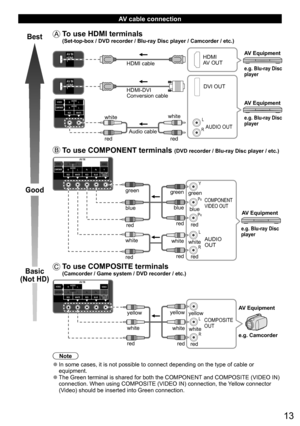

AV cable connection
Best
Good
Basic
(Not HD)
  To use  HDMI terminals (Set-top-box / DVD recorder / Blu-ray Disc player / Camcorder / etc.)
L
R
HDMI
AV OUT
HDMI cable
DVI OUT
AUDIO OUTe.g. Blu-ray Disc
player
e.g. Blu-ray Disc
player
AV Equipment
AV Equipment
Audio cable whitewhite
red redHDMI-DVI
Conversion cable
 To use  COMPONENT terminals (DVD recorder / Blu-ray Disc player / etc.)
L
RY
P
B
PR
AUDIO
OUT
COMPONENT
VIDEO OUT
white
red green
blue
red
e.g. Blu-ray Disc
player
AV Equipment...

14

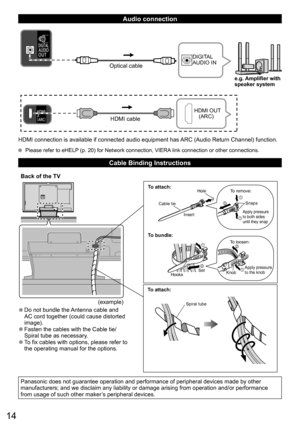

Audio connection
HDMI cable
HDMI OUT
   (ARC)
Optical cable
DIGITAL
AUDIO IN
e.g. Amplifier with
speaker system
HDMI connection is available if connected audio equipment has ARC (Audio Return Channel) function.
  Please refer to eHELP (p. 20) for Network connection, VIERA link connection or other connections.

Cable Binding Instructions
To attach:
Cable tie
InsertTo remove:
Snaps
Apply pressure
to both sides
until they snap
HooksSetTo loosen:
Knob
Apply pressure
to the knob
Hole
To...

15
Built-in Camera
0.8 ”
(20 mm)

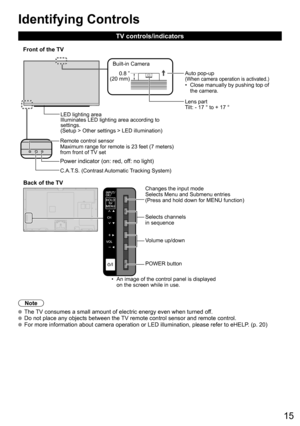

Identifying Controls
TV controls/indicators
Note
  The TV consumes a small amount of electric energy even when turned off.  Do not place any objects between the TV remote control sensor and remote control.  For more information about camera operation or LED illumination, please refer to eHELP. (p. 20)
•  An image of the control panel is displayed
on the screen while in use.
C.A.T.S. (Contrast Automatic Tracking System)
  Power indicator ( on: red, off: no light) Front...

16

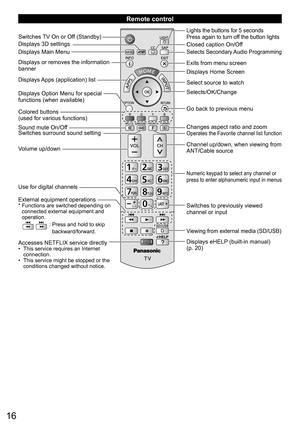

  Remote control
Switches TV On or Off (Standby)
Displays 3D settings
Displays Main Menu
Displays or removes the information
banner
Displays Apps (application) list
Displays Option Menu for special
functions (when available)
  Colored buttons
(used for various functions)
Changes aspect ratio and zoom
  Volume up/down
Use for digital channels
Accesses NETFLIX service directly
•  This service requires an Internet
connection.
•  This service might be stopped or the
conditions changed without...

17

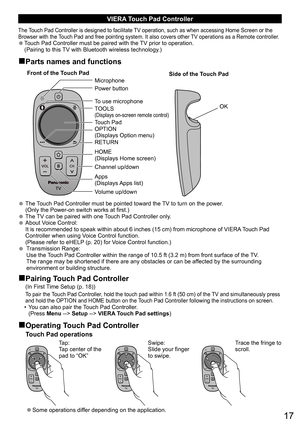

VIERA Touch Pad Controller
The Touch Pad Controller is designed to facilitate TV operation, such as when accessing Home Screen or the
Browser with the Touch Pad and free pointing system. It also covers other TV operations as a Remote controller.
  ●Touch Pad Controller must be paired with the TV prior to operation.
(Pairing to this TV with Bluetooth wireless technology.)
■Parts names and functions
Power button
To use microphone Microphone
TOOLS
(Displays on-screen remote control)Touch Pad
OPTION...

18

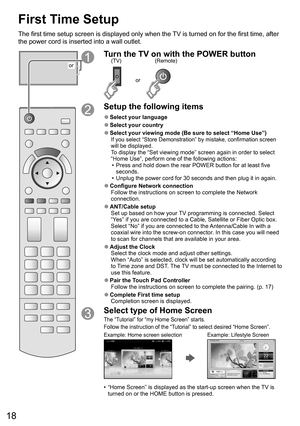

First Time Setup
The first time setup screen is displayed only when the TV is turned on for the first time, after
the power cord is inserted into a wall outlet.
or
Turn the TV on with the POWER button
or
(Remote) (TV)
Setup the following items
  ●Select your language
  ●Select your country
  ●Select your viewing mode (Be sure to select “Home Use”)If you select “Store Demonstration” by mistake, confirmation screen
will be displayed.
To display the “Set viewing mode” screen again in order to select...

19

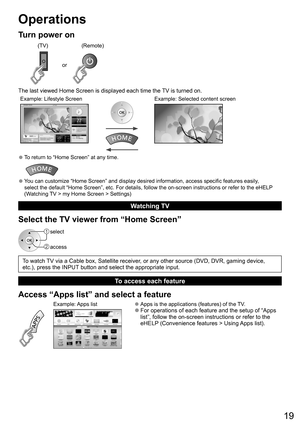

Operations
Turn power on
or
(Remote) (TV)
The last viewed Home Screen is displayed each time the TV is turned on.
Example: Selected content screenExample: Lifestyle Screen
  ●To return to “Home Screen” at any time.
  ●You can customize “Home Screen” and display desired information, access specific features easily,
select the default “Home Screen”, etc. For details, follow the on-screen instructions or refer to the eHELP
(Watching TV > my Home Screen > Settings)
Watching TV
Select the TV viewer...

20

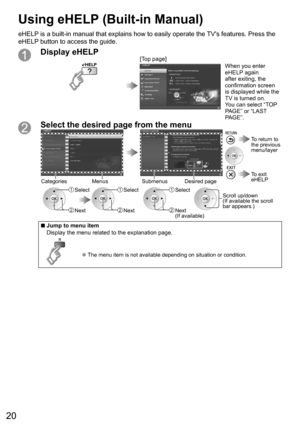

Display eHELP[Top page]When you enter
eHELP again
after exiting, the
confirmation screen
is displayed while the
TV is turned on.
You can select “TOP
PAGE” or “LAST
PAGE”.
Select the desired page from the menu
 Next
 Select
 Next
 Select
 Next
(If available)
Scroll up/down
(If available the scroll
bar appears.)
Submenus Desired pageCategories Menus
 Select
  To exit
eHELP
  To return to
the previous
menu/layer
  ■Jump to menu item
Display the menu related to the explanation page.
  ●The menu...
