Page 11
11 Attaching the pedestal to TV Assembly screws (black)BracketBase (7) (for 50) (12) (for 55/60/65) M5 × 16 Assembly screws (black)Neck (4) (for 50) M4 × 10 Attaching the pedestal 5 3 1 2 4 TC-P50ST60 TC-P55ST60 TC-P60ST60 TC-P65ST60 A A C D E AB(for 55/60/65) (for 50) Removing the pedestal from the TVBe sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV. Remove the assembly screws (for 55/60/65) / (for 50) from the TV. Lift the TV from the...
Page 12

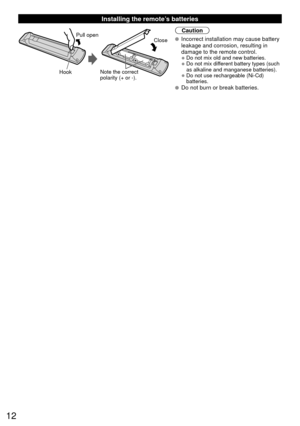

12 Installing the remote’s batteries Pull open Hook Note the correct polarity (+ or -). Close Caution Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control. • Do not mix old and new batteries. • Do not mix different battery types (such as alkaline and manganese batteries). • Do not use rechargeable (Ni-Cd) batteries. Do not burn or break batteries.
Page 13
13 Connections Connection Panels ●For , , connections, please refer to p. 15 SD card slot USB1/2 terminal Ethernet connector Back of the TV
Page 14
14 Power Cord Connect after all other connections have been made.Back of the TV Cable TV VHF/UHF Antenna or Antenna or Cable connection VHF/UHF Antenna• NTSC (National Television System Committee): Analog television system ATSC (Advanced Television Systems Committee): Digital TV Standards include digital high-definition television (HDTV), standa\ rd-definition television (SDTV), data broadcasting, multi-channel surround sound audio and interactive te\ levision. Cable ●You need to subscribe to a...
Page 15
15 AV cable connection Best Good Basic (Not HD) To use HDMI terminals (Set-top-box / DVD recorder / Blu-ray Disc player / Camcorder / etc.) L R HDMI AV OUT HDMI cable DVI OUT AUDIO OUTe.g. Blu-ray Disc player e.g. Blu-ray Disc player AV Equipment AV Equipment Audio cable white white red red HDMI-DVI Conversion cable To use COMPONENT terminals (DVD recorder / Blu-ray Disc player / etc.) L R Y P B PR AUDIO OUT COMPONENT VIDEO OUT white red green bluered e.g. Blu-ray Disc player AV Equipment...
Page 16
16 Audio connection HDMI cable HDMI OUT (ARC) Optical cable DIGITAL AUDIO IN e.g. Amplifier with speaker system HDMI connection is available if connected audio equipment has ARC (Audio Return Channel) function. Please refer to eHELP (p. 21) for Network connection, VIERA link connection or other connections. Cable Binding Instructions To attach: Cable tieHole Insert To remove: Snaps Apply pressure to both sides until they snap Hooks Set To bundle:To loosen: Knob Apply pressure to the knob ●Do...
Page 17
17 Identifying Controls TV controls/indicators Note The TV consumes a small amount of electric energy even when turned off. Do not place any objects between the TV remote control sensor and remote control. • An image of the control panel is displayed on the screen while in use. C.A.T.S. (Contrast Automatic Tracking System) Power indicator ( on: red, off: no light) Front of the TV Remote control sensor Maximum range for remote is 23 feet (7 meters) from front of TV set Back of the TV Volume up/down...
Page 18
18 Remote control Switches TV On or Off (Standby) Displays 3D settings Closed caption On/Off Switches surround sound setting Displays Main Menu Displays or removes the information banner Displays Apps (application) list Displays Option Menu for special functions (when available) Colored buttons (used for various functions) Sound mute On/Off Volume up/down Use for digital channels Accesses NETFLIX service directly • This service requires an Internet connection. • This service might be stopped...
Page 19
19 First Time Setup The first time setup screen is displayed only when the TV is turned on for the first time, after the power cord is inserted into a wall outlet. or Turn the TV on with the POWER button or (Remote) (TV) Setup the following items ●Select your language ●Select your country ●Select your viewing mode (Be sure to select “Home Use”)If you select “Store Demonstration” by mistake, confirmation scree\ n will be displayed. To display the “Set viewing mode” screen again in order to select...
Page 20
20 Operations Turn power on or (Remote) (TV) The last viewed Home Screen is displayed each time the TV is turned on. Example: Selected content screenExample: Lifestyle Screen ●To return to “Home Screen” at any time. ●You can customize “Home Screen” and display desired information, ac\ cess specific features easily, select the default “Home Screen”, etc. For details, follow the on-\ screen instructions or refer to the eHELP (Watching TV > my Home Screen > Settings) Watching TV Select the TV viewer...
